Large Digital Sound Level Display monitor, industrial display monitors
Brand
TECPEL
|
Model
DSL-1410
|
🇹🇼 Taiwan
DSL-1406 noise display board is a large-scale sound level display board .It matched with a noise meter or a noise transmitter which can measure the noise value of the scene and make it easy for the on-site personnel to monitor. It is suitable for environmental monitoring such as hospitals, factories, construction sites, and noise management.
Out of Stock
Views: 0
Description

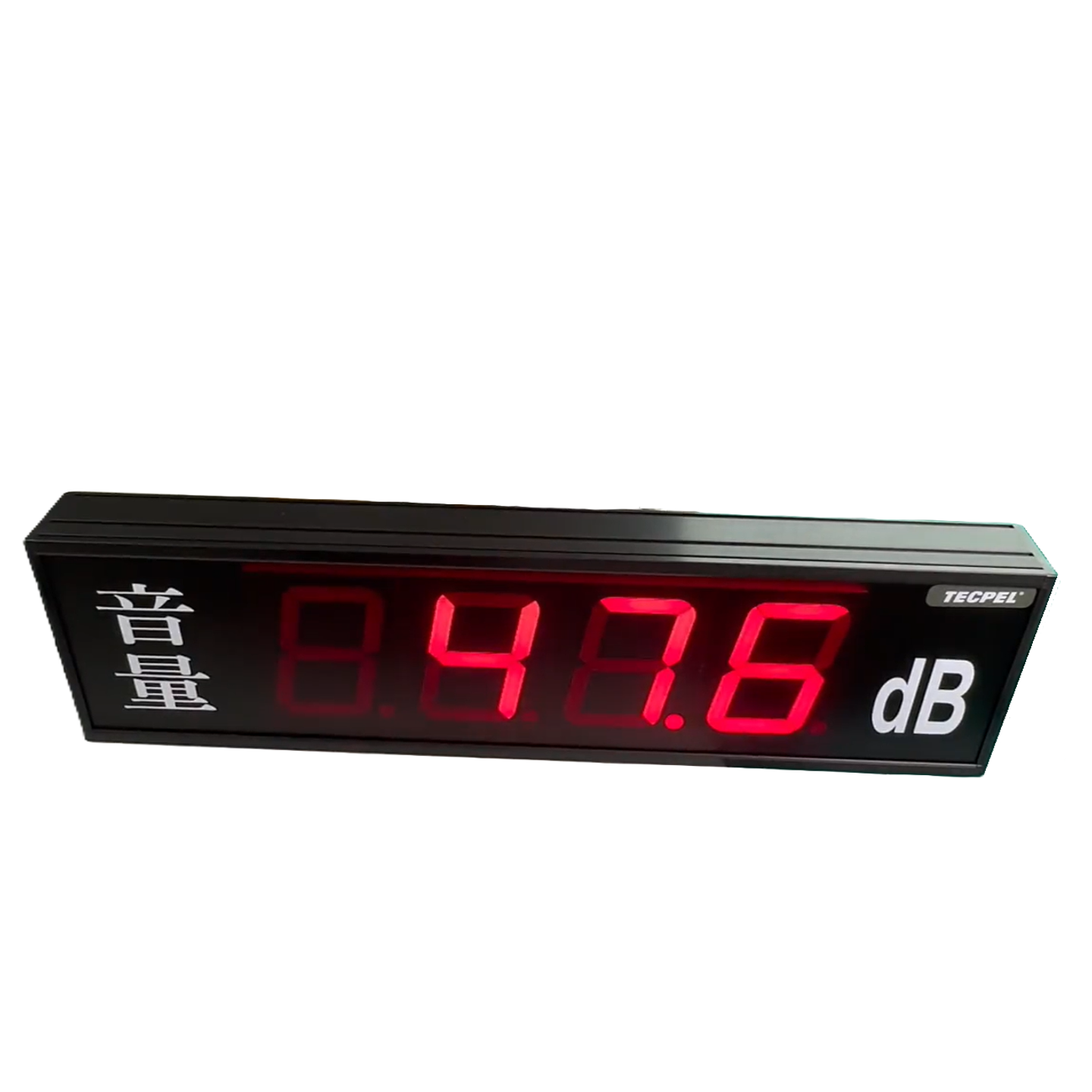

DSL-1410 Large Digital Sound Level Display Board
The "Noise Monitor" is a tool used to monitor environmental noise levels, which is critical in hospitals. It helps ensure tranquility in the ward and promotes patient recovery. Children require special attention in hospitals, and the environment should be child-friendly, including brightly colored decorations and entertainment facilities to reduce their uneasiness. Healthcare teams also need to be trained to respond to children's needs and ensure they receive appropriate medical and emotional support.
Noise monitors play an important role in areas of rapid mass transit activity, monitoring and regulating sound levels. This technology helps ensure that the environment in public transportation places such as stations and trains is not disturbed by excessive noise, providing a quieter and more pleasant ride experience while protecting the hearing health of passengers and staff.
Specifications
- Accuracy4 digits
- Sound Level30~130dB or 0~145.0dB (Depends on the matching sensor)
- Resolution0.1
- Response Time3 times / Sec. or 0.5 times /Sec.
- Digital LED DimensionsH 102 x L 60 mm
- DimensionsH 155 x L 584 x D 61mm
Features
- Standard Input Signal4~20mA or 0~1450mV
- Voltage OutputDC24V / 100mA
- AccuracyExternal Zero/ Span adjustment
- User CompensationDigital Compensation
- Figure DisplayRed LED Light
Attributes
- Operating Temperature0~60°C / lower than 90%RH without dew。
- Storage Temperature0~60°C / 10~70%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyAC90~260V 50/60 Hz
- WeightApprox. 1.8 kg
- Body MaterialBlack aluminum housing
