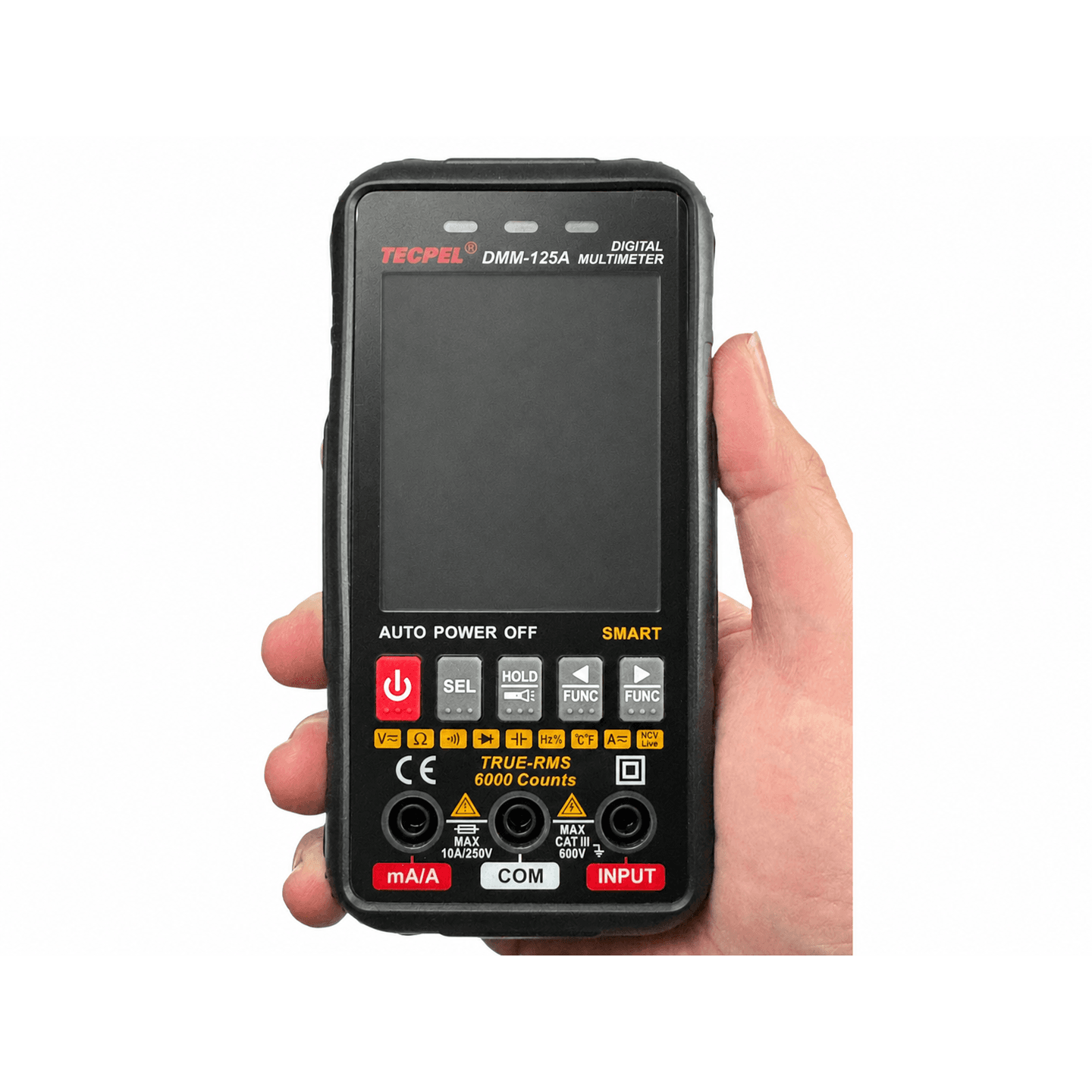

Color Smart Meter with True RMS
Brand
TECPEL
|
Model
DMM-125A
|
🇹🇼 Taiwan
The DMM-125A Color Smart Meter is suitable for precise measurement of various voltages and currents, ideal for comprehensive electrical testing on-site.
Price
NT$ 850
Out of Stock
Views: 10
Description
DMM-125A is a color smart multimeter with a dynamic analog bar display for voltage, current, resistance, capacitance, frequency, duty cycle and temperature measurements. It supports True RMS, auto recognition, socket guide light, non-contact voltage detection and audio/visual alerts to improve field testing efficiency and reduce connection errors.
Specifications
- DC Voltage600mV/6V/60V/60V/600V ±(0.5%+3)
- AC Voltage6V/60V/600V ±(1.0%+3)
- Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+5)
- AC/DC Current (ACA/DCA)600mA/6A/10A ±(1.2%+3)
- Capacitance6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5), 6 mF ±(5.0%+5), 60 mF ±(10.0%+10)
- Frequency6Hz/60Hz/600Hz/6KHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
- Duty Cycle1.0-99.0% 0.10%
- Temperature Range(-40-1000)°C ±3°C, (-40-1832)°F ±2.0%
- DisplayMax display 5999
- True RMS40Hz-1KHz True RMS
Features
- Auto RecognitionYes
- Over Range IndicationYes
- Socket Intelligent Guide LightYes
- Non-Contact Voltage (NCV)Yes
- Live Wire DetectionYes
- Fuse Blown IndicationYes
- Audio and Visual AlertYes
- High Brightness FlashlightYes
Attributes
- Operating Environment0°C~40°C (Relative Humidity <75%RH)
- Storage Environment-20°C~60°C (Relative Humidity <85%RH)
- Battery Type1.5 V AAA battery × 4
- Dimensions144 × 73 × 27 mm (L×W×H)
- WeightApprox. 235g (including batteries)
