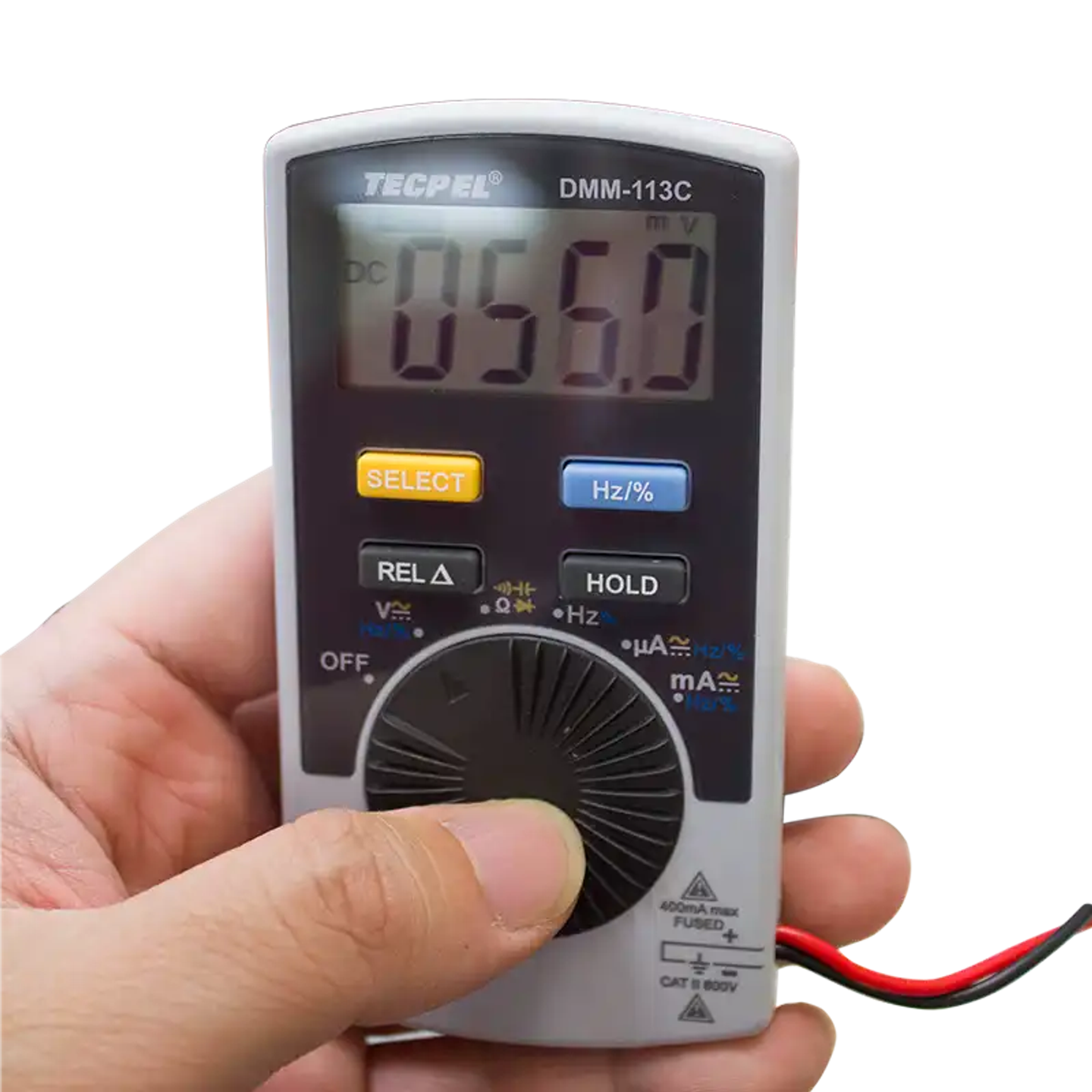

Pocket Multimeter, DMM-113C
Brand
TECPEL
|
Model
DMM-113C
|
🇨🇳 China
The DMM-113C measures voltage, current, and resistance.
Compact and portable,
suitable for single-handed operation,
high-accuracy measurement,
an ideal tool for circuit maintenance.
Price
NT$ 399
Out of Stock
Views: 68
Description
The DMM-113C pocket-sized multimeter is a lightweight, portable digital multimeter featuring a 3 3/4-digit (3,999-count) display. It offers comprehensive functions and stable performance, making it suitable for maintenance and repair of circuits and electrical equipment.
Its high-accuracy measurement and convenient single-handed operation design make it an ideal measuring instrument for a wide range of users. Whether in professional work environments or for everyday use, it provides reliable data support.
Specifications
- Display Counts3,999 counts
- DC Voltage (DCV)4 / 40 / 400 / 600 V ±(0.8%+3)
- DC Current (DCA)400μ / 4m / 40m / 400m A ±(1.0%+3)
- AC Voltage (ACV)4 / 40 / 400 / 600 V ±(1.2%+3)
- AC Current (ACA)400μ / 4m / 40m / 400m A ±(1.5%+5)
- Resistance (Ω)400 / 4K / 40K / 400K / 4M / 40M Ω ±(1%+2)
- Capacitance4n / 40n / 400n / 4μ / 40μ / 100μ F ±(4%+3)
- Frequency (Hz)99.99Hz ~ 99.99KHz ±(0.5%+3)
Features
- Duty Cycle0.1%~99.9%
- Diode Test○
- Auto Power OffAbout 30 minutes
- Low Battery Indication≤2.4V
- Data Hold○
- Relative Measurement○
- Input Impedance≥10MΩ
Attributes
- Operating Temperature-10~40 °C / below 75%RH, non-condensing
- Storage Temperature0~50 °C / below 75%RH, non-condensing
- Altitude Limitbelow 1,000 m
- Power SupplyDC 3V button cell battery (CR2032)
- Dimensions110 × 58.2 × 10.8 mm
- Weightapprox. 76 g (battery excluded)
- AccessoriesBattery, protective case, user manual
