Analog Multimeter
Brand
TECPEL
|
Model
AMM-110
|
🇹🇼 Taiwan
The AMM-110 analog multimeter combines classic design with practical functionality. Its three-color scale and mirror-scale viewing design make measurement results clearer and more accurate, effectively reducing the risk of misreading.
It supports voltage, current, and resistance measurements, and features up to 20MΩ input impedance and 10A current testing capability. It also supports transistor hFE and dB measurements, meeting a wide range of testing requirements.
Price
NT$ 890
Out of Stock
Views: 65
Description
The AMM-110 analog multimeter is a well-designed measurement instrument featuring a clear, easy-to-read three-color scale that helps reduce operating errors and enables users to obtain readings quickly and accurately.

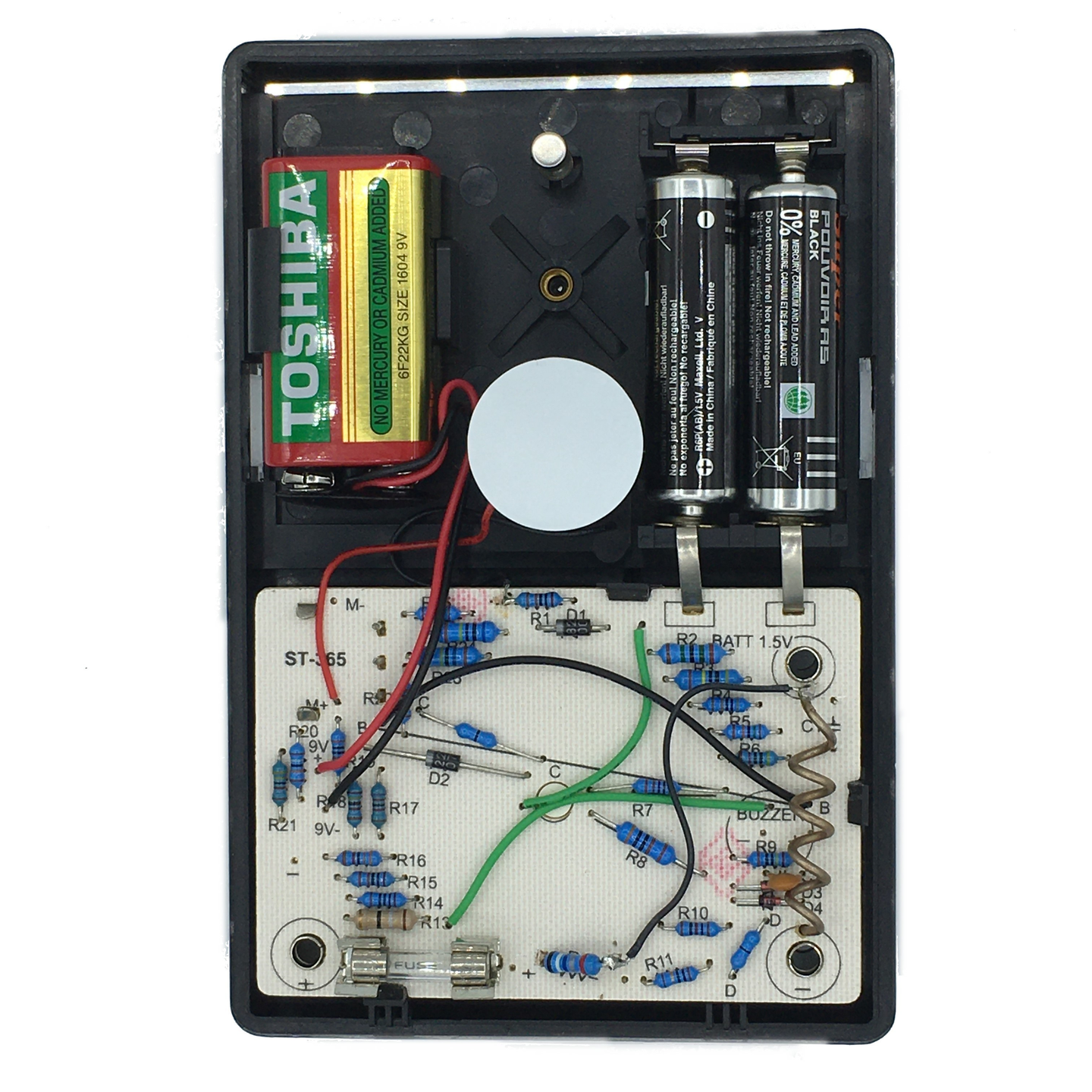

It incorporates advanced safety design with full-range fuse protection and diode overload protection to ensure safe operation. The built-in full-range fuse and diode protection circuit provide comprehensive safety protection.
In addition, the AMM-110 comes with test leads, hFE test leads, a fuse, and an instruction manual, ready to use out of the box and suitable for a variety of electrical testing applications.
Specifications
- DC Voltage (DCV)0.1 / 0.5 / 2.5 / 10 / 50 / 250 / 1000 V ±3% full scale
- DC Current (DCA)50u / 2.5m / 25m / 250m / 10 A ±3% full scale
- AC Voltage (ACV)10 / 50 / 250 / 1000 V ±4% full scale
- Resistance (Ω)2k / 20k / 200k / 2M Ω (20 Mid-scale) ±3% full scale
- Transistor (hFE)150u / 1.5m / 15m / 150m A ±5% full scale
- Voltage Measurement Range0 ~ 1000V AC/DC ±0.5%
- Measurement TypeAC/DC Voltage
- Sensor TypeVoltage Probe
Features
- Three-Color ScaleEasy to identify and helps prevent reading errors
- Mirror ScaleReduces parallax error for more accurate pointer readings
- StandAllows upright measurement
- Measurement FunctionsMeasures voltage, current, and resistance, with support for 10A current measurement
- hFE TestEnables transistor gain testing
- Safety ProtectionFull-range fuse protection helps prevent equipment damage
- Diode ProtectionProtects the meter movement from overload damage
- Safety DesignIncludes a safety fuse and a safety OFF position
Attributes
- Operating Temperature0 ~ 40 °C, humidity below 80%RH
- Power SupplyDC 9V battery
- Dimensions41 x 100 x 150 mm
- WeightApprox. 300 g (including battery)
- AccessoriesDC 9V battery, test leads, instruction manual
- Altitude LimitShould be below 2,000 meters
