100 MHz Bench Oscilloscopes USB (Type-C), LAN Interface Display 2 Channel CAT II 400V Save, AWG
Brand
OWON
|
Model
VDS-6102A
|
🇨🇳 China
The ultra-thin dual-channel design combines performance with portability, making measurement tasks more flexible. With up to 100MHz bandwidth and a 1GSa/s real-time sampling rate, it accurately captures high-speed signal details without missing any transient changes. With up to 10M memory depth, it fully preserves long-duration waveform data for more comprehensive analysis. It also supports multi-platform secondary development to meet the needs of engineering testing, automation integration, and customized applications.
Price
NT$ 15,000
Out of Stock
Views: 58
Description

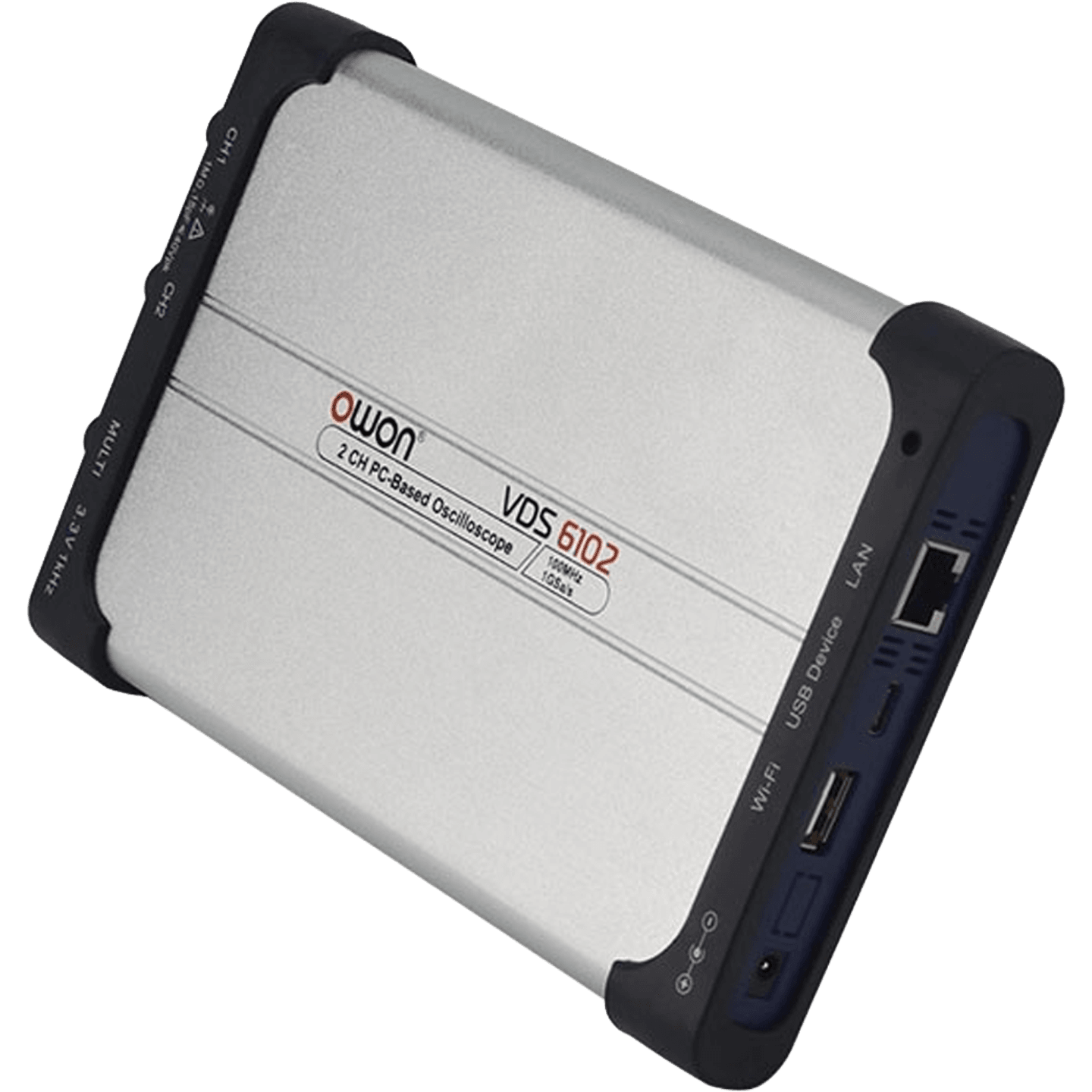

The OWON VDS-6102A is a newly designed USB interface oscilloscope with a bandwidth of 100MHz and a 14-bit high resolution, tailored for electronics engineers and technicians. Its ultra-slim dual-channel design allows for a maximum storage depth of 10M and a real-time sampling rate of up to 1GSa/s, making it suitable for various electronic testing and debugging tasks. It supports secondary development on multiple platforms, including Windows, Linux, Android, and Apple, providing flexibility and enhancing testing efficiency.
Specifications
- BandwidthVDS 6102A
- Channels滿頻寬 相位差 ±3 degrees
- Sampling Rate2
- Memory Depth最高1GSa/s
- Resolution≤3.5 ns (BNC上典型)
- Rise Time5ns/div～100s/div
- Timebase Range普通採樣、峰值檢測、平均值
- Input Impedance1MΩ±2%，與15pF±5pF 並聯
- Accuracy±2%
- Vertical Sensitivity峰-峰值、平均值、均方根值、頻率等
- Input Coupling直流、交流、接地
- Overload Protection40 V 峰值（DC + AC 峰值）
Features
- Wave Trigger是
- Waveform Storage10M
- Auto Measurement100MHz
- 實時採樣率1GSa/s
- Multi-language Interface14bits
- 支持平台Windows / Linux / Android / 蘋果
- Input Coupling直流、交流、接地
- Overload Protection40V 峰值（DC + AC 峰值）
- 觸發方式自動、正常、單次
- InterfaceUSB (Type-C), LAN
Attributes
- Operating Temperature190mm(L)×18mm(H)×120mm(W)
- Storage Temperatureabout 0.30 kg (main unit)
- Altitude LimitProbe/calibration pen/USB data cable/adapter/power cord/silicone sleeve/product manual/driver CD/soft bag
- InterfaceUSB (Type-C)、LAN
- Dimensions190 x 18 x 120 mm
- Weight約 0.30 kg（主機）
- Accessories探棒、校正筆、USB 數據線、適配器、電源線、矽膠套、產品說明書、驅動光碟、軟包
