Vibration Meter
Brand
LUTRON
|
Model
VB-8201HA
|
🇹🇼 Taiwan

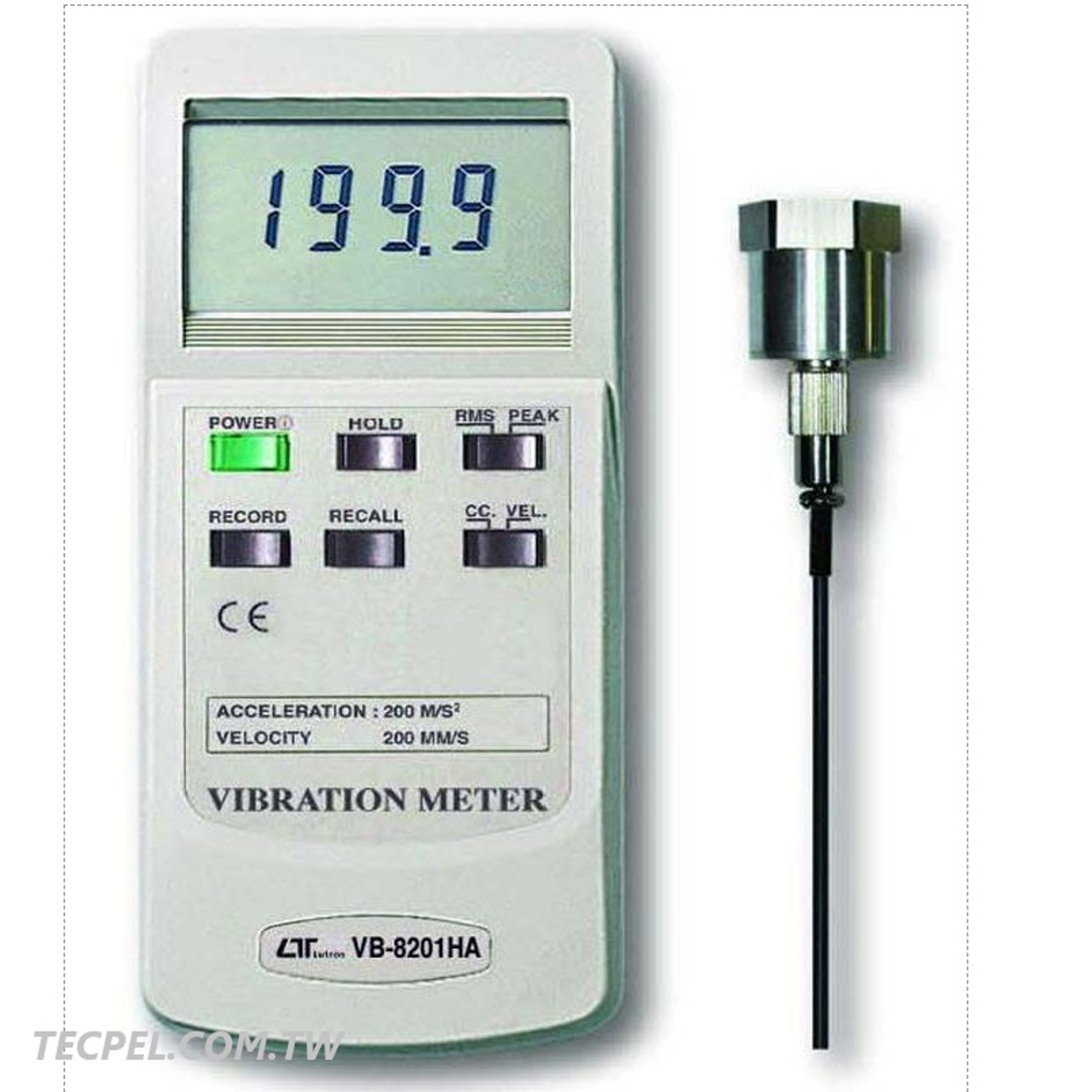

The VB-8201HA is a professional vibration meter suitable for detecting the condition of industrial machinery. It offers a wide frequency range and a microcomputer circuit for high performance, equipped with a vibration probe and magnetic base for easy operation. Its compact design is provided with a complete hard carrying case, making it ideal for harsh environments.
Out of Stock
Views: 0
Description
The VB-8201HA is a professional vibration meter ideal for monitoring industrial machinery conditions. It features a wide frequency range and microcomputer circuitry for high performance. Equipped with a vibration sensor and magnetic base, it ensures ease of use. Compact in design, it comes with a sturdy carrying case, making it suitable for harsh environments.
Specifications:
Display: Large 61 x 34 mm LCDMeasurement Range: Velocity: 0.5–199.9 mm/s; Acceleration: 0.5–199.9 m/s²Frequency Range: 10 Hz to 1 kHzFeatures: Data hold, max/min memory, auto power-off, low battery indicator.
Specifications
- Display61 mm x 34 mm super large LCD display
- Sampling TimeApprox. 1 second
- Operating Temperature0 to 50 °C (32 to 122 °F)
- Measuring RangeVelocity: 0.5 to 199.9 mm/s, Acceleration: 0.5 to 199.9 m/s²
- Sound Frequency10 Hz to 1 KHz
- WeightMeter 274 g, Probe with magnetic base 38 g
- Dimensions185 x 78 x 38 mm (7.3 x 3.1 x 1.5 inch)
- Accuracy±(5% + 2 d) @ 80 Hz, 160 Hz
Features
- Data HoldYes
- Memory FunctionRecords maximum and minimum values
- Auto Power OffSaves battery life
- Low Battery IndicatorBuilt-in
- External Vibration ProbeEasy operation
Attributes
- Operating HumidityLess than 80% RH
- Power SupplyApprox. DC 6 mA
- AccessoryInstruction manual, Vibration sensor (VB-81A), Cable, Magnetic base, Carrying case
