UTi716S Professional Thermal Imager

Brand UNI-T | Model UTi716S | 🇨🇳 China
UTi716S Professional Thermal Imager
UTi716S - 1
UTi716S - 2
UTi716S - 3
thermal imaging professional industrial handheld infrared
UNI-T Professional handheld thermal imager with 2.4" TFT color display, 160×120 IR resolution, supporting multiple color palettes and temperature range from -20℃ to 550℃
Out of Stock
Views: 8

Description

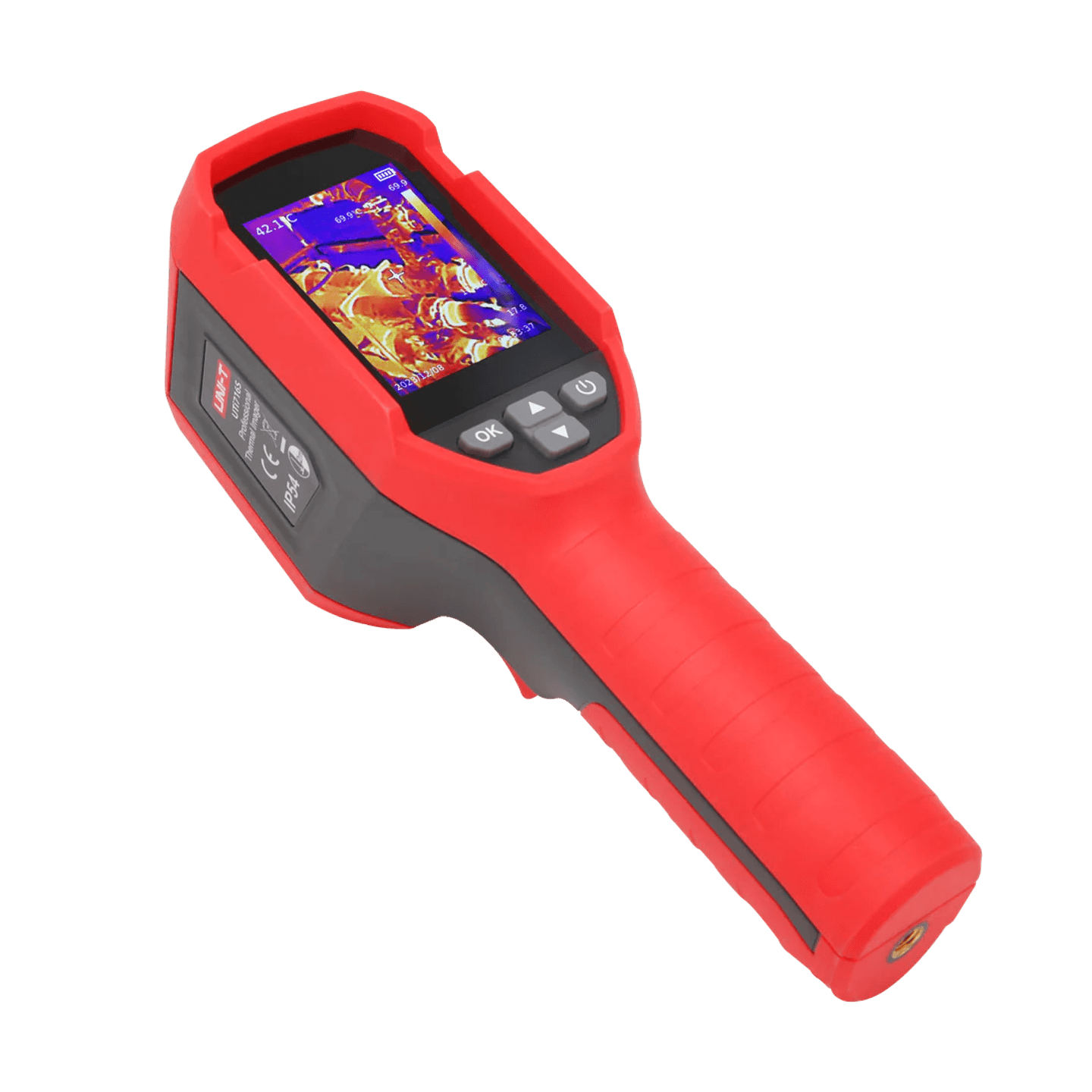

UTi716S Professional Thermal Imager - Product Overview

The UTi716S is a professional-grade handheld thermal imaging camera from UNI-T, featuring the latest infrared imaging technology to capture and analyze real-time surface temperature distribution. With high-resolution display, multiple color palettes, and powerful temperature measurement functions, it is the ideal choice for industrial inspection, building diagnostics, electrical maintenance, and research applications.

Key Features

  • High-Precision Measurement - Temperature range -20℃ to 550℃, accuracy ±2℃ or ±2%
  • Clear Display - 2.4" TFT color screen (320×240 pixels) with real-time thermal imaging
  • Super Resolution - IR resolution 160×120, super resolution up to 640×480
  • Multiple Color Palettes - 7 color palette options for different applications
  • Advanced Functions - High/Low temperature alarms, temperature tracking, digital camera, laser pointer
  • Portable Design - Only 600g weight, IP54 protection rating, 2m drop-proof
  • Long-lasting Battery - 2600mAh rechargeable Li-ion battery, ≥6 hours operation

Applications

  • Industrial equipment inspection and maintenance
  • Electrical equipment fault diagnosis
  • Building energy audit and diagnostics
  • HVAC system inspection
  • Research experiments and education
  • Safety inspection and emergency rescue

Certifications & Compliance

This product has passed the following international certifications:

  • CE (European Union Safety Certification)
  • FCC (Federal Communications Commission)
  • RoHS (Restriction of Hazardous Substances)

Language Support

The product menu and operation guide support multiple languages: English, French, German, Spanish, Italian, Swedish, Polish, and Czech.

Warranty & Support

Purchase of UTi716S includes professional technical support and after-sales service from UNI-T. If you have any questions, please contact our technical team.

Specifications

  • Display2.4" TFT (320×240)
  • Temperature Measurement Range-20℃~550℃
  • IR Resolution160×120
  • Super Resolution√(640×480)
  • Spectral Range8~14µm
  • Accuracy±2℃ or ±2% (whichever is greater)
  • Pixel Size12µm
  • Frame Rate≤25Hz
  • Thermal Sensitivity (NETD)≤50mK
  • FocusFree focus
  • Field of View (FOV)40°(H) × 30°(V)
  • Spatial Resolution (IFOV)4.62mrad

Features

  • Storage Capacity32GB Internal Storage
  • Image Storage FormatJPG
  • PaletteWhite Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
  • Image ModeThermal, Visible Light, Fusion (T-Mix), Picture-in-Picture (PIP)
  • High/Low Temperature AlarmLCD Animation, LED Flashlight, Buzzer
  • High/Low Temperature Tracking√
  • Digital Camera Resolution2 Megapixels
  • Laser Pointer/Rangefinder√ / —

Attributes

  • Operating Environment0~50°C / less than 80%RH non-condensing.
  • Storage Environment-10~40°C / less than 70%RH non-condensing.
  • Operating Time≥6 hours
  • USB InterfaceType-C
  • Battery200mAh rechargeable lithium battery
  • Protection RatingIP54 & 2m drop resistance
  • CertificationsCE, FCC, RoHS
  • Weight600g
  • Dimensions197mm×72mm×60mm
  • LanguageEnglish, French, German, Spanish, Italian, Swedish, Polish, Czech
