000V True RMS Digital Multimeter

Brand UNI-T | Model UT61E+ | 🇨🇳 China
000V True RMS Digital Multimeter
UT61E+ - 1
UT61E+ - 2
UT61E+ - 3
UT61E+ - 4
The UNI-T UT61E+ True RMS digital multimeter is suitable for advanced electronic and electrical measurements, with a measurement range of up to 1000V, offering multiple measurement functions, ideal for professional and industrial applications, comes with various accessories for ease of use, ensures precise data display.
Out of Stock
Views: 1

Description

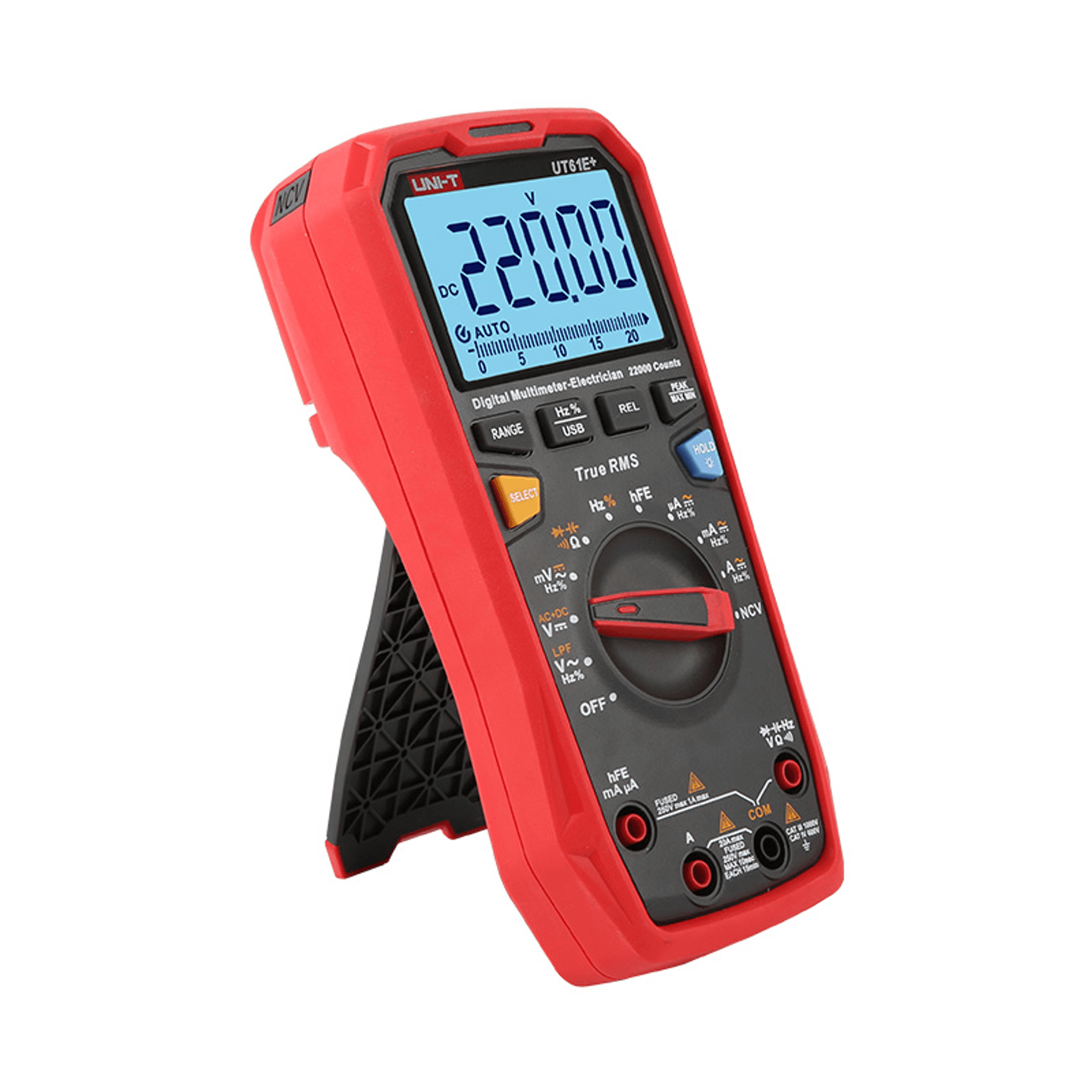

The UNI-T UT61E+ is a high-precision True RMS digital multimeter capable of measuring AC and DC voltages up to 1000V, as well as current, resistance, capacitance, and frequency. With advanced features such as peak hold and analog bar graph display, it provides convenience for precise measurements. This multimeter is perfect for professional applications in electronics and electrical fields, offering reliable data support in both laboratory and industrial settings.

Specifications

  • 交流電壓1000V ±(0.8%＋10)
  • 直流電壓1000V ±(0.05%＋5)
  • 交流電流20A ±(0.8%＋10)
  • 直流電流20A ±(0.5%＋10)
  • 電阻220MΩ ±(0.5%＋10)
  • 電容220mF ±(3%＋5)
  • 頻率220MHz ±(0.01%＋5)
  • 工作週期 (%)0.1%~99.9% ±(2%＋5)
  • 顯示位數22000
  • 低通濾波 ACV√
  • ACV+DCV√
  • 電晶體 hFE√
  • 峰值保持√
  • 類比條46段

Features

  • 峰銘聲是
  • 背光顯示是
  • 數值保持是
  • 最大/最小值是
  • 類比條顯示46段

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C Humidity below 70%RH without condensation
  • Storage TemperatureTemperature -20 ~ 60°C Humidity below 80%RH without condensation
  • Dimensions190mm x 90mm x 50mm
  • Weight350g
  • AccessoryBluetooth/APP
  • Standard packagingGift box, cloth bag
  • Standard quantity per carton20pcs
  • Standard carton measurement480mm x 370mm x 365mm
  • Standard carton gross weight15.2kg
  • Power Supply1.5V battery (R03) x 4
