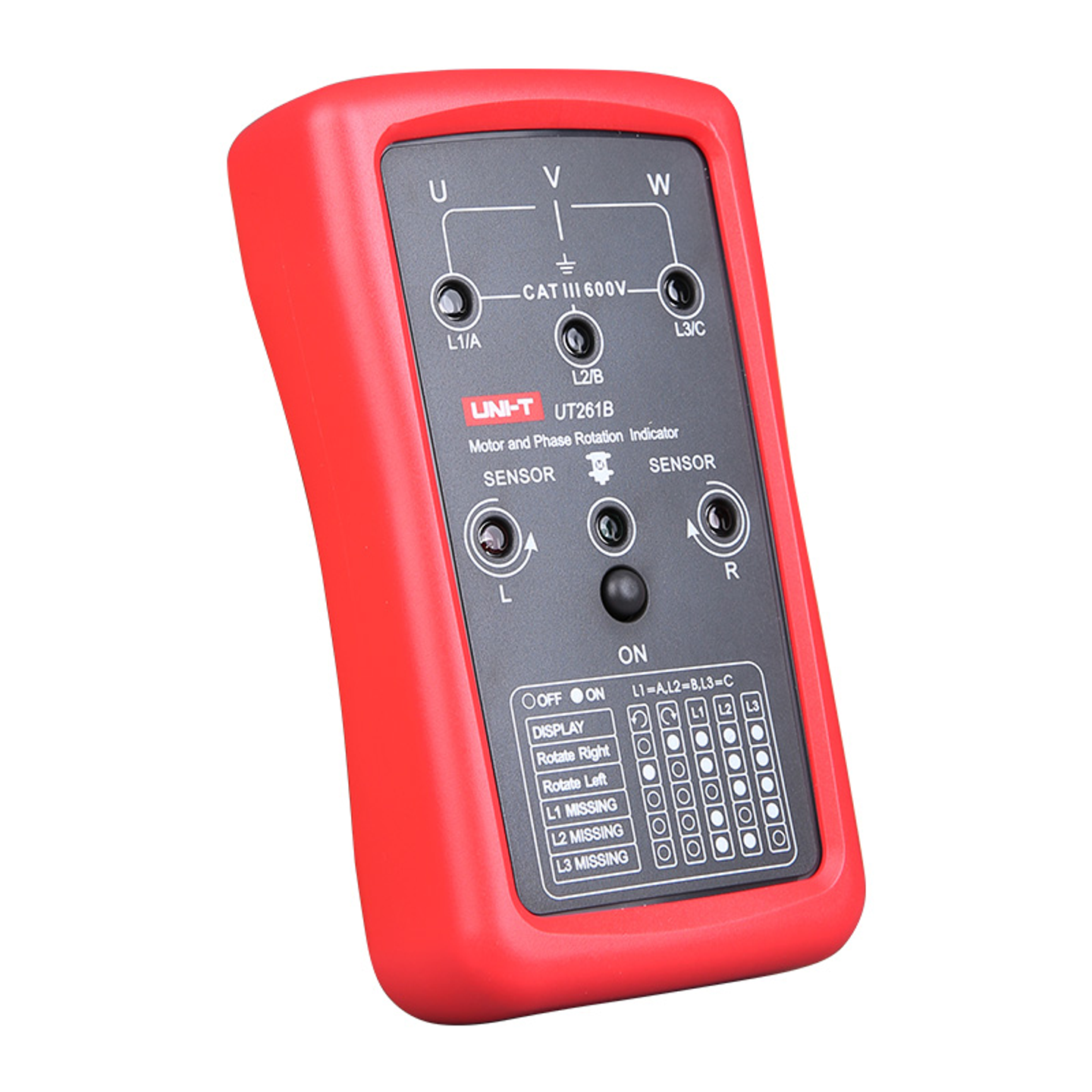

Phase Sequence and Motor Rotation Indicator

Brand UNI-T | Model UT261B | 🇨🇳 China
Phase Sequence and Motor Rotation Indicator
UT261B - 1
UT261B - 2
UT261B - 3
UT261B - 4
The UT261B can analyze the phase sequence of three-phase power and indicate phase loss conditions, operating frequency range from 15Hz to 400Hz, measuring AC voltage from 90V to 600V. The device comes standard with test leads featuring protective sheaths, and includes an LED safety indication feature.
Price NT$ 2,560
Out of Stock
Views: 0

Description

The UT261B is a highly efficient phase sequence and motor rotation indicator designed for detecting the phase sequence of three-phase power and the rotation direction of motors. Its durable casing can withstand drops from up to 2 meters, making it ideal for industrial environments. This device not only prevents potential damage to motors caused by phase sequence errors but also ensures the safe operation of equipment.

Specifications

  • AC Voltage90V~600V
  • Frequency15Hz~400Hz
  • Operating Current<3mA

Features

  • Safety IndicatorLED

Attributes

  • Power Supply9V Battery (6F22)
  • Product ColorRed and Grey
  • Weight10.3kg
  • Dimensions450mm x 325mm x 340mm
  • AccessoryBattery, Test lead with alligator clip x 3
  • Standard PackagingGift box, English manual, carrying bag
  • Standard Carton Quantity20pcs
