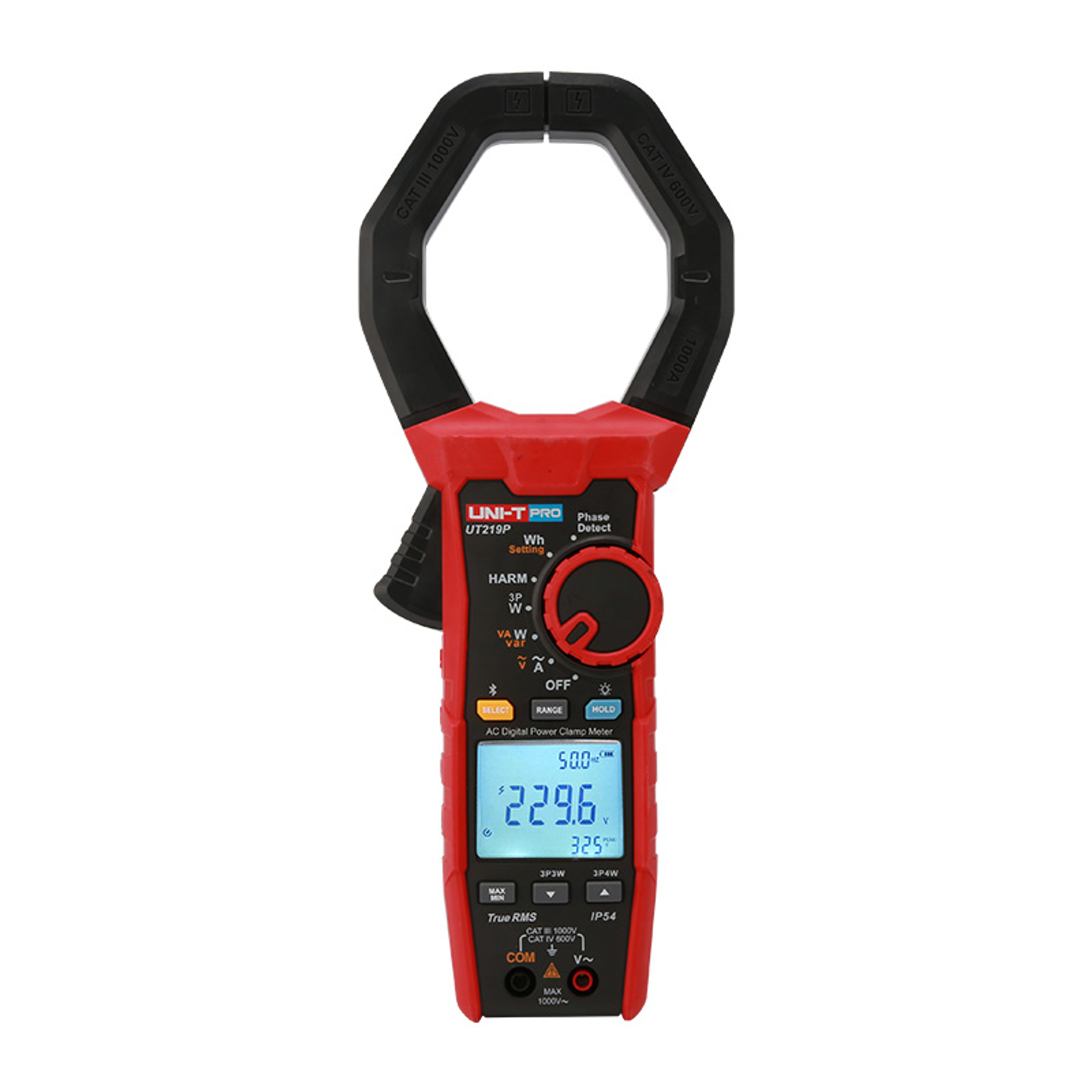

AC Digital Power Clamp Meter

Brand UNI-T | Model UT219P | 🇨🇳 China
AC Digital Power Clamp Meter
UT219P - 1
UT219P - 2
UT219P - 3
UT219P - 4
UT219P - 5
UT219P - 6
UT219P - 7
The UNI-T UT219P is one of the most advanced AC digital power clamp meters on the market, featuring multiple measurement functions including AC voltage, current, and power measurement. With a 75mm jaw opening, it's convenient for various measurements. It also features True RMS measurement technology and Bluetooth app compatibility, allowing users to record and analyze data in multiple ways.
Out of Stock
Views: 0

Description

The UNI-T UT219P is an advanced AC digital power clamp meter suitable for high-precision power measurements. It offers a wide range of functions and measurement capabilities, making it an ideal choice for industrial applications. UT219P AC Digital Power Clamp MeterUT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC Current, power, power factor, and more. It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.

Specifications

  • AC Current1000A ±(1.5%+3)
  • AC Voltage1000V ±(0.7%+3)
  • Single-phase Power (KW)1000KW ±(1.7%+5)
  • 3-phase 3-wire Power (KW)1732KW
  • 3-phase 4-wire Power (KW)3000KW
  • Frequency15Hz～1000Hz ±(0.3%+3)
  • Phase Angle (°)15Hz～40Hz ±5° / 40Hz～70Hz ±3° / 70Hz～1000Hz ±5°
  • Power Factor-1 ~ 1 based on the Accuracy of the Phase Angle

Features

  • Jaw Opening75mm
  • Phase Detection√(80V~1000V)
  • Positive and Negative Peak Measurement√
  • Harmonic Measurement32 times
  • Display ModeLCD screen, 4 kinds of results at the same time
  • Display Count9999
  • Communication√
  • True RMS√
  • Overload Protection√
  • Safety Rating√
  • High Voltage Overload Warning√
  • Data Hold√
  • Auto Power OffAround 15 minutes
  • Max/Min√
  • Overvoltage CategoryCAT III 1000V / CAT IV 600V
  • CertificationCE, UKCA, cETLus

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C, Humidity below 70%RH, Non-condensing
  • Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH, Non-condensing
  • Elevation LimitationBelow 2,000 meters
  • Power Supply1.5V AA battery × 2
