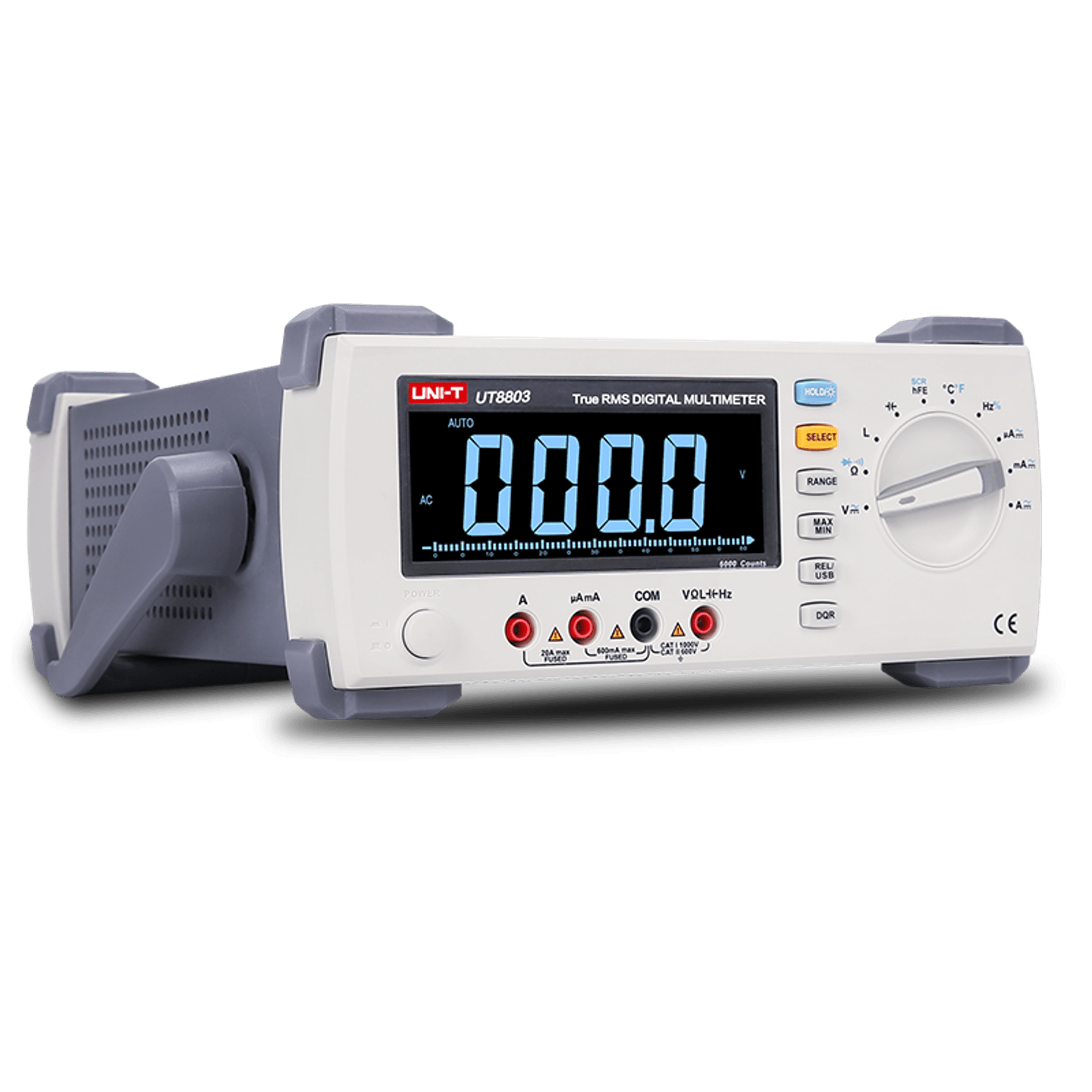

Desktop Digital Multimeter
Brand
UNI-T
|
Model
UT-8803E
|
🇨🇳 China
The UT-8803E is designed for professional users, featuring high precision, True RMS, and auto range capabilities, providing fast and safe data transmission.
Price
NT$ 4,300
Out of Stock
Views: 0
Description
The UT-8803E Desktop Digital Multimeter is ideal for stable and accurate environments such as laboratories, electronic measurement, and production line maintenance.
3⅚ digits, maximum display: 5999
Maximum reading speed: 3 times per second
DC Voltage: 600 mV to 1000 V
AC Voltage (True RMS): 600 mV to 750 V
DC / AC Current (True RMS): 600 µA to 20 A
Resistance: 600 Ω to 60 MΩ
Capacitance: 6 nF to 6 mF
Inductance: 600 µH to 100 H
Frequency: 600 Hz to 20 MHz
Duty Cycle: 5% to 95%
True RMS Measurement
Up to 100 kHz Frequency Response
Max/Min/Relative Value and Analog Bar Display
Up to 20,000 Data Records Storage
USB Communication Interface
Specifications
- Measuring RangeDC Voltage: 600mV to 1000V
AC Voltage: 600mV to 750V True RMS - True RMS600µA to 20A
- Resistance600Ω to 60MΩ
- Capacitance6nF to 6mF
- Sound FrequencyUp to 100kHz
- Maximum Display Digits5999
- Operating Temperature-40°C to 1000°C ±(1%+3°C)
Features
- Reading Speed3 times per second
- Data LoggingUp to 20000 sets
- Safety Ratingyes
- Max/Minyes
- Relative Modeyes
Attributes
- Operating TemperatureTemperature: 0 to 50°C, Humidity: < 70%RH non-condensing
- Storage TemperatureTemperature: -20 to 60°C, Humidity: < 80%RH non-condensing
- Safety RatingUSB Communication Interface
- Display Panel3⅚-digit display
