CO2 Transmitter

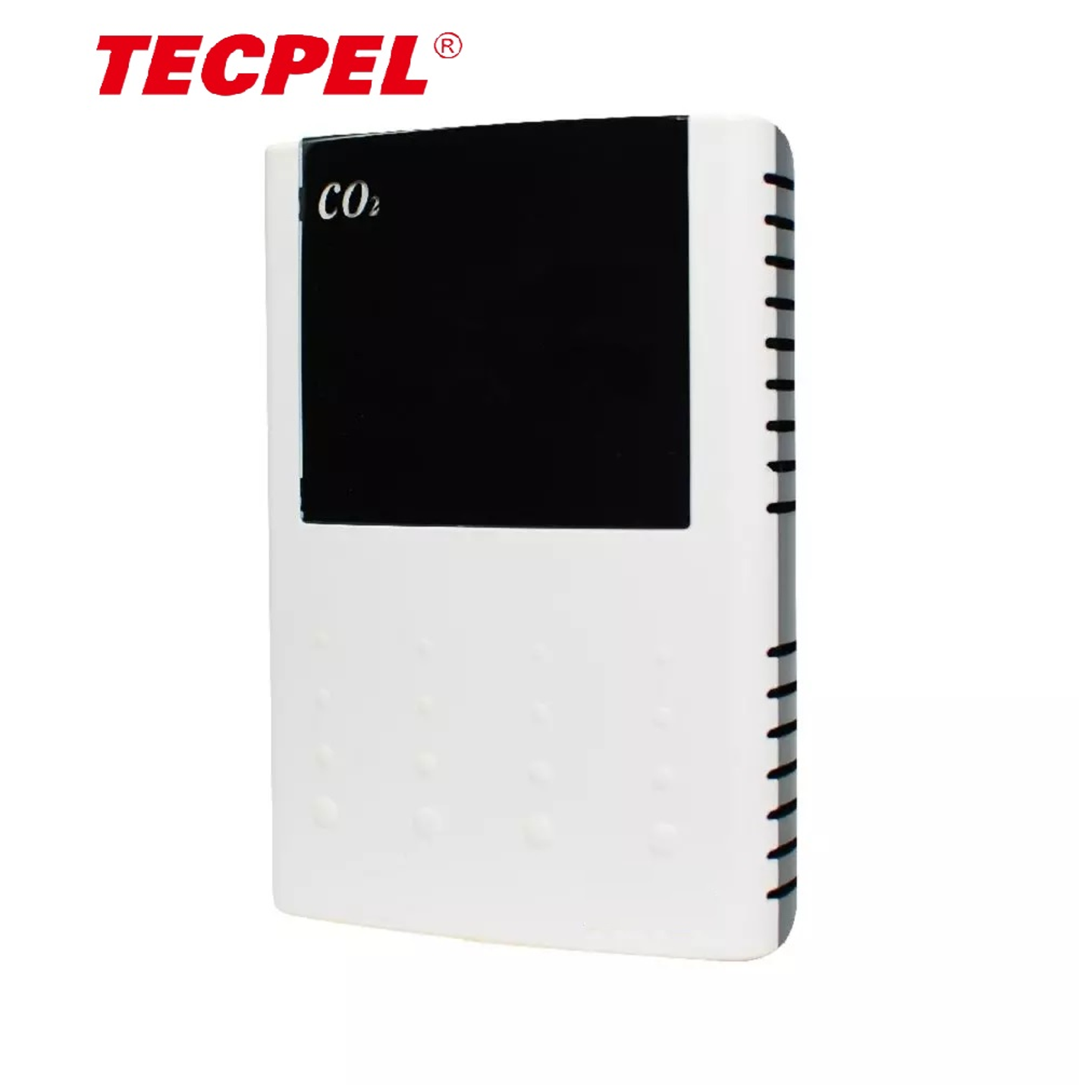

Brand TECPEL | Model TRH-CO2-3
CO2 Transmitter
This temperature and humidity CO2 transmitter features high accuracy, designed for systems requiring reliable CO2 monitoring. Ideal for HVAC systems, building automation, and indoor air quality management, providing stable readings and quick response times.
Out of Stock
Views: 0

Description

The TECPEL TRH-CO2-3 is a high-precision CO2 transmitter using NDIR infrared waveguide technology, ideal for various applications in environmental control; it's an optimal choice for improving air quality. Multi-purpose room air conditioning control, intelligent large building layout Ventilation system and air conditioning system, large number of people inside the main room Appropriate ventilation control, freshening the air inside the holding room, For example: commercial air conditioning, official offices, meeting rooms, classrooms, dining rooms Spaces such as train stations, train stations, and other public places

Specifications

  • Sensor TypeNDIR Infrared Waveguide
  • CO2 Range0~2000ppm
  • Accuracy± 30ppm ±3% of reading
  • Output Signal4~20mA
  • Operating TemperatureTemperature -10 ~ +50 °C; Humidity 0 ~ 95%RH (non-condensing)
  • Warm-up Time≤ 1 minute (full specifications at ≤ 15 minutes)
  • Sampling Time1 second
  • Operating PowerDC12 ~ 36V, AC 24V (50/60Hz)
  • Dimensions113.57(H) x 80(W) x 28.79(D)
  • Protection LevelIP 30
  • Electrical Connection4P Terminal Block

Features

  • Sensor TechnologyNDIR Infrared Waveguide Technology

Attributes

  • Operating TemperatureTemperature -10 ~ +50°C, Humidity 0 ~ 95%RH non-condensing
  • Dimensions113.57(H) x 80(W) x 28.79(D) mm
  • Protection LevelIP 30
  • Power SupplyDC12 ~ 36V, AC 24V (50/60Hz)
