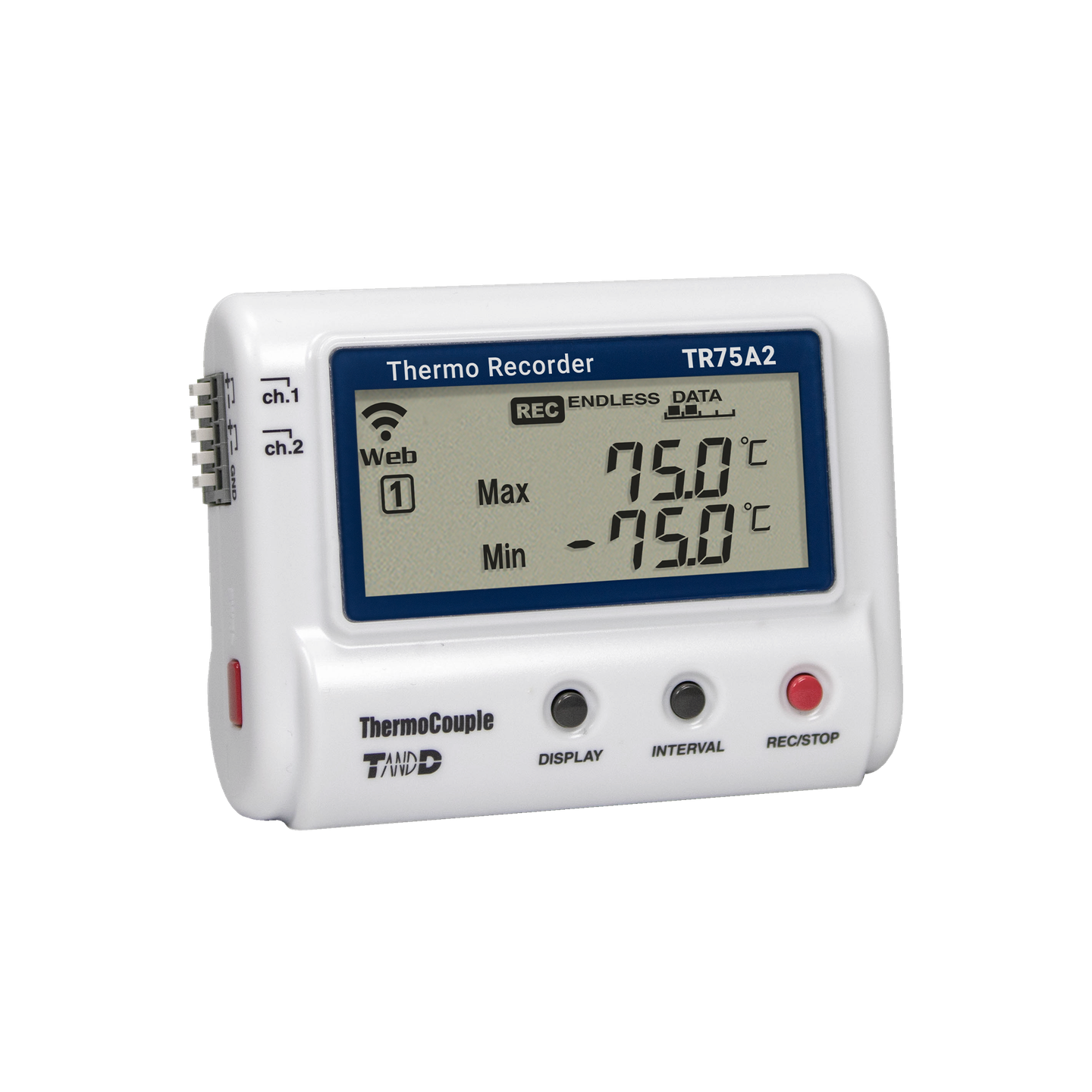

Thermocouple K, J, T, E, S, R Data Logger

Brand T&D | Model TR75A2 | 🇯🇵 Japan
Thermocouple K, J, T, E, S, R Data Logger
The TandD TR75A2 thermocouple temperature data logger is a high-accuracy temperature measuring instrument. Its key features include an alarm function, with notifications delivered via email and mobile app push alerts, allowing users to remotely receive alarms and read measurement values.
Downloads
TandD TR7 for Windows 4.30T&D Data Server 2.38
Out of Stock
Views: 5

Description

The TandD TR75A2 supports multiple thermocouple types, including K, J, T, E, S, and R-Type, providing a wider range of temperature measurement and data logging capabilities. It is widely used in industrial production, environmental monitoring, and scientific research, ensuring users obtain accurate and reliable data, making it suitable for professionals with a variety of needs.

Specifications

  • SensorThermocouple K, J, T, E, S, R -Type
  • Display Range-199 ~ 1760 °C
  • Type K-199 to 1370 °C
  • Type J-199 to 1200 °C
  • Type T-199 to 400 °C
  • Type E-199 to 1000 °C
  • Type S-50 to 1760 °C
  • Type R-50 to 1760 °C
  • Resolution0.1 °C
  • AccuracyK, J, T, E: ±(0.5+0.003×t)℃; S, R: ±(1.5+0.003×t)℃
  • Recording IntervalSelectable from 1 second to 60 minutes

Features

  • Recording ModeEndless Recording/One-Time Recording
  • Number of Records30,000 data records
  • Recording Interval1 second ~ 60 minutes (15 selections)
  • Upload Interval1 minute ~ 24 hours (15 selections)
  • Replaceable Probe (Sensor)
  • Cloud ServiceTandD WebStorage
  • Alarm NotificationEmail, screen display ALM, push notification (mobile app)
  • Power Saving ModeMaximum battery life up to 18 months

Attributes

  • Operating Environment-10 ~ 50°C / less than 90 %RH non-condensing.
  • Storage Environment0 ~ 40°C / less than 70 %RH non-condensing.
  • Altitude LimitBelow 1,000 meters
  • Wireless Network SpecificationsIEEE 802.11b/g/n
  • Power Specifications1.5V AA alkaline battery x 2 / USB power supply
  • Battery LifeApprox. 7 months (hourly transmission)
  • Product Dimensions58mm × 78mm × 26mm
  • WeightApprox. 55g (excluding batteries)
  • AccessoriesAA alkaline battery x2, manual
