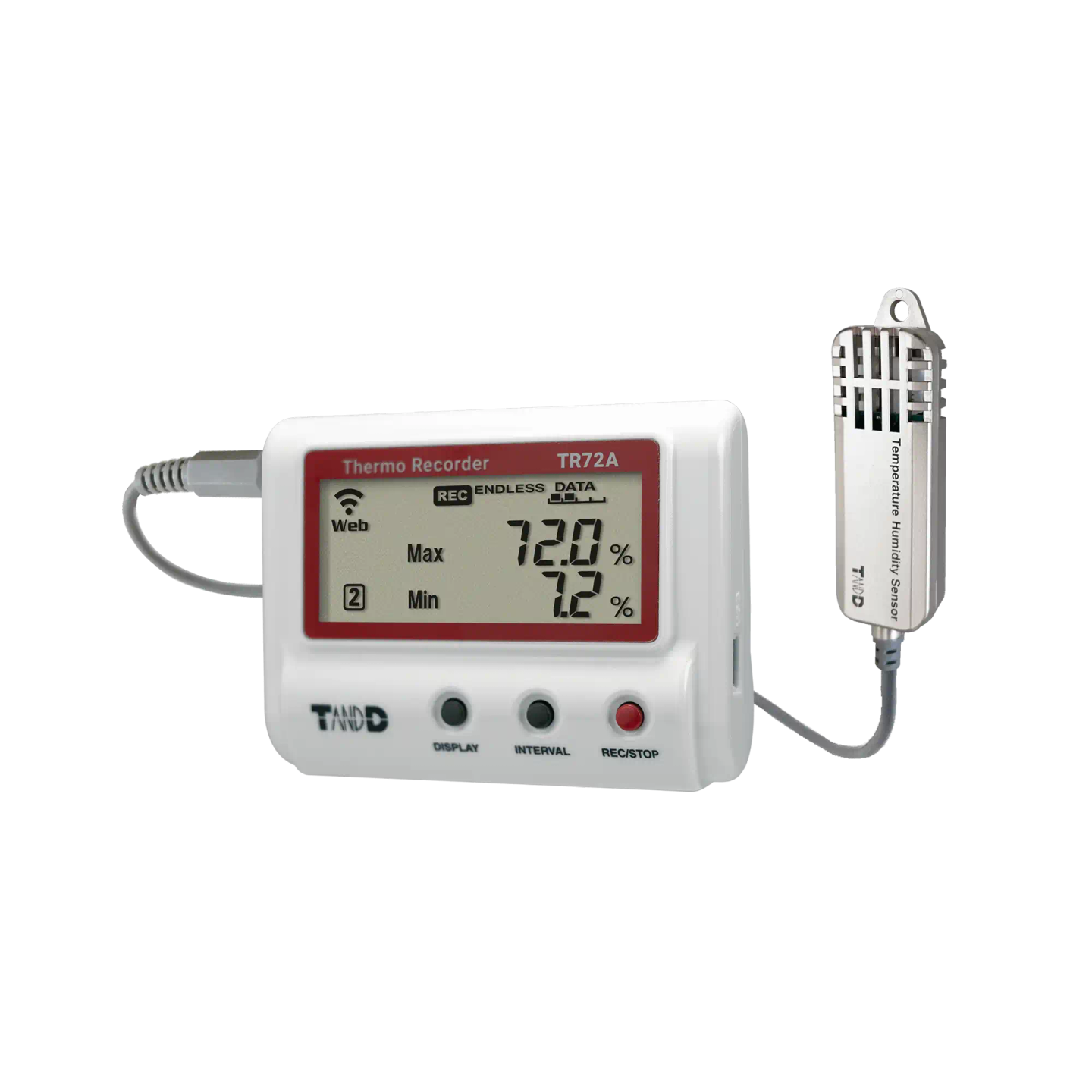

Discontinued TR-72A-S Wifi temperature and humidity data logger, temperature humidity data logger with probe
Brand
T&D
|
Model
TR-72A-S
|
🇯🇵 Japan
The TR-72A-S product has been discontinued. Please refer to TR72A2-S
This product has been discontinued. Specifications and documents remain available for reference, but ordering is no longer possible. Please contact our sales team for alternatives.
Views: 68
Description
The TR-72A-S wireless network temperature and humidity data logger is equipped with a high-precision SHA-3151 sensor, offers a data logging capacity of 30,000 readings, and supports Bluetooth transmission and configuration.
Users can choose to store data in the cloud or locally, and receive real-time alerts via e-mail and on-screen notifications. Its specially designed “Vaccine Mode” makes it highly suitable for vaccine storage monitoring, ensuring temperature and humidity stability.
Specifications
- Temperature Range-25~70 °C
- Humidity0 ~ 99 %RH
- Humidity Unit%RH (相對濕度)
- Accuracy±0.3 °C / ±2.5 %RH
- Resolution0.1 °C / 0.1 %RH
Features
- Temperature Unit SelectableCelsius °C / Fahrenheit °F
- Low Battery IndicatorBattery symbol and 'SLP' prompt
- Data Logging30,000 records
- Acquisition ModeOnetime / Endless
- Recording Interval1 second ~ 60 minutes (15 selections)
- Cloud ServiceTandD Webstorage
- Alarm FunctionE-mail, LCD displays ALM, mobile app
Attributes
- Operating Temperature0 ~ 50°C / Less than 90%RH, non-condensing.
- Storage Temperature-10 ~ 60°C / Less than 90 %RH, non-condensing.
- Altitude LimitBelow 1,000 meters
- Power Supply1.5V AA battery x2 / USB power supply
- Bluetooth SpecificationBluetooth 4.2 (Low Energy)
- Data TransmissionWireless network / Bluetooth / USB
- Dimensions58mm × 78mm × 26mm
- WeightApprox. 55g (excluding batteries)
- AccessoriesAA alkaline battery x2, SHA-3151, USB cable (Mini-B Cable US-15C), manual
Product Q&A
Q
How long can battery measurement and recording be used?
A
If data is transmitted to the cloud every hour, it can last up to about 10 months. If the transmission frequency is lower than once per hour, it is recommended to use USB power supply to avoid device power loss.
