Thermocouple Wire

Brand TECPEL | Model TPK-01H-20 | 🇹🇼 Taiwan

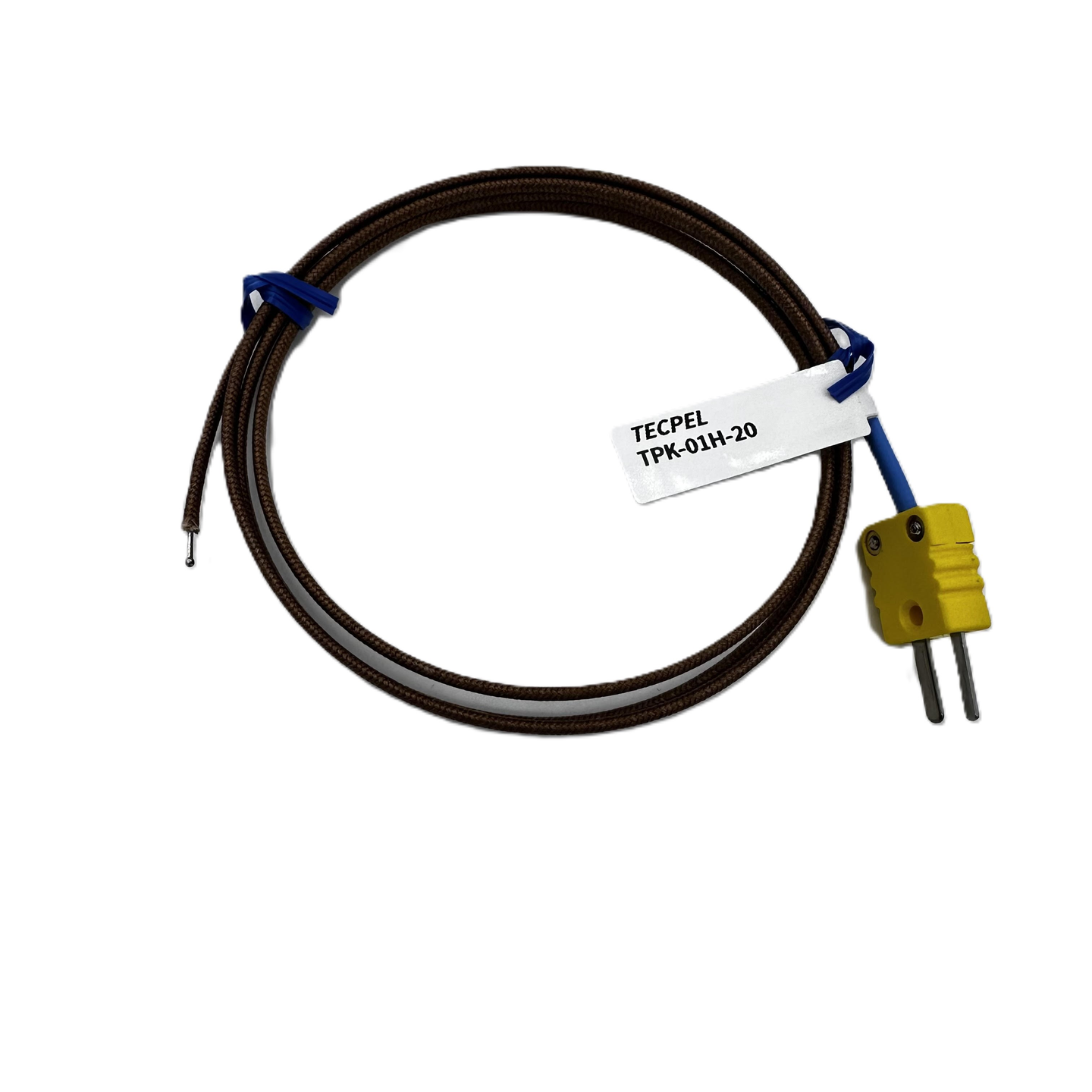

Thermocouple Wire
TPK-01H-20 - 1
TPK-01H-20 - 2
TPK-01H-20 - 3
TPK-01H-20 - 4
Exceptional high-temperature resistance suitable for various industrial applications, - Operating range: -200°C to 704°C - Glass woven insulation - Ideal for precise temperature monitoring
Out of Stock
Views: 0

Description

The TPK-01H-20 thermocouple wire is designed for industrial use, operating reliably in high-temperature environments. With glass woven insulation, it offers superior high-temperature resistance, suitable for a temperature range of -200°C to 704°C, making it an ideal choice for precise temperature monitoring. Whether in manufacturing, metallurgy, or chemical industries, this thermocouple wire provides dependable temperature sensing solutions.

Specifications

  • Sensor TypeType-K Thermocouple
  • Length1 meter
  • Wire Gauge20AWG
  • Conductor TypeSolid
  • InsulationGlass Braided
  • Operating Temperature-200°C to 704°C
  • Color Coding StandardANSI Standard

Features

  • 耐高溫是
  • 固態導體是

Attributes

  • AppearanceHigh-temperature glass braided insulation
  • CertificationComplies with ANSI Standard
