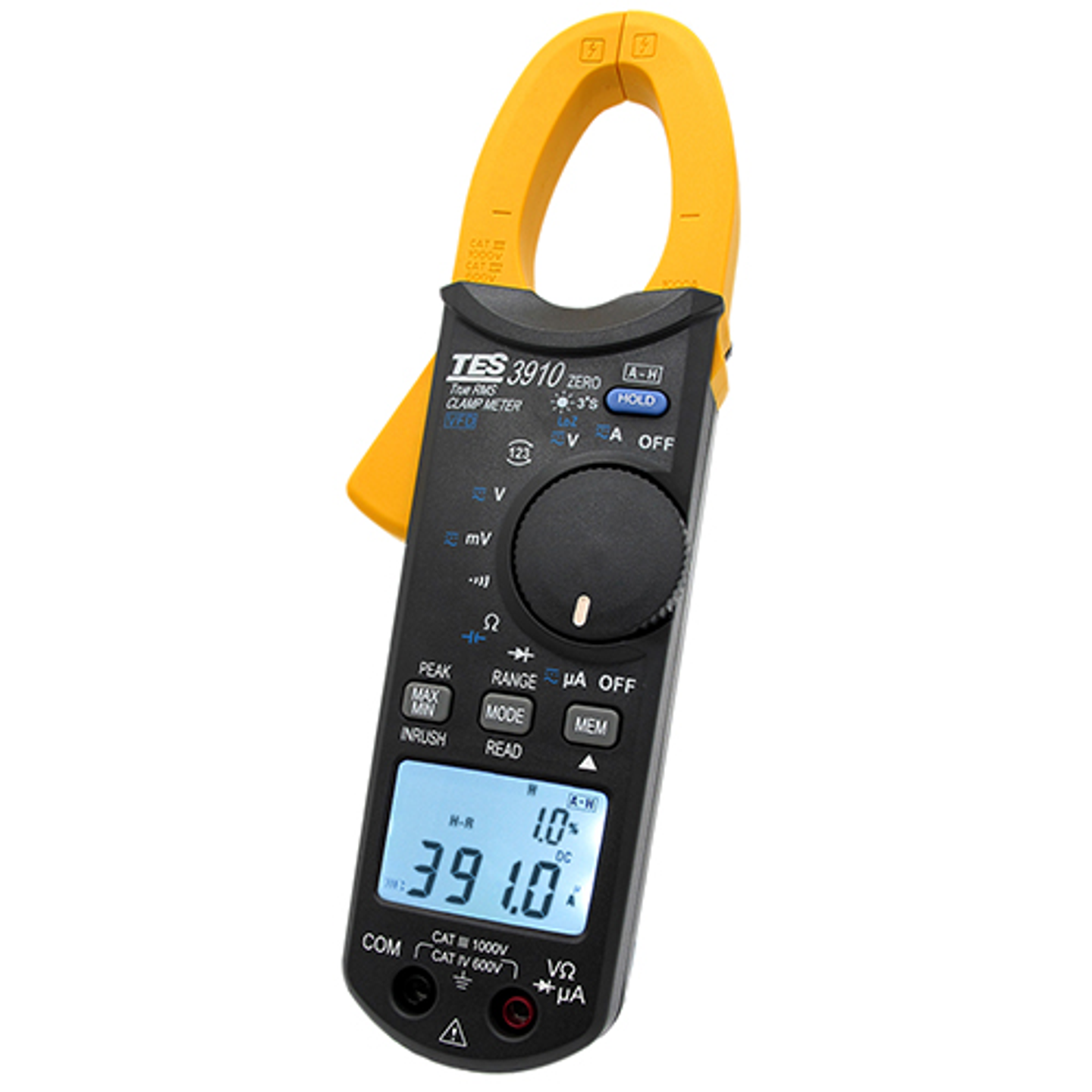

True RMS AC/DC Clamp Meter

Brand TES | Model TES-3910 | 🇹🇼 Taiwan
True RMS AC/DC Clamp Meter
The TES-3910 offers a measurement capacity of up to 1000A, supporting both AC and DC current measurements, with additional functions for voltage, resistance, frequency, and capacitance testing. It features maximum current hold and VFD Trms functions, making it an ideal choice for industrial power maintenance.
Price NT$ 3,800
Out of Stock
Views: 48

Description

The TES-3910 is a professional True RMS AC/DC clamp meter capable of measuring currents up to 1000A. It is specifically designed for electrical engineers and technicians for testing and maintaining industrial power systems. This instrument accurately measures both AC and DC currents, while also providing voltage, resistance, frequency, and capacitance measurements, fulfilling diverse testing needs and enhancing work efficiency.

Specifications

  • AC Current最高檔位 1000A，解析度 100mA，準確度 ±4%±20dgts (40~400Hz)
  • DC Current最高檔位 1000A，解析度 100mA，準確度 ±2% ±20dgts
  • AC Voltage最高檔位 999.9V，解析度 100mV
  • DC Voltage最高檔位 999.9V，解析度 100mV
  • Resistance最高測量 999.9KΩ
  • Frequency最高檔位 10MHz，解析度 0.01Hz
  • Capacitance測量範圍 10nF~100μF，解析度 1nF

Features

  • 紀錄最大電流啟動值yes
  • VFD Trmsyes
  • DC Currentyes
  • AC Currentyes
  • DC Voltageyes
  • AC Voltageyes
  • Resistanceyes
  • Frequencyyes
  • Capacitanceyes
  • Displayyes

Attributes

  • Dimensions236 length x 80 width x 39 thickness mm
  • Weight332g
  • Maximum Conductor Diameter33mm
  • Safety RatingCAT III 1000V, CAT IV 600V
  • AccessoriesManual, 9V battery, carrying case, test leads
