Three-Phase Power Analyzer
Brand
TES
|
Model
TES-3600N
|
🇹🇼 Taiwan
• Displays up to 10 sets of data
• Supports true RMS, active power, and energy measurement
• Features waveform display and harmonic analysis
• Data logging capacity of 20,000 points
• Ideal for continuous and accurate power analysis
Price
NT$ 46,000
Out of Stock
Views: 0
Description

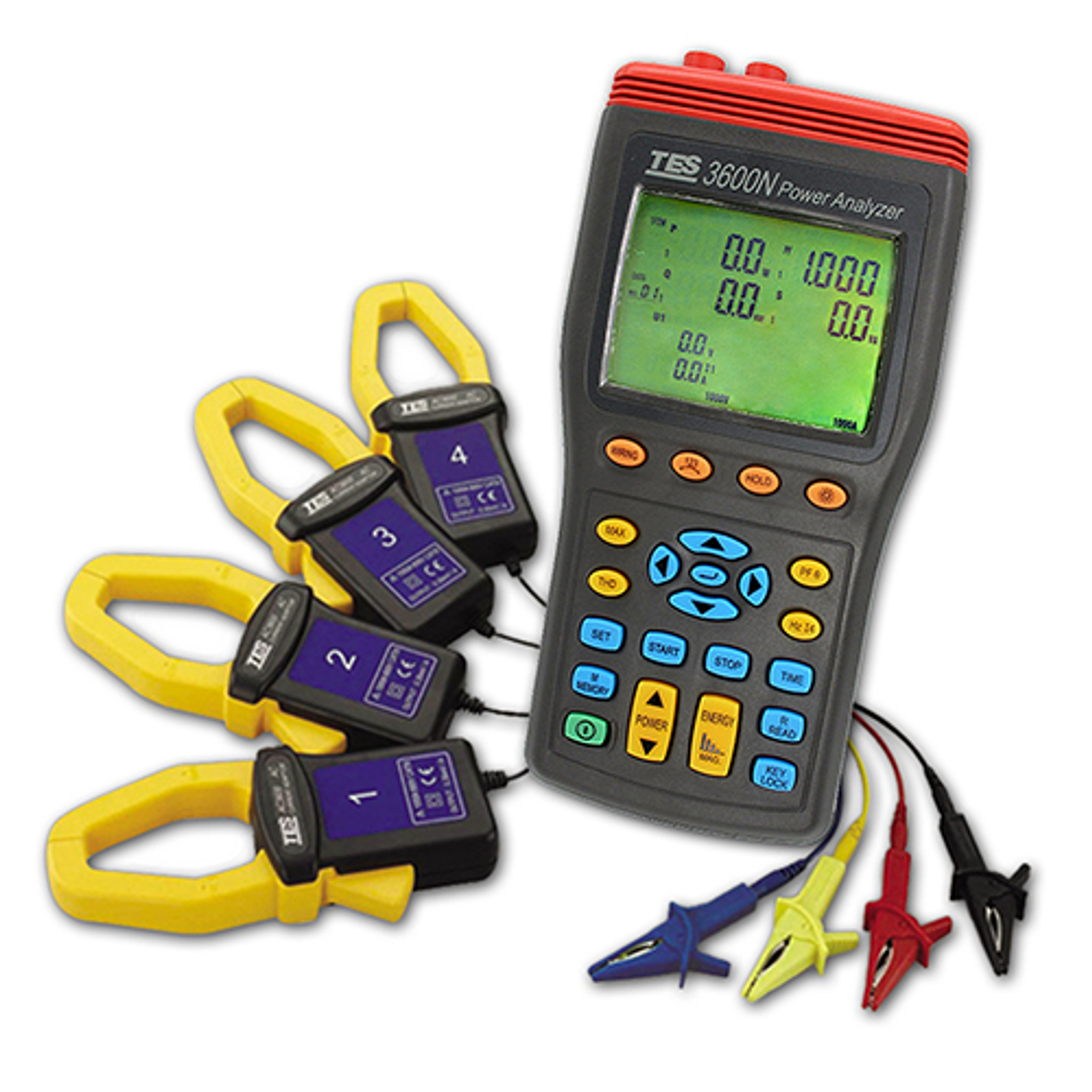

The TES-3600N is an advanced three-phase power analyzer that offers precise power measurements, waveform display, and data logging capabilities. Its compact design and user-friendly interface make it ideal for on-site applications, providing reliable data support for power monitoring and equipment maintenance.
Specifications
- True RMS Current999.9A ±(0.5%rdg+15dgts) (>10A)
- Active Power Measurement999.9KW ±(1.0%rdg+20dgts)
- Frequency45Hz ~ 66Hz ±(0.1%rdg+2dgt)
Features
- Safety RatingYes
- Backlight DisplayYes
- Data Logging20,000 entries
Attributes
- Working Temperature0℃ to 50℃ relative humidity below 80%
- Storage Temperature-10℃ to 60℃ relative humidity below 70%
- Dimensions235(L) x 116(W) x 54(H)mm
- Power SupplyAA battery 1.5V x 8
- AccessoriesManual, Software CD, PC Connect Cable, Premium Backpack, Hooks, Alligator Clips
