Digital Multimeter

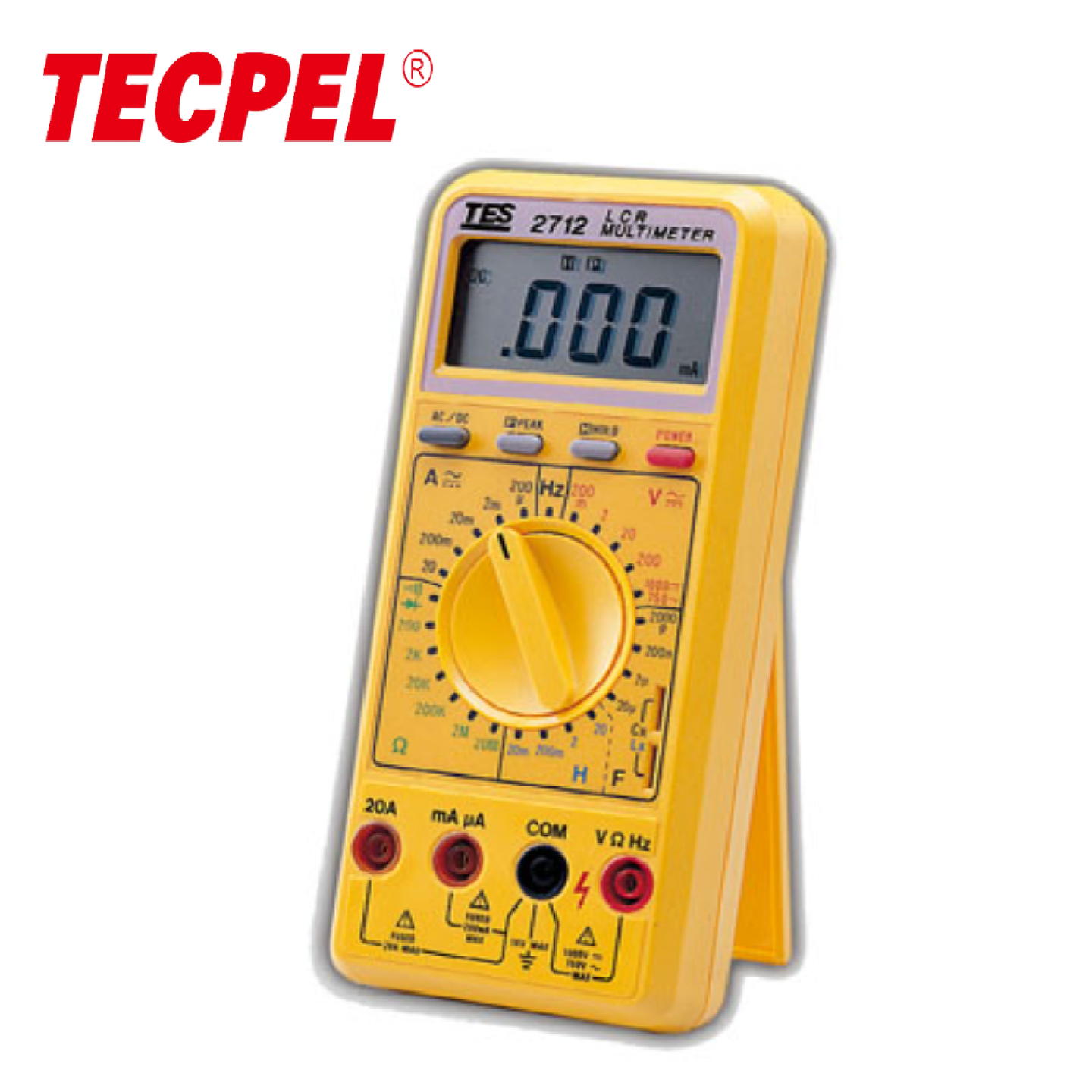

Brand TES | Model TES-2712 | 🇹🇼 Taiwan
Digital Multimeter
TES-2712 - 1
TES-2712 - 2
The TES-2712 Digital Multimeter delivers multiple high-precision measurement capabilities, including: - DC Voltage and AC Voltage - DC Current and AC Current - Resistance, Frequency, and Inductance measurements Ideal for various applications, ensuring measurement accuracy and reliability.
Out of Stock
Views: 0

Description

The TES-2712 Digital Multimeter is a high-precision measuring instrument designed for precise voltage, current, and resistance measurements in industrial environments. It offers a variety of measurement functions suitable for both laboratory and field use, providing users with accurate readings to meet various testing needs.

Specifications

  • 感測器類型高精度電壓電流感應器
  • 工作溫度23±5℃ 相對濕度為80％以下
  • 解析度DCV 最小0.1mV, DCA 最小0.1uA
  • 直流電壓範圍 200mV ~ 600V, 準確度 0.5%+1
  • 交流電壓範圍 200mV ~ 600V, 準確度 1%+5
  • 直流電流範圍 200uA ~ 20A, 準確度 1%+1
  • 交流電流範圍 200uA ~ 20A, 準確度 1.2%+3
  • 電阻範圍 200Ω ~ 20MΩ, 準確度 0.8%+2

Features

  • 峰值鎖定是
  • 數值保持是
  • 顯示器3 1/2 LCD 最大讀值1999
  • 自動極性顯示是
  • 過載保護是

Attributes

  • Operating TemperatureTemperature 0 ~ 40℃, Humidity below 80%
  • Storage TemperatureTemperature -10 ~ 60℃, Humidity below 70%
  • Dimensions180 × 82 × 38mm
  • WeightApprox. 365 grams
  • Power SupplySingle 9V battery
