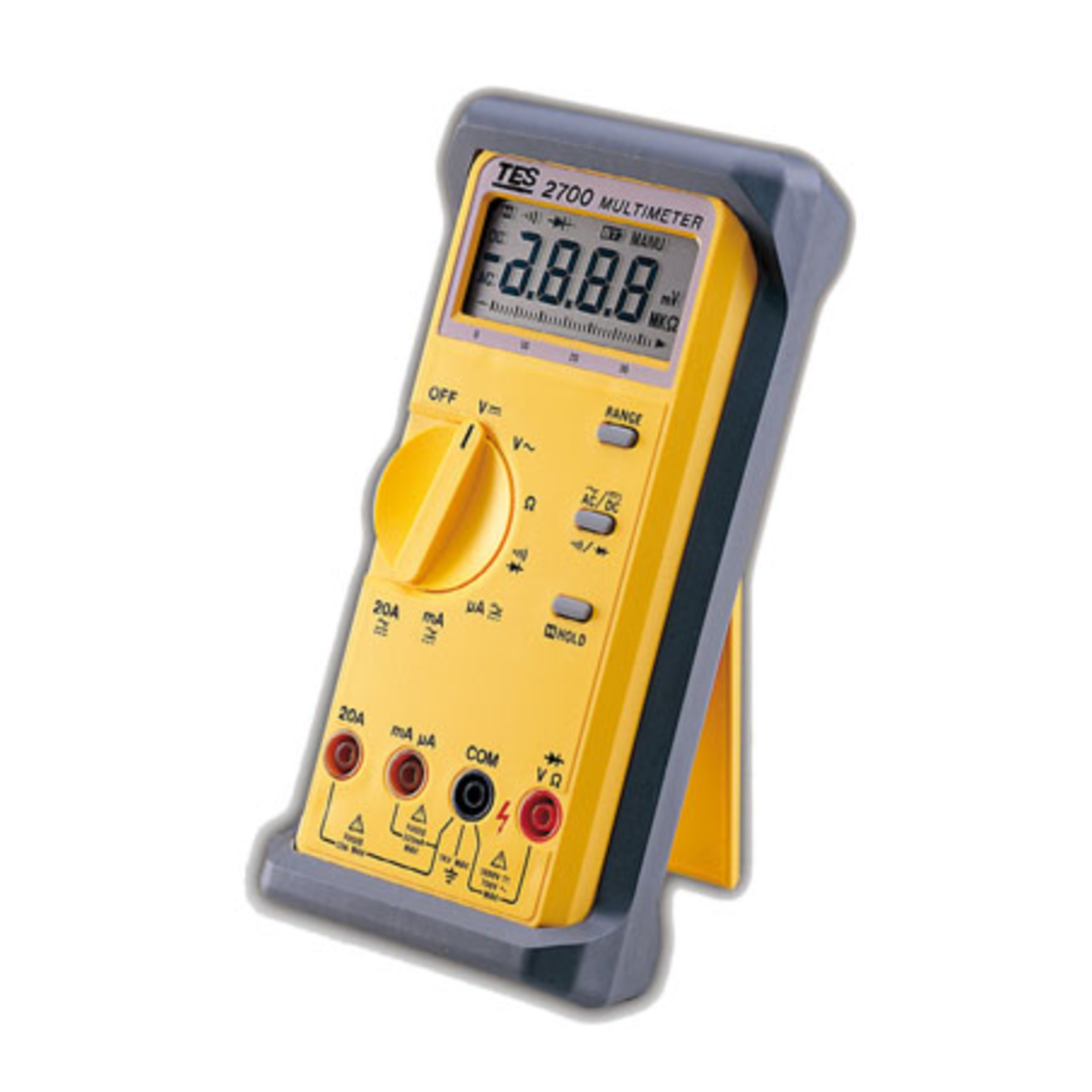

Automatic Range Digital Multimeter

Brand TES | Model TES-2700 | 🇹🇼 Taiwan
Automatic Range Digital Multimeter
• DC and AC voltage measurement range: 320mV ~ 600V • DC and AC current measurement range: 320uA ~ 20A • Resistance measurement range: 320Ω ~ 30MΩ • Automatic range selection improves measurement efficiency • Continuity and diode test functions • Overload protection ensures safe usage • Automatic or manual range selection available • Display: 3 1/2 LCD display • Max/Min value display function • Operating temperature range: 0 ~ 40 °C
Price NT$ 1,870
Out of Stock
Views: 48

Description

The TES-2700 Automatic Range Digital Multimeter is designed for a wide range of industrial applications, accurately measuring DC and AC voltage, current, and resistance. Its automatic range selection feature significantly enhances measurement efficiency while ensuring precision in various environments. With its stable performance and user-friendly interface, this multimeter is the ideal choice for professionals in maintenance, installation, and electrical testing.

Specifications

  • DC Voltage320mV ~ 600V
  • AC Voltage3.2V ~ 600V
  • DC Current320uA ~ 20A
  • Resistance320Ω ~ 30MΩ
  • Operating Temperature0 ~ 40 °C ±2°C
  • Humidity< 80% RH
  • AC Current320uA ~ 20A
  • 擷取速���12.5次/秒（類比），2次/秒（數位）

Features

  • Auto Range是
  • Continuity是
  • Diode Test是
  • Overload Protection是
  • 自動/手動選檔是
  • Max/Min是
  • Display3 1/2 液晶顯示

Attributes

  • Dimensions180 (L) × 82 (W) × 38 (H) mm
  • Weightapprox. 365 grams
  • Power SupplyUM-4 1.5V or two AAA batteries
  • Operating Temperature0℃ to 40℃
  • AccessoriesUser manual, fuse, test leads, batteries
