可程式噪音計
Brand
TES
|
Model
TES-1352S
|
🇹🇼 Taiwan

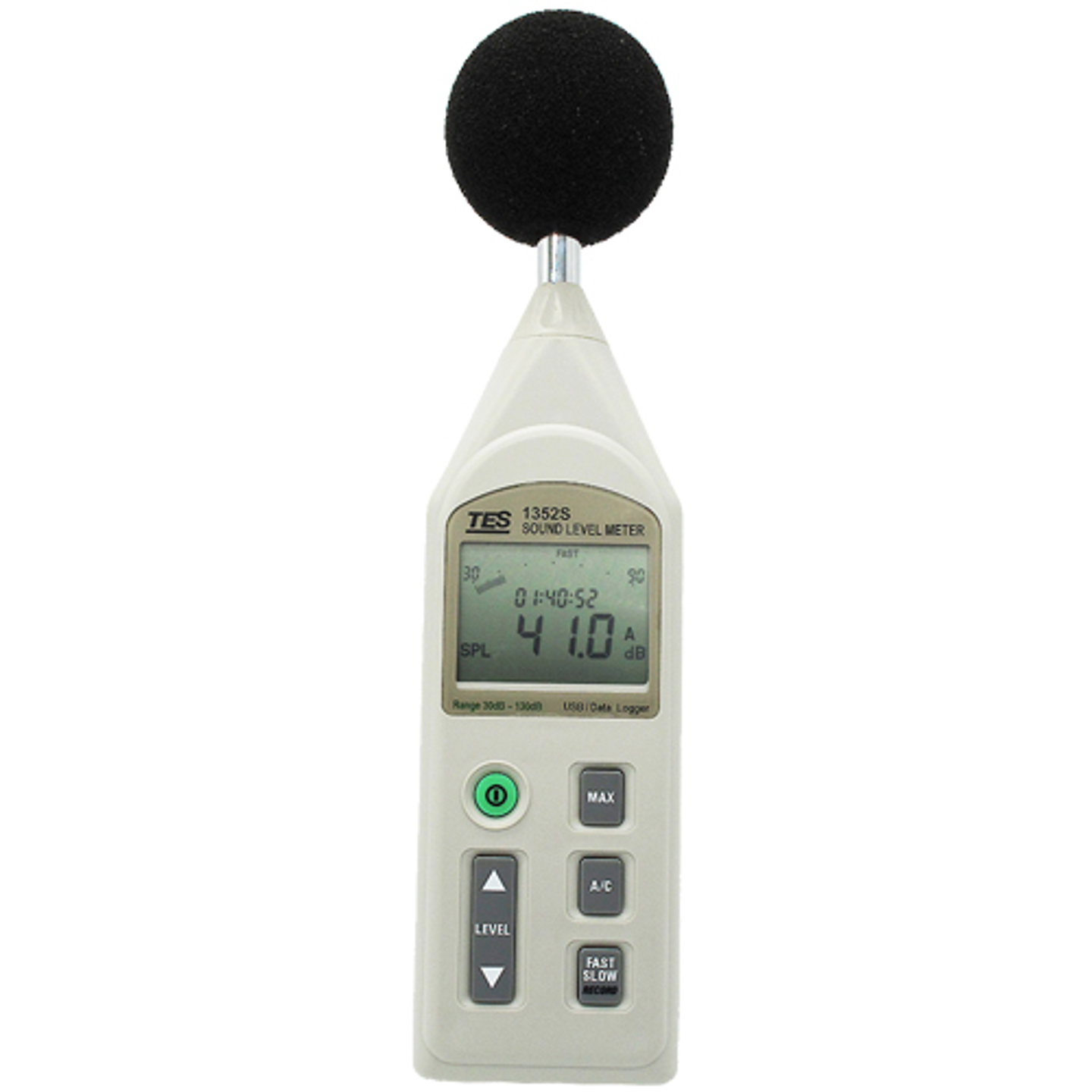

The TES-1352S is engineered for precise and reliable sound level measurements. It features fast and slow time weighting combined with A and C frequency weighting, providing a 60dB dynamic range with a 200M record capacity, great for long-term noise monitoring. It also supports data transmission and volume warning output for multiple testing needs.
Out of Stock
Views: 0
Description
The TES-1352S Programmable Sound Level Meter accurately measures and records noise levels, meeting multiple international standards for comprehensive noise monitoring capabilities in various environmental test applications.
Complies with IEC 61672-1 level 2 standard
Can measure maximum and peak volume simultaneously
Dynamic range 60dB
5 levels from 30 to 130dB
A and C frequency weighting
Fast and slow time weighting
200M data recording capacity (micro SD card)
USB interface
Volume warning output signal
Contains date and time functions
Specifications
- Applicable StandardsIEC61672-1: 2013 Class 2 • ANSI S1.4: 1983 Type 2
- Measuring Range30dB to 130dB
- Linear Range60dB
- Measurement itemsSPL - MaxL
- FrequencyA, C
- Time WeightingFast, Slow
- Accuracy±1.0dB (at reference sound pressure 94dB @1KHz)
- Microphone1/2 inch pre-polarized condenser microphone
- Measurement Settings5 levels at 10-dB intervals: 30~90dB, 40~100dB, 50~110dB, 60~120dB, 70~130dB
- Digital Display4-digit LCD, 0.1dB resolution, updated every second
- Warning Display FunctionOver-level indicator, Under-level indicator
Features
- Data Logging200M records capacity（micro SD Card）
- Interfaceyes
- Sound Levelyes
- Date and Time Functionyes
Attributes
- Dimensions265 (L) × 72 (W) × 36 (H) mm
- WeightApproximately 380g
- Power Supply4 pcs 1.5V LR-6/AA batteries, AC adapter
- AccessoryManual, batteries, carrying case, screwdriver, CD-ROM software, windscreen, USB cable, 3.5mm plug, microphone extension cable, AC adapter
