Sound Level Meter

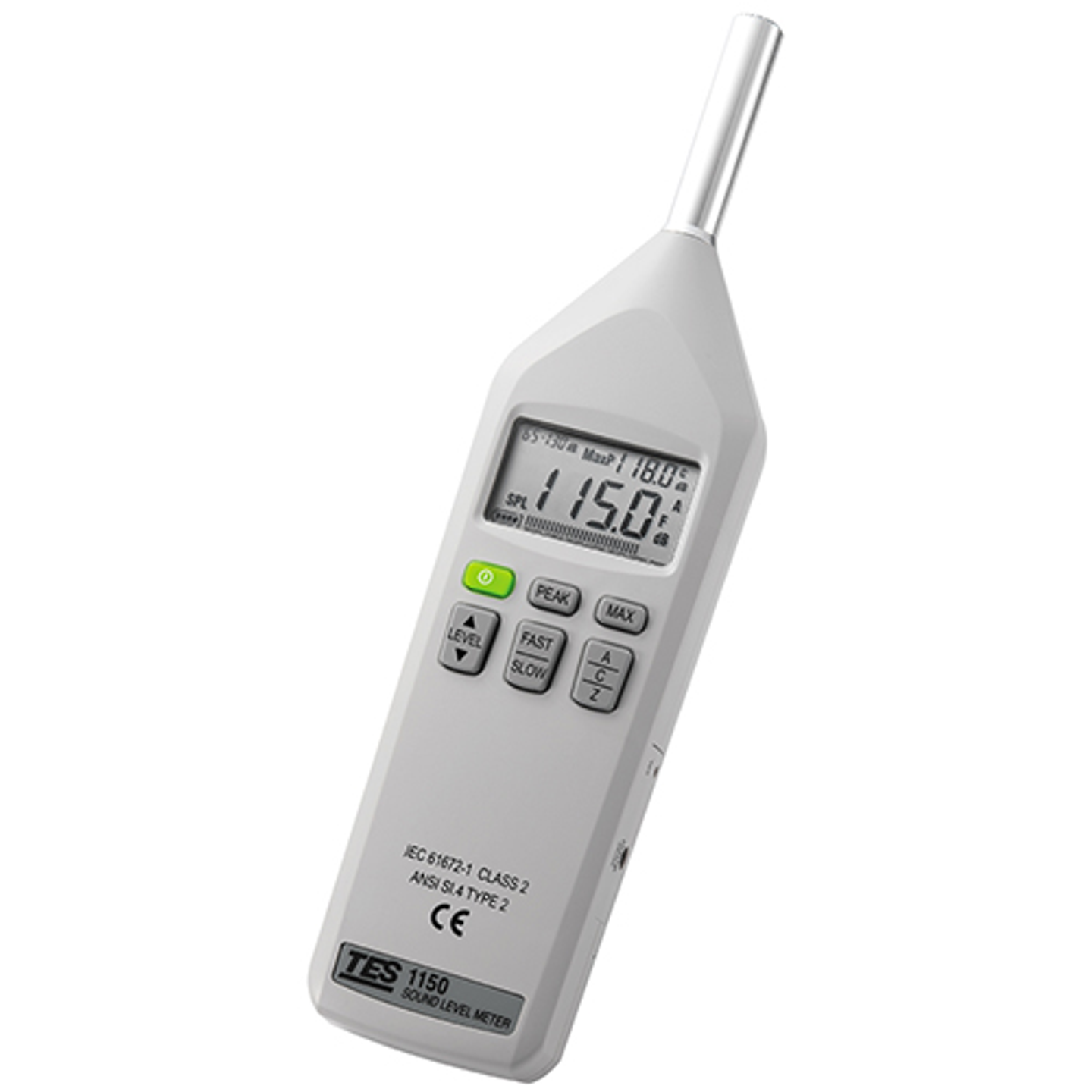

Brand TES | Model TES-1150 | 🇹🇼 Taiwan
Sound Level Meter
The TES-1150 sound level meter offers the following features: - Superior accuracy and multifunctional design - Compliance with IEC and ANSI standards - Suitable for various noise measurement scenarios - Max hold function for easy data saving - Supports A, C, Z frequency weighting options
Out of Stock
Views: 56

Description

The TES TES-1150 is a professional sound level meter designed for industrial and environmental noise monitoring. It features multiple frequency and time weighting options to meet various measurement needs. With support for data output and automatic data logging, it is an ideal choice for professionals conducting noise analysis. It complies with IEC and ANSI standards, ensuring measurement accuracy and reliability.

Specifications

  • Resolution0.1dB
  • Measuring Range30 – 90dB，45 – 110dB，65 – 130dB
  • Sound Frequency31.5Hz至8KHz
  • Accuracy±1.0dB (在參考音壓 94dB @1KHz)
  • Dynamic Range65dB
  • FrequencyA，C及Z
  • 時間加權F (Fast)、S (Slow)及 I (Impulse)
  • Microphone1/2 英吋預極化電容式麥克風

Features

  • 最大值鎖定功能是
  • Frequency是
  • A、C、Z 峰值鎖定功能是
  • AC/DC 輸出訊號是
  • Data LoggingmicroSD CARD 4GB

Attributes

  • Operating Temperature-10℃ to +50℃, 30% to 90%RH non-condensing
  • Storage Temperature-10℃ to +60℃, <70%RH non-condensing
  • Power SupplyOne 006P 9V or IEC 6F22 or NEDA 1604 battery
  • Battery LifeApproximately 24 hours
  • Dimensions246 (L)×64(W)×26(D)mm
  • Weight180g
  • AccessoriesManual, Battery, Carrying Case, 3.5mm Earphone Jack, Calibration Screwdriver, Windscreen
