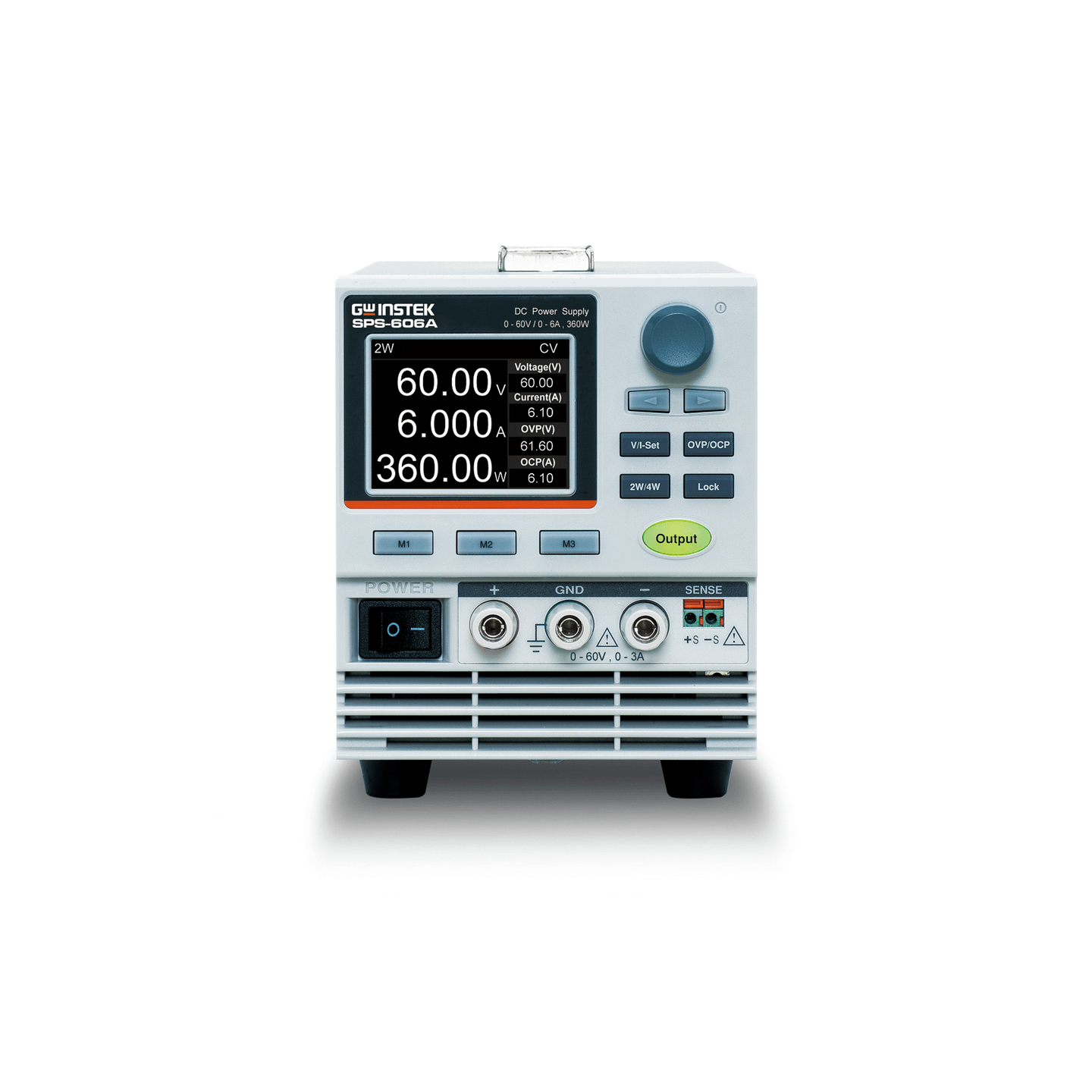

60 V/6 A 360W Single-Channel Switching DC Power Supply

Brand GWINSTEK | Model SPS-606A | 🇹🇼 Taiwan

直流電源供應器交換式電源供應器 GWINSTEK 單通道 360 W 60 V / 6 A

The GWINSTEK SPS-606A is a 360W SPS-A Series single-channel switching DC power supply with 0~60 V / 0~6 A output, Remote Sensing, OVP/OCP/OTP, and a 2.4-inch TFT-LCD display.

Out of Stock

The GWINSTEK SPS-A Series is a new-generation switching DC power supply that replaces the original SPS Series. It uses an encoder switch digital knob and a 2.4-inch TFT-LCD color display for more intuitive voltage and current setup. Remote Sensing with 2-wire/4-wire switching compensates line voltage drop for accurate load-side voltage, while OVP, OCP, OTP, output On/Off, panel lock, three memory presets, and power-on state setup support R&D, education, production testing, and automated test environments.

Output Voltage0~60 V
Output Current0~6 A
Display2.4-inch TFT-LCD color display
Total Output Power360 W
Voltage Setting Resolution10 mV
Current Setting Resolution10 mA
Voltage Readback Resolution10 mV
Current Readback Resolution1 mA

ChannelsSingle channel
Output ControlIndependent output
Independent Output SwitchOutput On/Off control
Remote SensingSupports 2-wire/4-wire switching
Overload ProtectionOVP, OCP, and OTP
Memory FunctionThree preset memory/recall settings plus one power-on state setting
Panel LockLock function prevents accidental operation
Control I/OSupported
Rack Mount SupportGRA-441-J / GRA-441-E

Operating TemperatureNot found on official page
Storage TemperatureNot found on official page
Altitude LimitBelow 1,000 m
Power SupplyAC input, region dependent
DimensionsNot found on official page
WeightVaries by model
Standard AccessoriesPower cord x1, packing list x1, GTL-105A x1 (standard jack terminal); European terminal includes GTL-203A x1 and GTL-201A x1
AccessoriesGTL-105A, GTL-201A, GTL-203A, GTL-204A, GRA-441-J, GRA-441-E
