太陽能電力計
Brand
LUTRON
|
Model
SPM-1116SD
|
🇹🇼 Taiwan

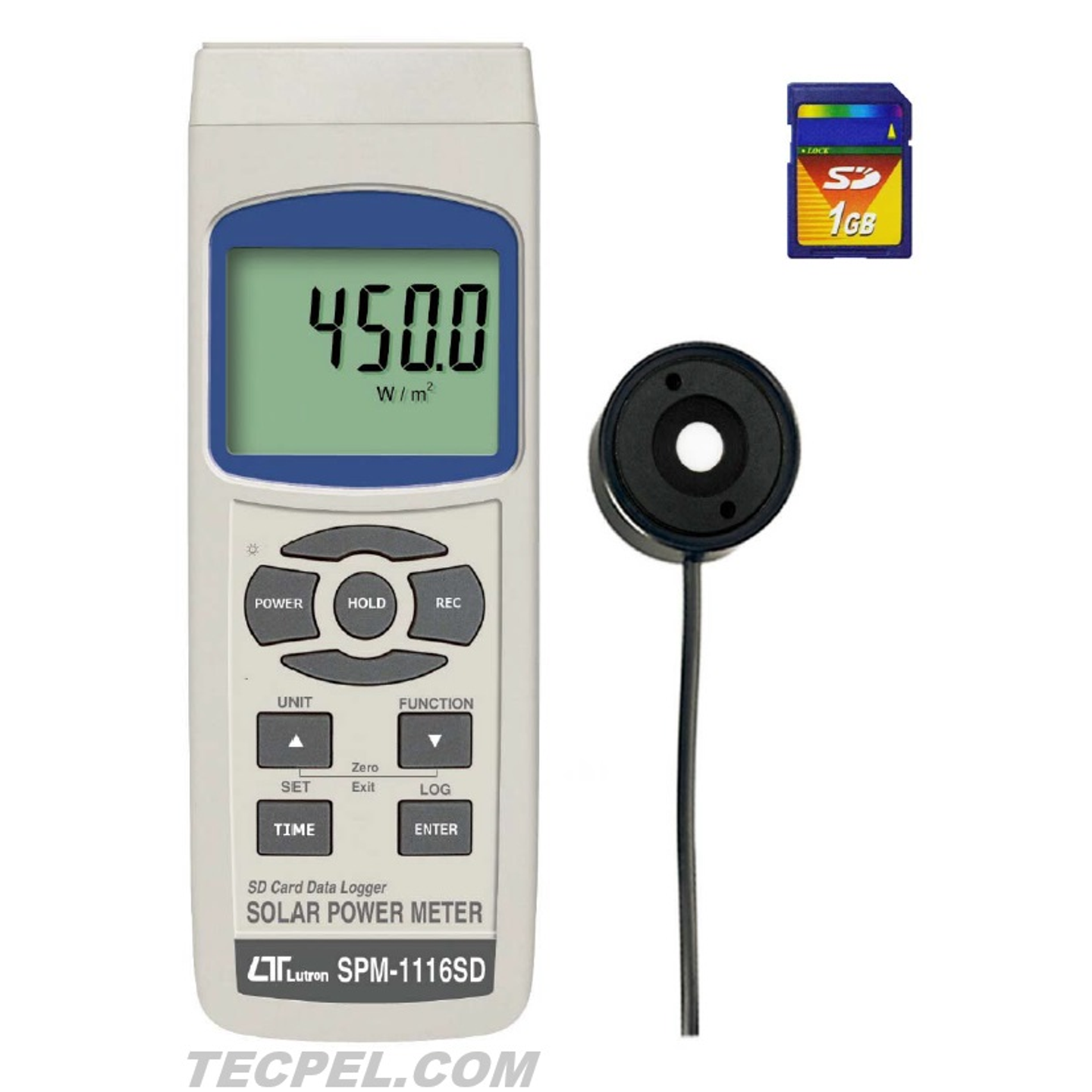

The Lutron SPM-1116SD Solar Power Meter has an advanced microprocessor LSI chip, supporting multiple measurement functions of solar power, power integration, and transmission. It features a real-time SD card data recorder that allows direct data transfer to a computer without software. Ideal for meteorology, agriculture, solar radiation studies, and physics optical labs applications.
Out of Stock
Views: 0
Description
The Lutron SPM-1116SD Solar Power Meter accurately measures solar power, power integration, and transmission. Featuring advanced microprocessor technology, a wide spectral range, stable long-term performance, and numerous practical features, it is an ideal environmental measurement tool.
Here is the image depicting an ideal environment for applications in meteorology, agriculture, solar radiation studies, and physics optical labs. It combines elements such as weather monitoring equipment, agricultural fields, solar panels, and a high-tech physics lab set against a clear sky with some clouds.
Specifications
- FunctionsSolar Power, Power Integration, Transmission
- Light Intensity400 to 1100 nm
- Measuring UnitsSolar Power: W/m², Btu/(ft² x h); Transmission: %; Power Integration: Wh/m², Btu/(ft²)
- Measuring RangeSolar Power: 0 to 2000 W/m², 0 to 634 Btu/(ft² x h)
- Resolution0.1 W/m² (below 1000 W/m²), 1 W/m² (above 1000 W/m²); 0.1 Btu/(ft² x h) (below 317 Btu/(ft² x h)), 1 Btu/(ft² x h) (above 317 Btu/(ft² x h))
- Accuracy±10 W/m² or ±3 Btu/(ft² x h), whichever is greater; Angular accuracy: Cosine corrected, <5% for angles < 60°
- Operating TemperatureTemperature: 0 to 50°C; Humidity: Less than 85% RH
- Power SupplyNormal operation: Approx. 6.5 mA (without SD card, backlight off); Data saving mode: Approx. 30 mA (without backlight); With backlight: Additional 16 mA
- DimensionsMain Instrument: 182 x 73 x 47.5 mm; Sensor Probe: 38 mm diameter x 25 mm height
- Weight346 g
Features
- Three FunctionsMeasures solar power, power integration, and transmission
- Advanced CircuitryCustom microprocessor LSI chip
- Wide Spectral Range400 to 1100 nm
- Stable PerformanceGuaranteed long-term stability
- Versatile Display52 mm x 38 mm LCD with optional green backlight
- Multiple Power UnitsSelectable W/m² or Btu/(ft² x h) units
- Cosine CorrectionAccurate angle measurements
- Zero AdjustmentSimple push-button calibration
- Safety RatingIdeal for meteorology, agriculture, solar radiation studies, physics, optical laboratories, and more
- Datalogger FunctionAutomatic logging from 1 second to 3600 seconds
- Manual LoggingSet to zero for manual data logging with up to 99 positions
- Separate ProbeFacilitates measurements in various environments
- Tripod CompatibilityBoth meter and probe can be mounted easily
- Real-Time RecordingBuilt-in clock and calendar for accurate timestamping
- Easy Data TransferNo software needed; plug the SD card into a computer to download data directly into Excel
- SD Card CapacitySupports 1 GB to 16 GB cards
- Auto/Manual Power OffUser-selectable power management
- Data HoldFreeze current readings
- Memory RecallMaximum and minimum value storage
- PC InterfaceRS232/USB for data output
- Power SupplyPowered by six UM3/AA (1.5V) batteries or a 9V DC adapter
Attributes
- Operating TemperatureTemperature: 0 ~ 50°C; Humidity: Less than 85%RH non-condensing
- DimensionsMain Instrument: 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inches); Sensor Probe: 38 mm diameter x 25 mm height
- Weight346 g (0.76 lb)
- AccessorySD Card (1 GB or 2 GB), AC to DC 9V Adapter, USB Cable (USB-01), RS232 Cable (UPCB-02), Data Acquisition Software (SW-U801-WIN, SW-E802)
