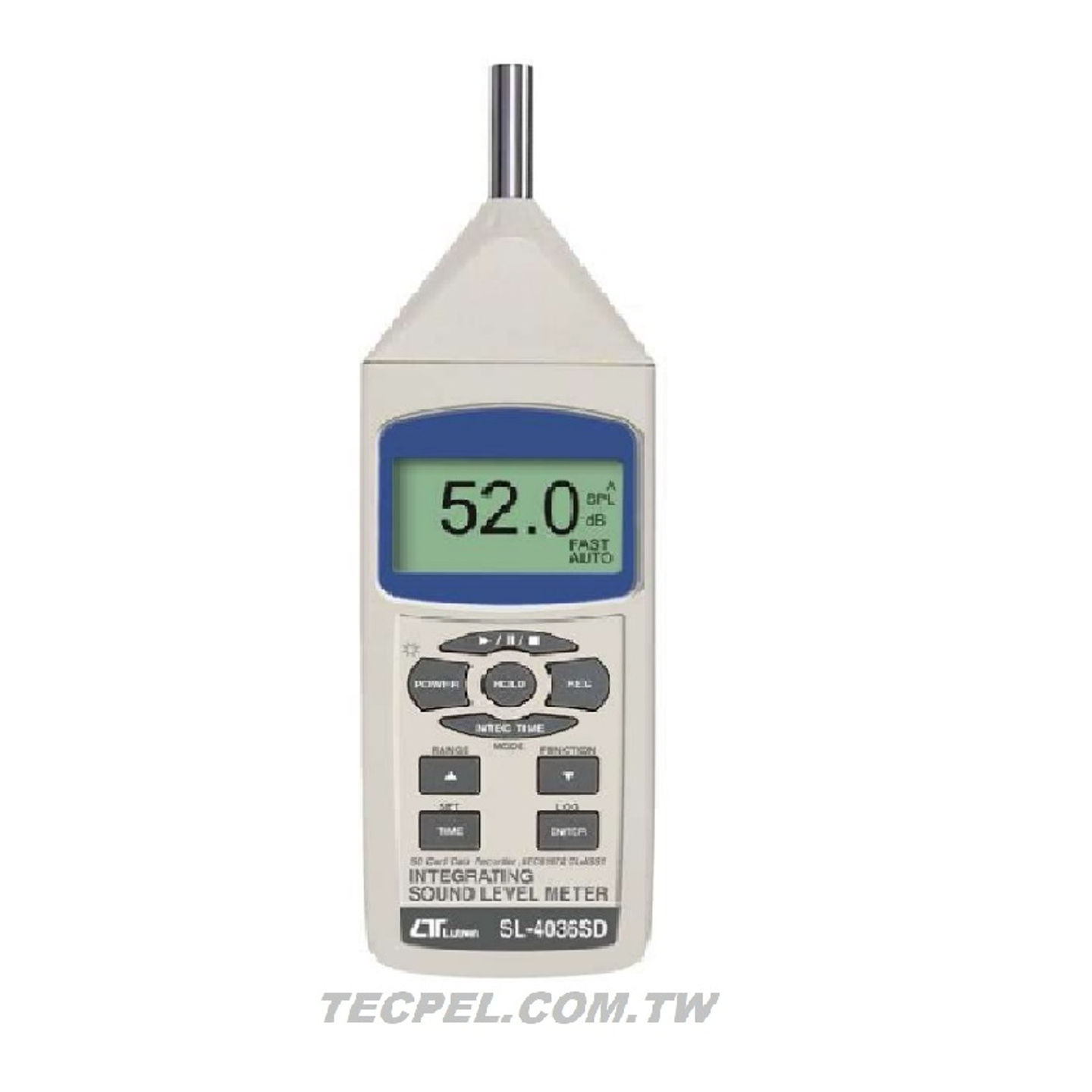

Integrating Sound Level Meter – Class 1
Brand
LUTRON
|
Model
SL-4036SD
|
🇹🇼 Taiwan
• High-precision measurement capabilities suitable for industrial noise monitoring
• Real-time data recording stored to SD card (1-16 GB)
• Automatic (30-130 dB) / Manual (30-80 dB, 80-130 dB) range selection
• Measurement modes: SPL, Leq, with overload/underload indication
• Frequency range: 31.5 Hz to 16 kHz
• A/C frequency weighting and fast/slow time weighting options
• LCD display with backlight
• RS232 / USB interface and AC output (0.5 Vrms, 600 Ω)
• Supports external calibration compatible with SC-942 or B&K 4226
• Power supply: 6 UM3/AA batteries or DC 9V adapter
Price
NT$ 15,000
Out of Stock
Views: 0
Description
The SL-4036SD Integrating Sound Level Meter – Class 1 is a high-precision sound measurement instrument designed for monitoring noise levels in industrial environments. This meter features real-time data recording capabilities, allowing for automatic or manual range selection, ensuring accurate assessment of noise levels, and is widely used in quality control and environmental monitoring.
Specifications
- 量測範圍自動範圍: 30–130 dB; 手動範圍: 30–80 dB, 80–130 dB
- 頻率範圍31.5 Hz 到 16 kHz
- 解析度0.1 dB
- 顯示器51 × 30 mm 液晶螢幕，綠色背光
- 精確度23 ±5 °C，94 dB 輸入: 31.5 Hz: ±1.5 dB; 63–500 Hz: ±1.0 dB; 1 kHz: ±0.7 dB; 2–4 kHz: ±1.0 dB; 8 kHz: +1.5/–2.5 dB; 12.5 kHz: +2.0/–5.0 dB; 16 kHz: +2.5/–16.0 dB
Features
- 實時記錄直接儲存數據到 SD 卡
- 安全等級是
- 頻率A / C 頻率加權
- 時間加權快 (125 ms) / 慢 (1 s)
- 介面RS232 / USB; AC 輸出 (0.5 Vrms, 600 Ω)
Attributes
- Weight323 g (0.71 lb)
- Dimensions245 × 68 × 45 mm (9.6 × 2.7 × 1.8 in)
- Operating TemperatureTemp: 0–50 °C, Humidity: <85% RH
- Power Supply6 × UM3/AA batteries (1.5V) or DC 9V adapter
- AccessoryHard carrying case, Instruction manual, Optional USB / RS232 cables
