Sound Level Meter

Brand LUTRON | Model SL-4030 | 🇹🇼 Taiwan

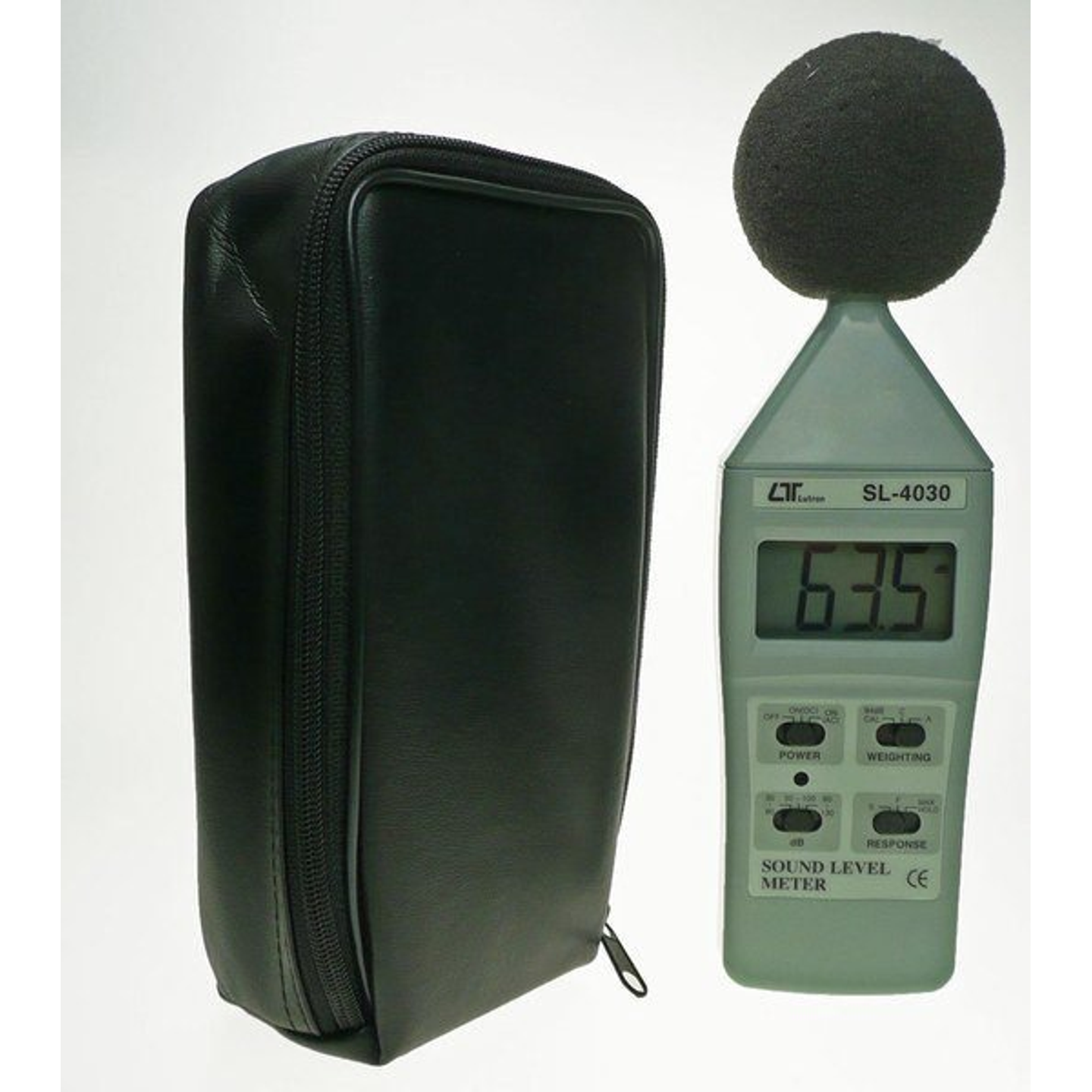

Sound Level Meter
SL-4030 - 1
SL-4030 - 2
• Utilizes a capacitive microphone for high accuracy and stability • Complies with IEC 61672 Class 2 standards • Fast (t=200 ms) and slow (t=500 ms) weighting functions • Equipped with AC/DC output to expand system capabilities • Features max hold, low battery indication, and overload/underload alerts
Out of Stock
Views: 0

Description

The LUTRON SL-4030 Sound Level Meter is a professional noise measurement instrument that meets IEC 61672 Class 2 standards, featuring a large display and multiple weighting network options. Its capacitive microphone design offers exceptional accuracy and long-term stability, making it suitable for various noise monitoring applications.

Specifications

  • Microphone TypeCapacitive microphone
  • Measurement RangeA-weighting 30 to 130 dB, C-weighting 30 to 130 dB
  • Resolution0.1 dB
  • Accuracy31.5 Hz to 8 kHz: ±0.3 to ±5.6 dB
  • Weighting NetworkA & C weighting networks
  • Fast Weighting Timet=200 ms
  • Slow Weighting Timet=500 ms
  • Operating Temperature0 to 50 ℃
  • Power Supply006P DC 9V battery or DC 9V adapter

Features

  • Max Hold Functionyes
  • Low Battery Indicationyes
  • Overload/Underload Alertyes
  • AC/DC Outputyes

Attributes

  • Appearance Dimensions200 x 69 x 28 mm (7.9x2.7x1.4 inch)
  • Weight213 g
  • AccessoryUser manual
