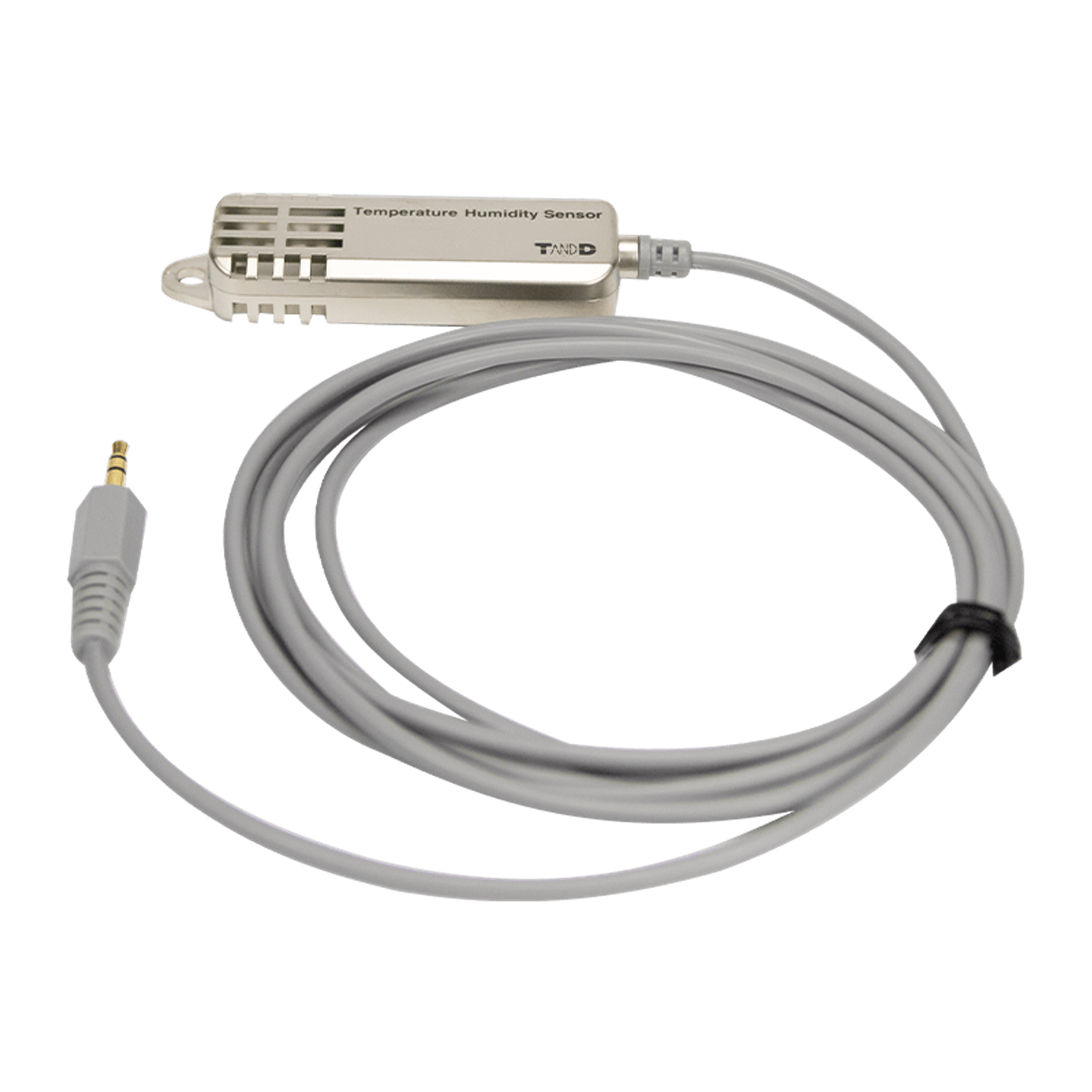

High Precision Temperature and Humidity Sensor

Brand T&D | Model SHA-3151 | 🇯🇵 Japan
High Precision Temperature and Humidity Sensor
SHA-3151 - 1
SHA-3151 - 2
Known for its high precision measurement, the SHA-3151 accurately detects temperature and humidity in various harsh environments, suitable for research and industrial applications requiring stable data. Product Information High-precision temperature and humidity control (polymer membrane resistance type) for TR72A2, TR-72nw, TR-74/76Ui, RTR-574/576. The electrostatic capacitance type capacitor can be used in high-humidity environments and various conditions such as deterioration of accuracy and improvement of environmental resistance. It is difficult to maintain humidity accuracy due to environmental factors, but stable and high-precision measurement is possible. 【Applicable models】 TR72A2/72A2-S, TR-72nw/72nw-S TR-74Ui/74Ui-S, TR-76Ui/76Ui-S RTR-574/574-S, RTR-576/576-S Final production products: TR72A/72A-S TR-72wb/72wb-S TR-72wf/72wf-S, TR-72wf-H TR-72nw-H TR-74Ui-H, TR-76Ui-H RTR-574-H, RTR-576-H TR-77Ui
Out of Stock
Views: 2

Description

The SHA-3151 high precision temperature and humidity sensor can be applied in industrial and research environments, offering accurate temperature and humidity data crucial for environmental monitoring. パッケージContents High-precision temperature and humidity sensor SHA-3151 Measurement range Temperature/humidity -25～70°C/0～99%RH * * The environment and humidity above 60°C are subject to annual changes. Measurement of humidity below -20°C is also possible. Measurement accuracy Temperature ±0.3°C at 10～40°C ±0.5°C Other than humidity ±2.5%RH at 15～35°C, 30～80%RH Humidity accuracy range 90% answered about 7 points The length of the cabinet is 1.5m Able to be Extended to a length 9.0m

Specifications

  • Sensor TypeCapacitive sensor
  • Operating Temperature-25 ~ 70 °C ±0.3 °C 10 to 40°C, ±0.5°C other temperatures
  • Humidity Range0 ~ 99 %RH ±2.5 %RH
  • Resolution0.1°C / 0.1 %RH
  • Response TimeApprox. 7 minutes to 90%

Features

  • Recording IntervalN/A
  • Max/Minyes
  • Record ModeN/A
  • Alarm FunctionN/A
  • Analog ScaleN/A

Attributes

  • Operating TemperatureTemperature -25 ~ 70°C, Humidity less than 95%RH
  • Storage TemperatureTemperature -40 ~ 80°C, Humidity less than 95%RH non-condensing
  • Elevation LimitationShould be below 2,000 meters
  • Safety RatingN/A
  • Power SupplyNot Required
  • Accessory1.5m cable
