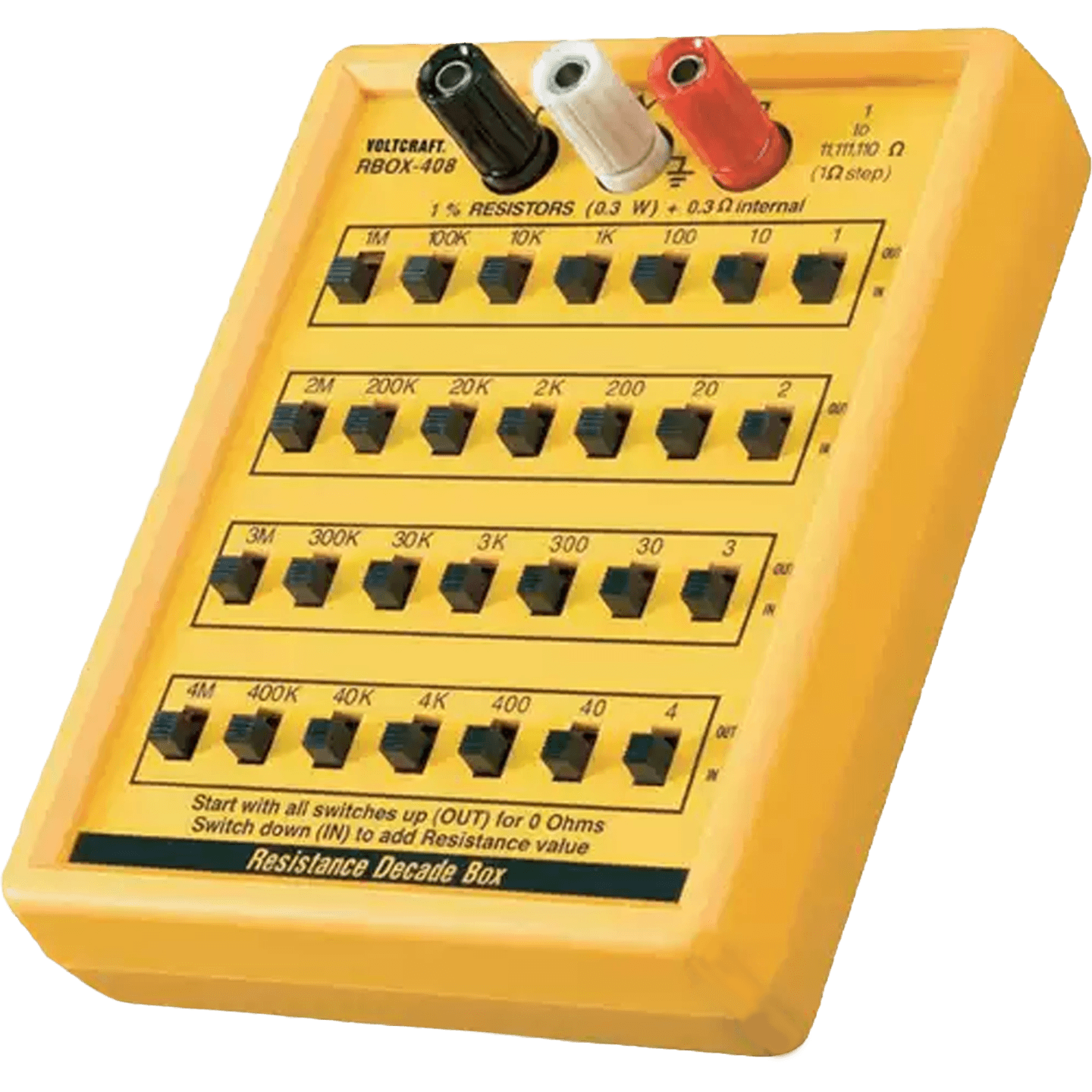

Resistor Box
Brand
LUTRON
|
Model
RBOX-408
|
🇹🇼 Taiwan
Seven-decade resistance box design enables precise adjustment of the required resistance value to meet various testing and calibration needs. Whether for equipment maintenance, electronics education, or professional R&D applications, it delivers a stable and reliable operating experience. Its compact body is easy to carry, making it suitable for both laboratory and field use. Equipped with a slide switch and multiple terminal configurations, wiring and operation become faster and more flexible, greatly improving work efficiency.
Price
NT$ 2,650
Out of Stock
Views: 54
Description
The RBOX-408 Resistor Box is an efficient testing instrument designed for various applications, including general maintenance, troubleshooting, education, and production line testing. With a measurement range from 1 to 11,111,110 ohms, it is available in both tabletop and portable formats for user convenience.
Specifications
- Measuring Range1 to 11,111,110 ohm (1 ohm per step)
- Accuracy1 W (± 1%)
- Resistance0.3 ohm max.
- Power Supply無
- Operating Temperature0 ℃ to 50 ℃ (32 ℉ to 122 ℉)
- Operating Environment Humidity小於 80% RH
Features
- Portability是
- 滑動開關設計是
- Resistance是
- 多途端子配置是
Attributes
- Dimensions14.7 cm x 11.7 cm x 4.7 cm (5.79 x 4.61 x 1.85 inch)
- Weight320 g (0.70 lb)
- AccessoriesTest alligator clips, one pair, TL-05
