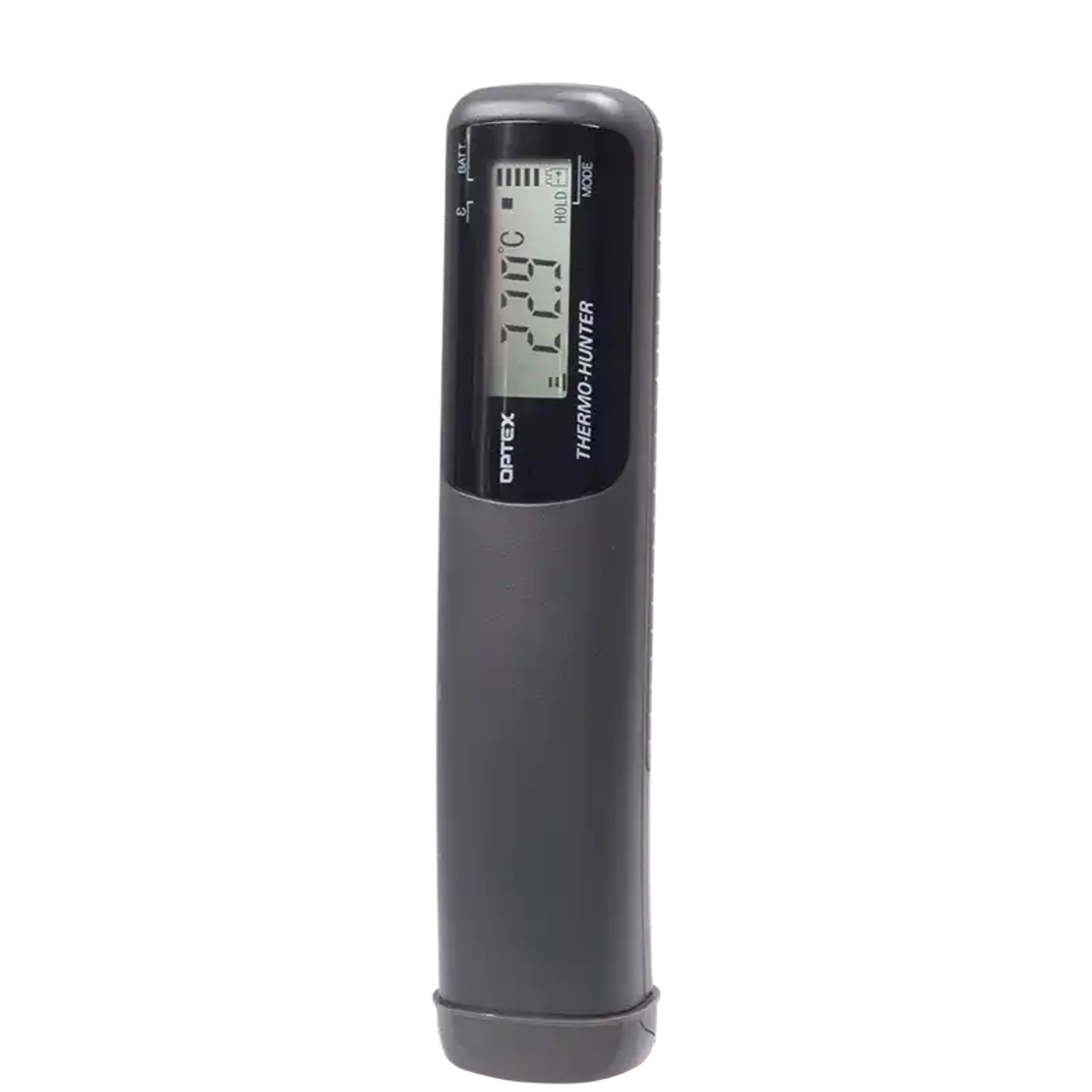

Fine-Spot Infrared Thermometer OPTEX PT-3S @ 2.5 mm
Brand
OPTRIS
|
Model
PT-3S
|
🇯🇵 Japan
The Japanese OPTEX PT-3S infrared non-contact thermometer is specifically designed for electronic circuit maintenance, featuring:
- Accurate measurement for small targets down to 2.5 mm
- Fast response time to enhance maintenance efficiency
- Focusing indication with a red LED light
Out of Stock
Views: 0
Description
The OPTEX PT-3S Fine-Spot Type Infrared Thermometer is designed with superior performance, capable of accurately measuring targets as small as 2.5 mm. It is particularly suitable for quality control of heated components, product development, and electronic design applications. This thermometer offers a safe, convenient, and fast tool for electronic circuit maintenance, enabling users to efficiently complete their measurement tasks.
Specifications
- Measurement Range0 ~ 200 °C
- AccuracyReading ±2 °C ±1 digit
- Resolution0.1 °C
- Minimum Spot Size2.5 mm @ 25 mm
- Response Time800 ms
Features
- 發射率0.7 / 0.95
- 對焦指示紅色LED燈
- 訊號輸出1mV/°C
Attributes
- Operating Temperature0~50 °C / 30~85% RH (non-condensing)
- Storage Temperature-20~70 °C / Below 70% RH (non-condensing)
- Altitude LimitationBelow 1,000 meters
- Power SupplyAAA Battery (x3)
- Dimensions175 x 38 x 25.5 mm
- Weight120 g
- AccessoriesManual, Storage Case, Batteries
