Digital Multi-Meter
Brand
PROVA
|
Model
PROVA-903
|
🇹🇼 Taiwan

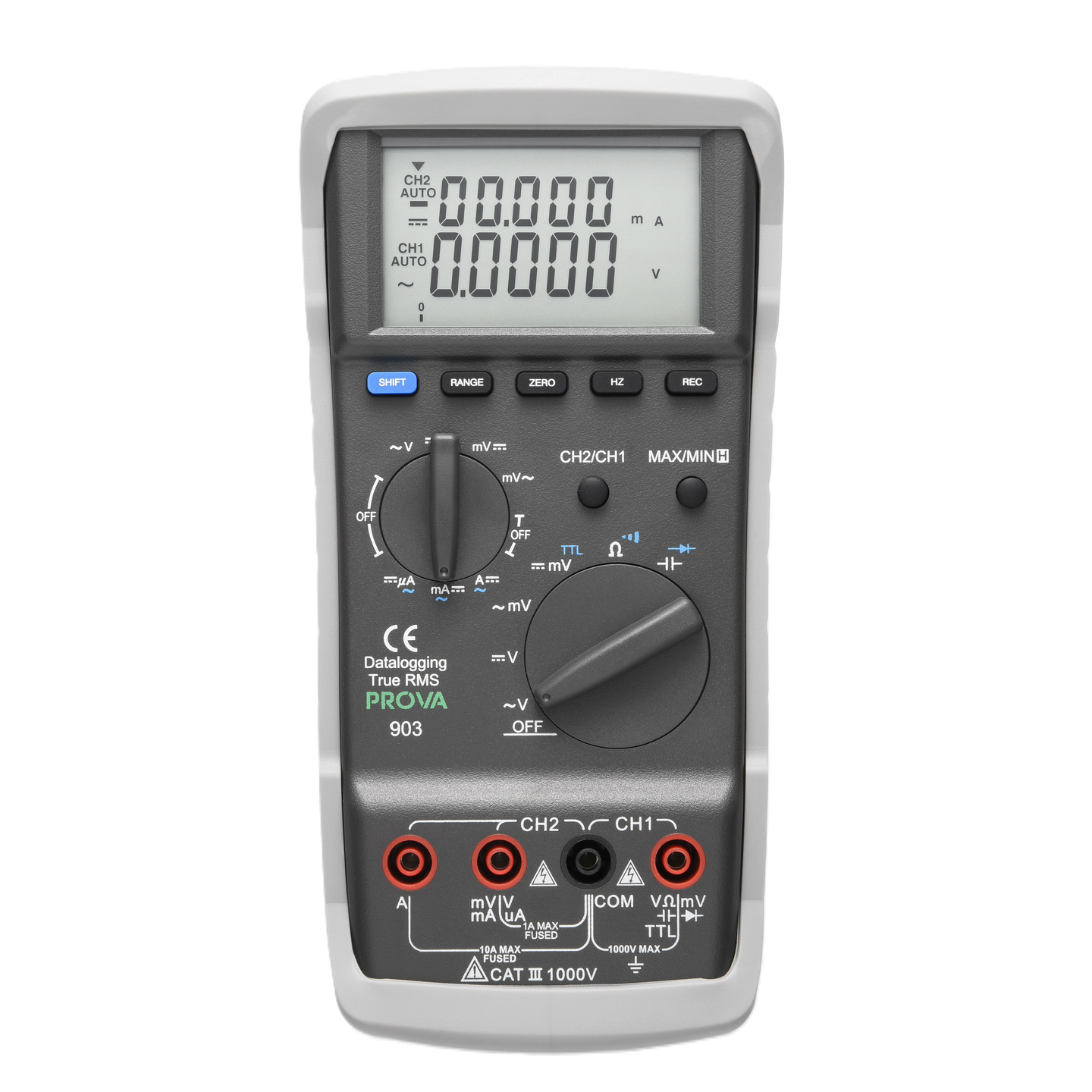

The PROVA 903 Digital Multi-Meter is renowned for its versatility, especially suited for industrial applications.
- Supports AC and DC voltage and current measurements
- Provides resistance, capacitance, and frequency testing
- Automatic and manual range selection for flexible operation
- 5+5 digit LCD display for clear readability
- Comprehensive overload protection ensures safe usage
Out of Stock
Views: 0
Description
The PROVA 903 Digital Multi-Meter offers high-precision measurement capabilities designed for industrial environments. Its multifunctional display supports dual-channel operation, allowing for various voltage and current tests, whether AC or DC. Additionally, it features resistance, capacitance, and frequency testing, catering to diverse measurement needs.
Specifications
- 交流電壓60mV 到 1000V，解析度1μV，最高精度±0.1%
- 直流電壓ACV: 60mV - 1000V，DCV: 60mV - 1000V，±0.1%±20 讀數
- 交流電流600μA 到 10A，解析度0.01μA，最高精度±0.3%
- 直流電流ACA: 600μA - 10A，DCA: 600μA - 10A，±0.3%±20 讀數
- 電阻999.99Ω - 40MΩ，±0.19%±8 讀數
- 頻率1Hz - 2MHz，±0.005%±4 讀數
Features
- 通道數賦能多核心電路
- 數位顯示5+5位數LCD顯示
- 過載保護全方位過載保護 AC/DC 1000V
- 自動與手動量程選擇支持自動及手動範圍選擇
- 低電量指示使用安全舒適
Attributes
- Dimensions207mm × 101mm × 47mm
- Weight430g (including battery)
- Operating Temperature-10°C to 40°C
- Safety RatingUSB and RS-232
- Storage Temperature-20°C to 60°C
- AccessoryUser manual, 9V battery, USB to RS-232 cable, software CD
