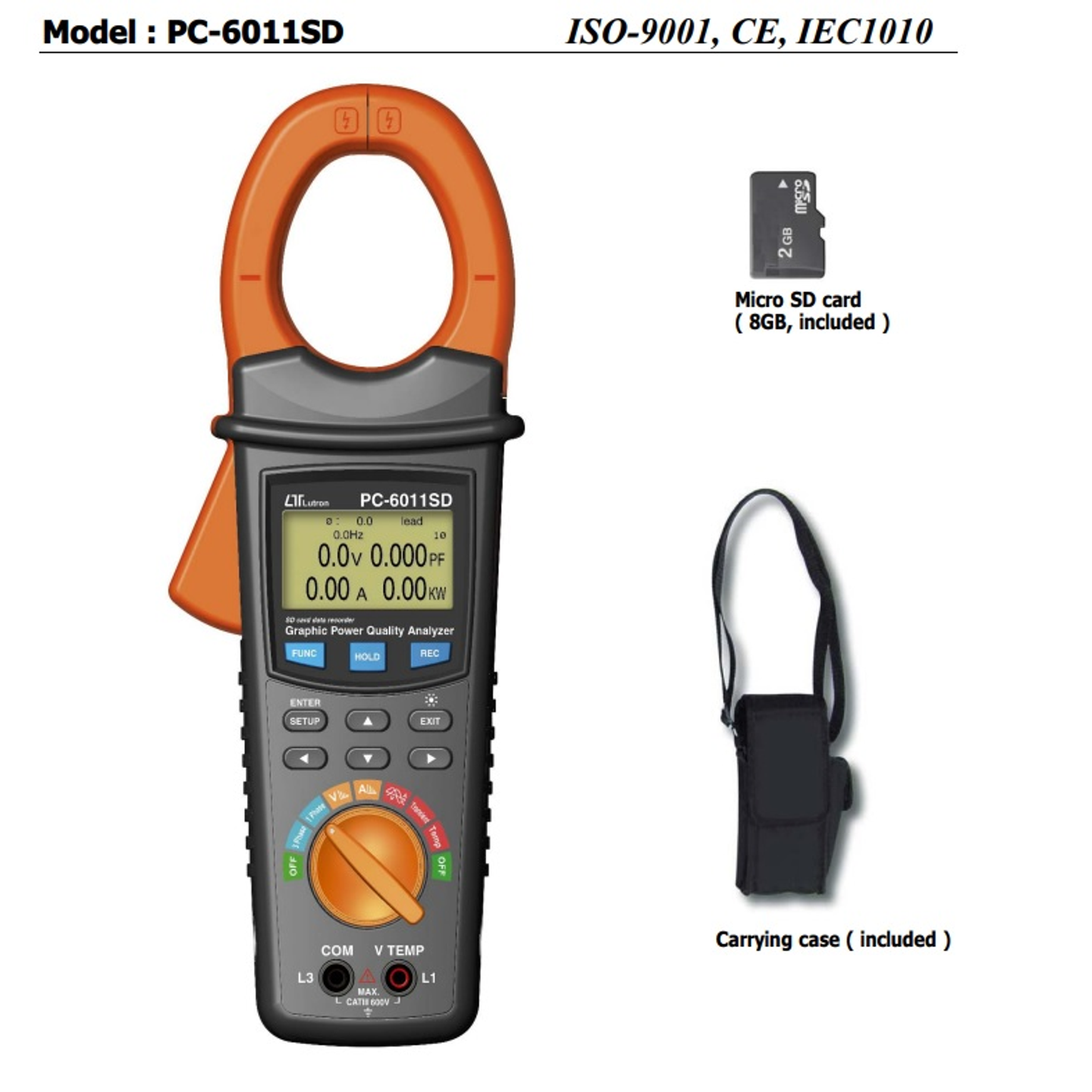

PC-6011SD Clamp Power Analyzer
Brand
LUTRON
|
Model
PC-6011SD
|
🇹🇼 Taiwan
The PC-6011SD is an ideal industrial tool with the following features:
- Measures voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVAR)
- Power factor (PF), energy (kWh, kVAh, kVARh, PFH) and phase angle (Φ)
- True RMS measurement, accommodating conductors up to 2.2 inches
- Supports real-time data logging to 8 GB micro SD card
- Graphic phasor diagram display and voltage/current harmonic analysis (1-50th order)
- Programmable threshold for capturing transient events like surges, sags, and interruptions
Out of Stock
Views: 1
Description
The LUTRON PC-6011SD Clamp Power Analyzer is a user-friendly multifunctional tool designed for power quality analysis in single-phase and balanced three-phase systems. It features real-time data logging capabilities, measuring various parameters such as voltage, current, power, and temperature, with storage capacity of up to 8 GB. Whether for industrial applications or power system diagnostics, the PC-6011SD provides precise electrical measurements and comprehensive power quality analysis.
Specifications
- 溫度範圍0 to 50 °C
- 相��值模式80% Relative Humidity max
- 電源DC 1.5V, AA (UM-3) Battery X 2 PCs
- 直流電壓10 to 600 ACV
- 直流電流5 to 2000 ACA
- 安全等級IEC 1010, CAT IV 600V
Features
- 記錄容量Micro SD CARD 32 GB maximum
- 資料傳輸USB/RS232
- 節點圖形Graphic Phasor Diagram
- 線形系數分析Voltage and Current harmonic analysis (1-50th order)
- 三相系統Power quality analyzer for single-phase or balanced three-phase system
Attributes
- Power SupplyAlkaline AA × 2 OR 9V power adapter
- AccessoryTest Leads, Alligator clips, AC to DC 9V adapter, 8 GB micro SD card, Carrying case
- Model Dimensions11.0 X 4.2 X 1.9 inches (280 X 106 X 47mm)
