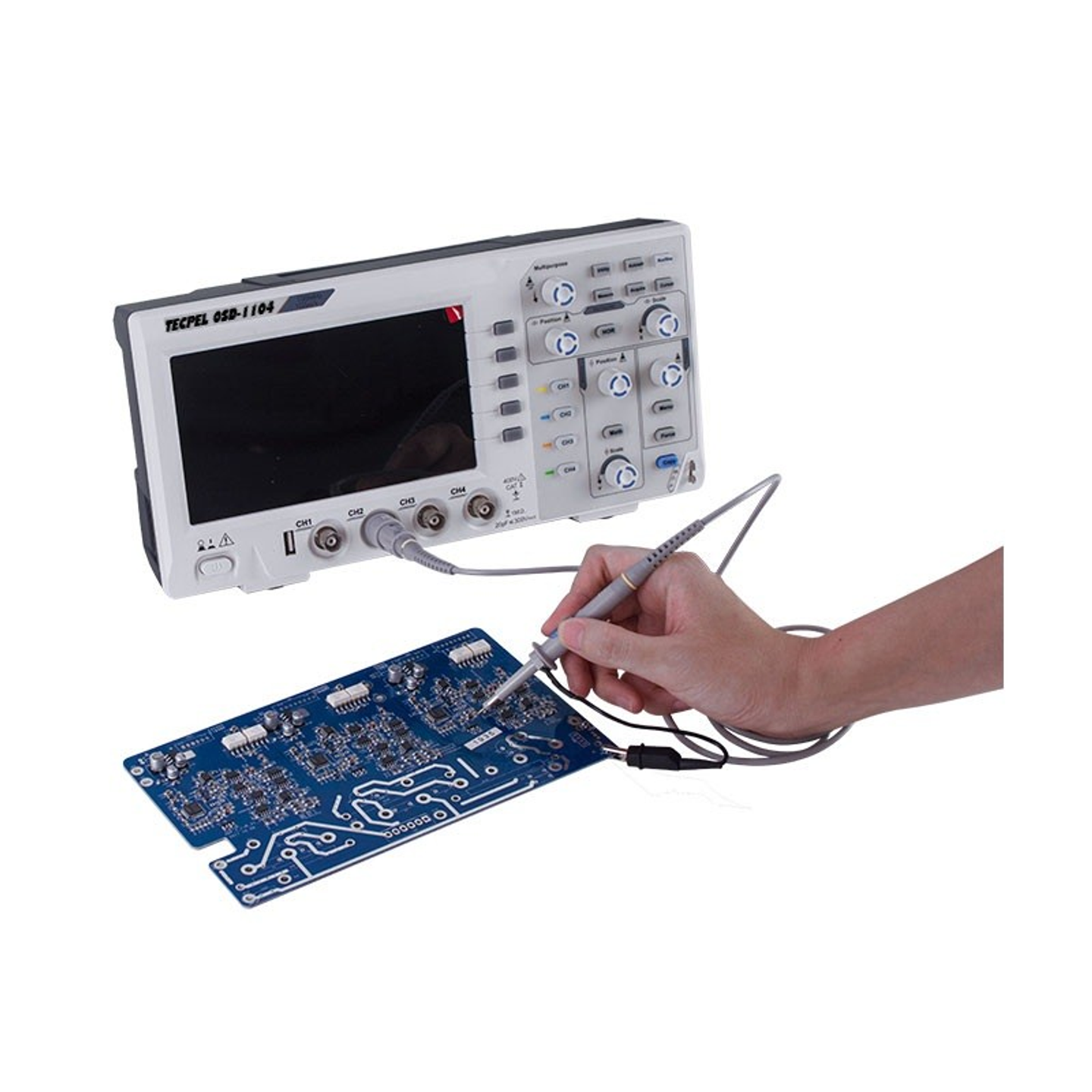

Digital Oscilloscope
Brand
TECPEL
|
Model
OSD-1104
|
🇨🇳 China
The OSD-1104 offers various measurement options including automatic and cursor measurements, and supports SCPI and LabVIEW graphical programming. Equipped with a 7-inch high-resolution LCD for an intuitive user interface.
Price
NT$ 9,900
Out of Stock
Views: 1
Description
The OSD-1104 Digital Oscilloscope offers a 100MHz bandwidth with 4 input channels, ideal for circuit signal testing, making it perfect for engineers and technicians.
Key Selling PointsHigh Performance Bandwidth (100 MHz) – captures fast and complex signals with accuracy.
4 Independent Channels – analyze multiple signals simultaneously.
Fast Sampling Rate (1 GS/s) – ensures precise signal details.
Ultra-Thin Compact Design – lightweight and easy to carry (only 1.1 kg).
7-inch High-Resolution LCD Display (800 × 480 pixels) – crystal-clear waveform viewing.
SCPI & LabVIEW Supported – ideal for automated test systems and integration.
Low Power Consumption (< 15 W) – energy efficient and environmentally friendly.
Specifications
- Bandwidth100MHz
- Sampling Rate1GS/s
- Horizontal Scale2ns/div - 1000s/div, step by 1-2-5
- Channels4
- Display7" color LCD, 800 x 480 pixels
- Record Length20K
- Measurement TypesVoltage, Time, Frequency
- Probe Attenuation Factor1X, 10X, 100X, 1000X
- Input CouplingDC, AC, and GND
- Vertical Sensitivity5mV/div - 5V/div (at input)
- Trigger TypeEdge, Video
- Trigger ModeAuto, Normal, Single
- Cursor Measurement△V, △T
- Auto MeasurementVarious voltage and time measurements
- Waveform16 waveforms
- Safety RatingUSB host, USB device
- Frequencyavailable
- Power Supply＜15W
Features
- Protocol SupportSCPI, LabVIEW
- Ultra-thin DesignYes
- ResolutionYes
- Versatile Measurement FunctionsYes
Attributes
- Dimensions301 x 152 x 70 mm
- Weight1.10 kg
- ColorGray
- Display TechnologyLCD
