記憶式三視窗溫度計

Brand LUTRON | Model MTM-380SD | 🇹🇼 Taiwan
記憶式三視窗溫度計

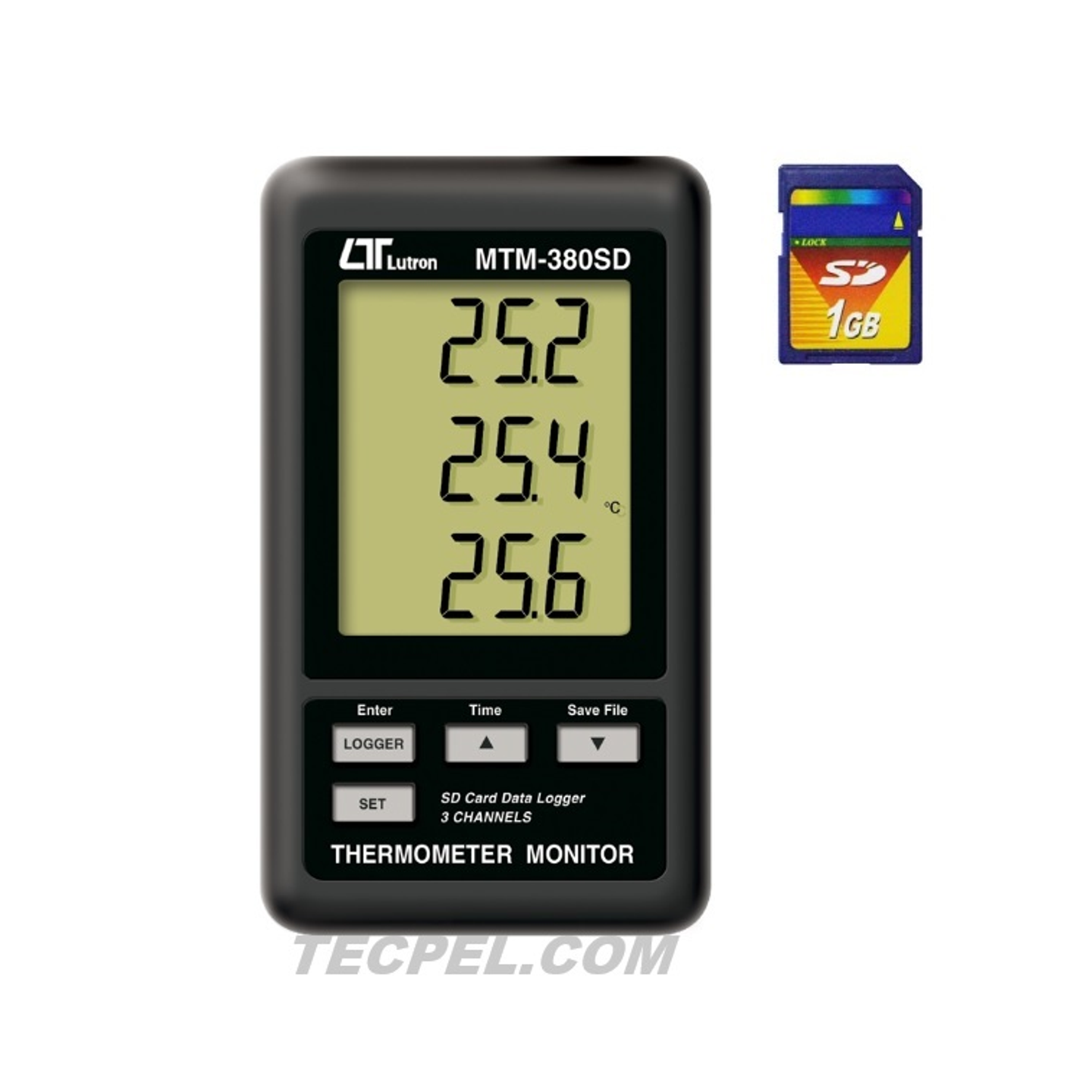

Lutron MTM-380SD Memory Type Triple Window Thermometer records measurement data in real-time to an SD memory card, convenient for subsequent download to Excel for data analysis. This thermometer features a triple-channel display, wide temperature range with a K type thermocouple, and a large LCD screen display, suitable for wall or desktop use. It offers value lock, max/min value recording, and can be equipped with an RS-232 or USB interface.
Price NT$ 4,050
Out of Stock
Views: 0

Description

The Lutron MTM-380SD Memory Type Triple Window Thermometer records data in real-time and has a wide measurement range. It is suitable for wall or desktop installation. Equipped with a large LCD screen and various power options, it offers high precision and low power consumption. An optional RS-232 or USB interface is available. Digital industrial thermometers are used in manufacturing, food and beverage, pharmaceuticals, chemicals, HVAC, energy, automotive, aerospace, research, and environmental monitoring. They precisely monitor and control temperatures in various processes and equipment across these industries to ensure safety, product quality, regulatory compliance, and efficient operation.

Specifications

  • CircuitCustom Single Chip Microprocessor LSI Circuit
  • DisplayLCD Size: 60mm x 50mm
  • MeasurementK Type Thermocouple, °C or °F units
  • Memory CardSD memory card, capacity 1GB to 16GB
  • Data Logging5/10/30/60/120/300/600 seconds or automatic. Default sampling time is 60 seconds
  • Data Error Rate≦ 0.1% (total stored data quantity)
  • Advanced SettingsSD Card Formatting, Set Clock Time (year/month/day, hour/minute/second), Set Sampling Time, Set Buzzer Switch, Set Decimal Point Symbol on SD Card, Set Temperature Unit (°C or °F), Set RS232 Data Output Switch, Set Save Mode Type
  • Temperature CompensationAutomatic compensation for K type thermocouple temperature
  • Display UpdateApprox. 1 second (when data changes)
  • Data TransmissionRS232/USB computer interface
  • Operating Temperature0 to 50°C (32 to 122°F)
  • Operating Humidity< 85%RH
  • Power Supply6 x 1.5V (UM-4, AAA) batteries or DC 9V adapter (optional purchase)
  • Battery LifeUsing new batteries (alkaline) with a sampling time set to 60 seconds, the battery life is typically over one month
  • Weight285 grams
  • Dimensions132 x 80 x 32 mm
  • AccessorySD Card (2GB), K Type Thermocouple Probes TP-01, TP-02A, TP-03, TP-04, USB Cable USB-01, RS232 Cable UPCB-02, Data Acquisition Software SW-U811-WIN, AC to DC 9V Adapter

Features

  • Recording IntervalAdjustable to 5/10/30/60/120/300/600 seconds and automatic
  • Data LoggingSaves measurement data along with timestamp (year, month, day, hour, minute, second) to SD memory card
  • ChannelsDisplays three sets of temperature values simultaneously (CH1, CH2, CH3)
  • Data HoldYes
  • InterfaceCan connect to a computer for data output

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C, Humidity < 70%RH, non-condensing
  • Storage TemperatureTemperature -20 ~ 60°C, Humidity < 80%RH, non-condensing
  • Dimensions132 x 80 x 32 mm
  • Weight285 grams
  • Power Supply6 x 1.5V (UM-4, AAA) batteries or DC 9V adapter
  • AccessoryInstruction Manual, K Type Temperature Probe TP-01 x2, Mounting Bracket
