100MHz Mixed-signal Oscilloscopes 2 Channel

Brand GWINSTEK | Model MSO-2102E | 🇨🇳 China

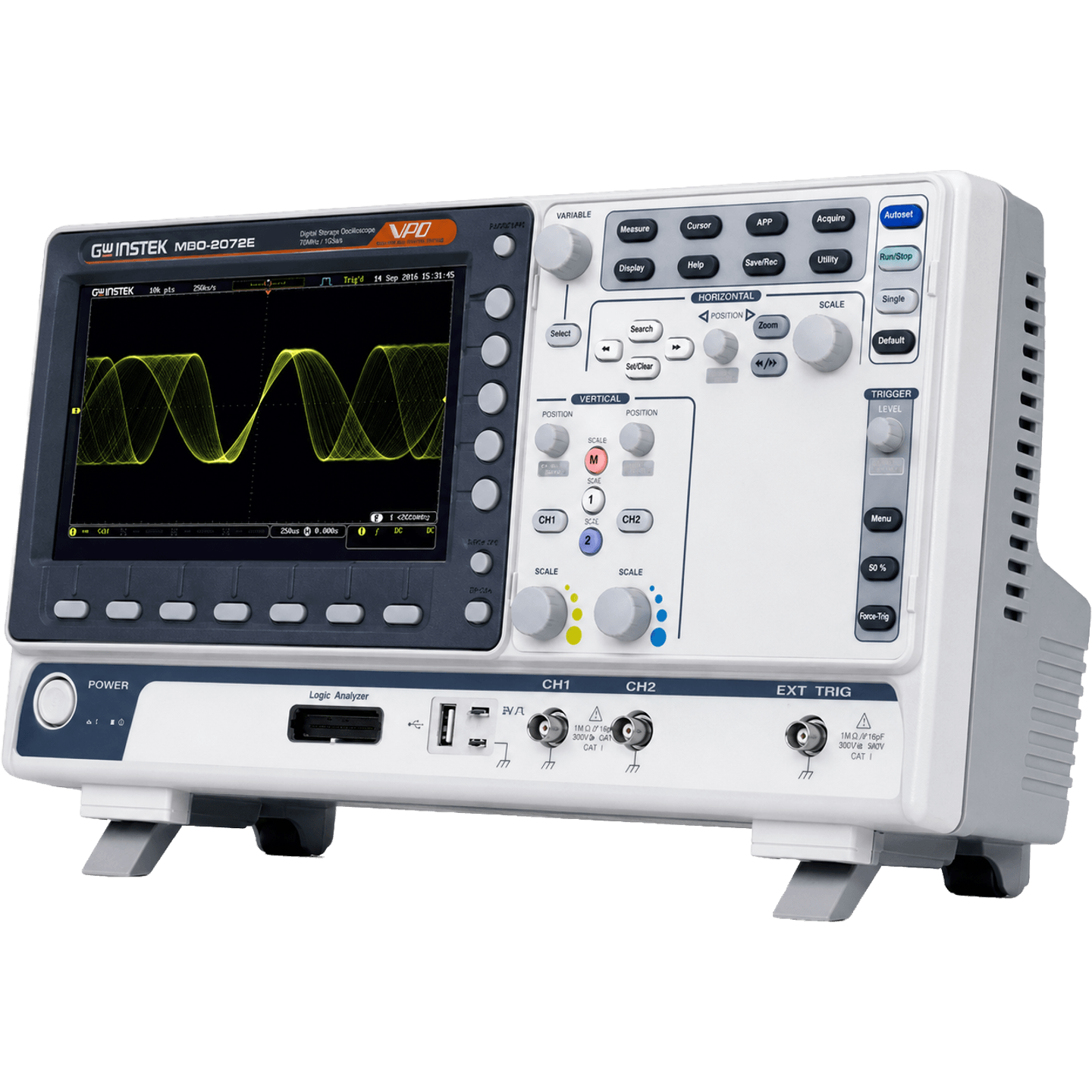

100MHz Mixed-signal Oscilloscopes 2 Channel
MSO-2102E - 1
MSO-2102E - 2
• 100MHz bandwidth • 1GS/s sampling rate • Dual-channel design • Supports analog and digital signal observation • Multiple triggering options • User-friendly interface • Suitable for electronic testing and troubleshooting • Compact design for easy portability
Out of Stock
Views: 11

Description

The MSO-2102E 100MHz Mixed-signal Oscilloscope is designed for electronic engineers and technicians, allowing simultaneous observation of analog and digital signals, suitable for various electronic testing and troubleshooting. With a bandwidth of up to 100MHz and a sampling rate of 1GS/s, it provides accurate waveform displays, enabling users to easily analyze complex signals. The oscilloscope also features multiple triggering options to effectively capture transient signal changes, enhancing testing efficiency.

Specifications

  • Bandwidth100 MHz
  • Channels2 + Ext
  • Record Length10 Mpts
  • Sampling Rate1 GSa/s
  • Resolution8 bit
  • Rise Time3.5 ns
  • Bandwidth Limit20 MHz
  • Vertical Sensitivity1 mV/div ~ 10 V/div
  • Offset Range1 mV/div ~ 20 mV/div: ±0.5 V; 50 mV/div ~ 200 mV/div: ±5 V; 500 mV/div ~ 2 V/div: ±25 V; 5 V/div ~ 10 V/div: ±250 V
  • Timebase Range1 ns/div ~ 100 s/div (1-2-5 遞增)
  • Timebase Accuracy±50 ppm (≥ 1 ms)
  • DC Gain Accuracy±3% (2 mV/div 以上); ±5% (1 mV/div)
  • Input CouplingAC, DC, GND
  • Input Impedance1 MΩ // 約 16 pF
  • Trigger Holdoff Range4 ns ~ 10 s
  • Trigger Sensitivity1 div
  • Peak Detection2 ns (typical)
  • Average2 ~ 256
  • Waveform Update Rate最高 120,000 wfms/s

Features

  • PolarityNormal, Invert
  • Maximum Input Voltage300 Vrms, CAT I
  • Waveform Math+, -, ×, ÷, FFT, FFTrms, 使用者自定義公式
  • FFT Points1 Mpts
  • FFT Function頻譜幅度顯示; FFT 垂直刻度可設為 Linear RMS 或 dBV RMS; FFT 視窗: Rectangular, Hamming, Hanning, Blackman-Harris
  • Trigger SourceCH1, CH2, Line, EXT External Trigger: ±15V, Sensitivity DC~100MHz approx. 100mV / 100~200MHz approx. 150mV, 1MΩ±3% // 16pF
  • Trigger ModeAuto (100 ms/div 以下支援 Roll Mode), Normal, Single Sequence
  • Trigger TypeEdge, Pulse Width (Glitch), Video, Pulse Runt, Rise & Fall (Slope), Alternate, Timeout, Event-Delay (1~65535 events), Time-Delay (Duration, 4 ns~10 s), Bus
  • Trigger CouplingAC, DC, LF Reject, HF Reject, Noise Reject
  • Auto Trigger支援
  • Waveform Storage支援 (24 組)
  • Setup Storage20 組
  • Auto Measurement38 組自動量測: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase, Cursor
  • Auto Counter6 位數, 2 Hz ~ 額定頻寬
  • Autoset單鍵自動設定 (含 undo)
  • Cursor MeasurementAmplitude, Time, Gating
  • Acquisition ModeNormal, Average, Peak Detect, Single
  • XY ModeX: CH1 (CH3*), Y: CH2 (CH4*); 相位偏移 ±3° @ 100 kHz
  • Waveform DisplayYT, XY; Dots, Vectors, 可變餘暉 (16 ms~4 s), 無限餘暉
  • InterpolationSin(x)/x
  • Graticule8 x 10 div
  • Multi-language支援
  • Online Help支援
  • Time Clock時間與日期 (儲存資料用)
  • Logic Analyzer Channels16 數位通道 (D15 - D0)
  • Logic Analyzer Sample Rate每通道 1 GSa/s
  • Logic Analyzer Bandwidth200 MHz
  • Logic Analyzer Record Length每通道 10 Mpts
  • Logic Trigger TypesEdge, Pattern, Pulse Width, Serial Bus (I2C, SPI, UART/RS232/422/485, CAN, LIN), Parallel Bus
  • Logic Threshold Groups四組: D0~D3, D4~D7, D8~D11, D12~D15
  • Logic Threshold OptionsTTL, CMOS(5V, 3.3V, 2.5V), ECL, PECL, 0V, 使用者自訂 (±5V)
  • Logic Max Input Voltage±40 V
  • Logic Min Voltage Swing±250 mV
  • Logic Input Impedance101 kΩ // 8 pF

Attributes

  • Operating Temperature0 ~ 50 °C / ≤80%RH @ 40°C 以下; ≤45%RH @ 41 ~ 50°C
  • Storage Temperature-
  • Altitude Limit-
  • Display8 inch TFT LCD WVGA 彩色顯示 (800 x 480)
  • InterfaceUSB 2.0 Host x1, USB 2.0 Device x1, Ethernet LAN (RJ-45, 10/100Mbps), Go-NoGo BNC
  • Dimensions384 x 208 x 127.3 mm
  • Weight約 2.8 kg
  • Power Supply100 ~ 240 V AC
