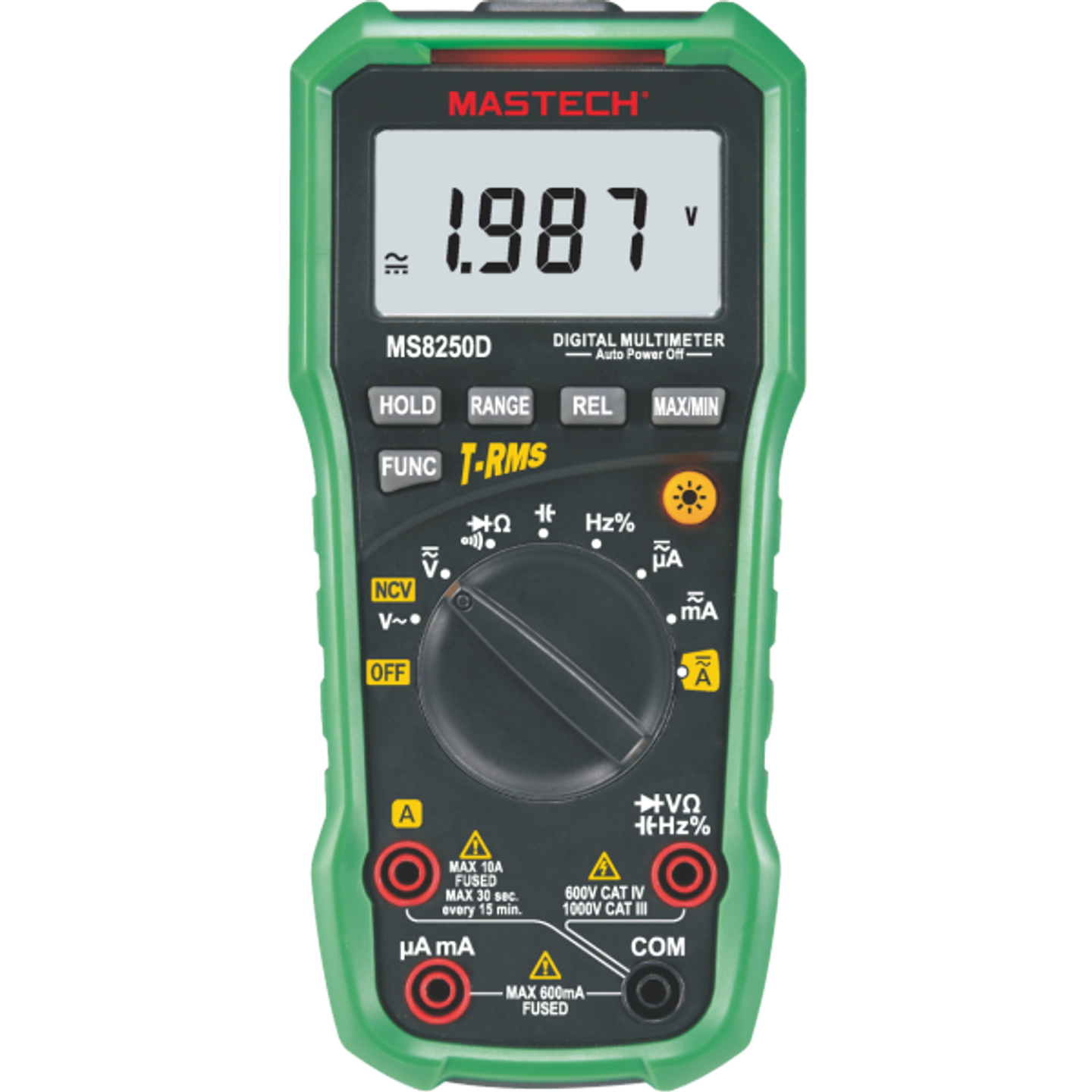

Digital multifunction meter

Brand MASTECH | Model MS8250D | 🇨🇳 China
Digital multifunction meter
The MS8250D is a true RMS digital multimeter that goes beyond simply displaying numbers, helping you capture the key clues on site. With auto/manual ranging, max/min value display, and data hold, it quickly identifies abnormal fluctuations. Non-contact voltage detection improves power diagnostics efficiency, while the USB interface makes logging and analysis more convenient. From routine troubleshooting to professional maintenance, it is a reliable measurement companion.
Downloads
Price NT$ 2,400
In Stock
Views: 8003

Description

The MS8250D is a versatile auto-ranging digital multimeter designed for electrical technicians, capable of accurately measuring parameters such as voltage, current, and resistance. This multifunction meter is suitable not only for use in offices and laboratories, but also delivers stable performance in industrial environments, ensuring measurement accuracy and reliability.

Specifications

  • Display6599
  • DC Voltage660m/6.6/66/660/1,000 V ±(0.5%+5)
  • AC Voltage660m/6.6/66/660/1,000 V ±(1.2%+5)
  • DC Current660μ/6600μ/66m/660m/10 A ±(1.0%+5)
  • AC Current660μ/6600μ/66m/660m/10 A ±(1.5%+5)
  • Resistance660/6.6k/66k/660k/6.6M/66M Ω ±(0.8%+5)
  • Capacitance66n/660n/6.6μ/66μ/660μ/6.6m/66m F ±(4.0%+5)
  • Frequency66/660/6.6k/66k/660k/6.6M/66M Hz ±(1.5%+5)
  • Duty Cycle0.1% to 99.9% ±(2.0%+5)

Features

  • Diode Test3.2V
  • ContinuityLess than 50Ω
  • Analog Bar GraphFastest 0.04 s, 0.1 s
  • Auto RangeYes
  • Max/MinYes
  • Data HoldYes
  • True RMSYes
  • Non-Contact Voltage (NCV)Yes
  • Auto Power Off15 minutes
  • Multi-function MeasurementYes
  • BacklightYes

Attributes

  • Operating Temperature0 ~ 40 °C / Less than 90 %RH, no condensation
  • Storage Temperature-10~50 °C / Less than 70%RH, no condensation
  • Altitude LimitBelow 1,000 meters
  • Data TransmissionUSB interface, supports Windows OS
  • Safety RatingCAT III 1000V / CAT IV 600V
  • Power Supply9V battery (6F22)
  • Dimensions175 x 86 x 52 mm
  • WeightApprox. 250 g
  • AccessoriesTest leads, USB interface cable, software CD, batteries, and user manual
