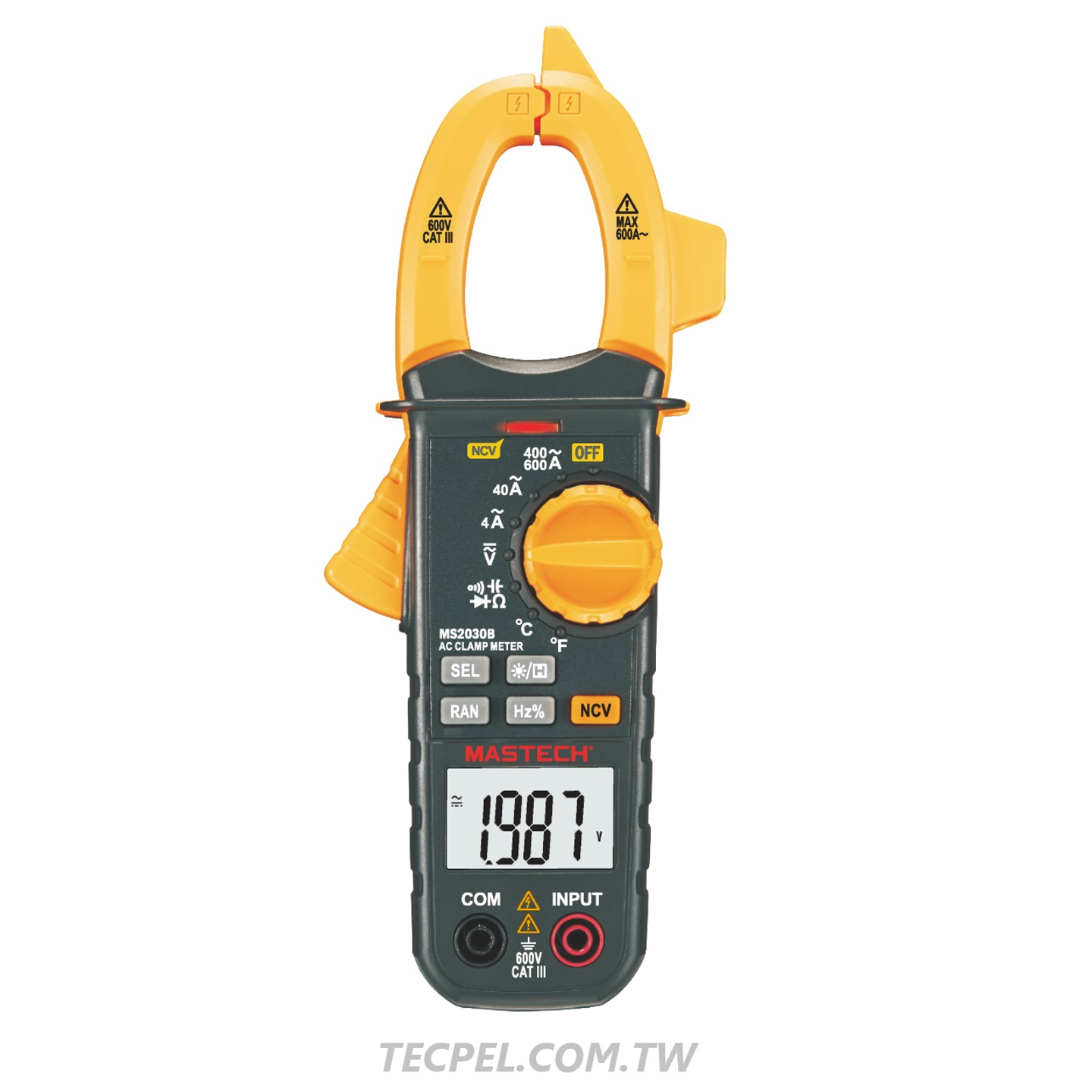

Digital AC Clamp Meter

Brand MASTECH | Model MS2030B | 🇨🇳 China
Digital AC Clamp Meter
The Mastech MS2030B Digital AC Clamp Meter supports multiple measurement modes, ideal for various electrical testing needs: - AC and DC voltage measurement (up to 600V) - AC current measurement (up to 600A) - Resistance measurement (400Ω to 40MΩ) - Capacitance measurement (5nF to 100µF) - Temperature measurement range (-20°C to 1000°C) - Non-contact voltage detection feature - Auto-ranging and automatic shut-off design - Large 4000-count display - Data hold and backlight display functions
Price NT$ 1,570
Out of Stock
Views: 29

Description

The Mastech MS2030B Digital AC Clamp Meter is a versatile measuring tool designed for both professional and amateur electricians. It accurately measures various electrical parameters including AC voltage, AC current, resistance, and capacitance, while ensuring user safety with CAT III 600V certification. The device also features data hold and backlight functions, enhancing its usability in low-light conditions.

Specifications

  • Display Counts鉤形感應器
  • Jaw Opening交流 600V, 直流 600V
  • AC Current交流 600A
  • AC Voltage400Ω 至 40MΩ
  • DC Voltage5nF 至 100µF
  • Resistance50Hz 至 10kHz
  • Capacitance-20°C 至 1000°C (-4°F 至 1832°F)
  • Frequency50 Hz ~ 10k Hz
  • Temperature Range-20 ~ 1000 ℃
  • Sampling Rate約 3次/秒

Features

  • Measuring Range有
  • Data Hold4000 計數
  • Backlight有
  • Diode Test有
  • Continuity有
  • Low Battery Indicator有
  • Auto Power Off約30分鐘
  • Input Impedance10MΩ
  • Overload Protection滿刻度 120%，持續 60 秒

Attributes

  • Operating Temperature28mm
  • Storage TemperatureUser manual, Test leads, Battery
  • Altitude Limit官網查無
  • Power Supply1.5V 四號電池(AAA) x 3
  • Dimensions198 × 79 × 38 mm
  • Weight約 196g (含電池)
  • Accessories電池、測試線、使用說明書
  • Safety RatingCAT III 600V；過載保護 600V DC 或 AC rms
