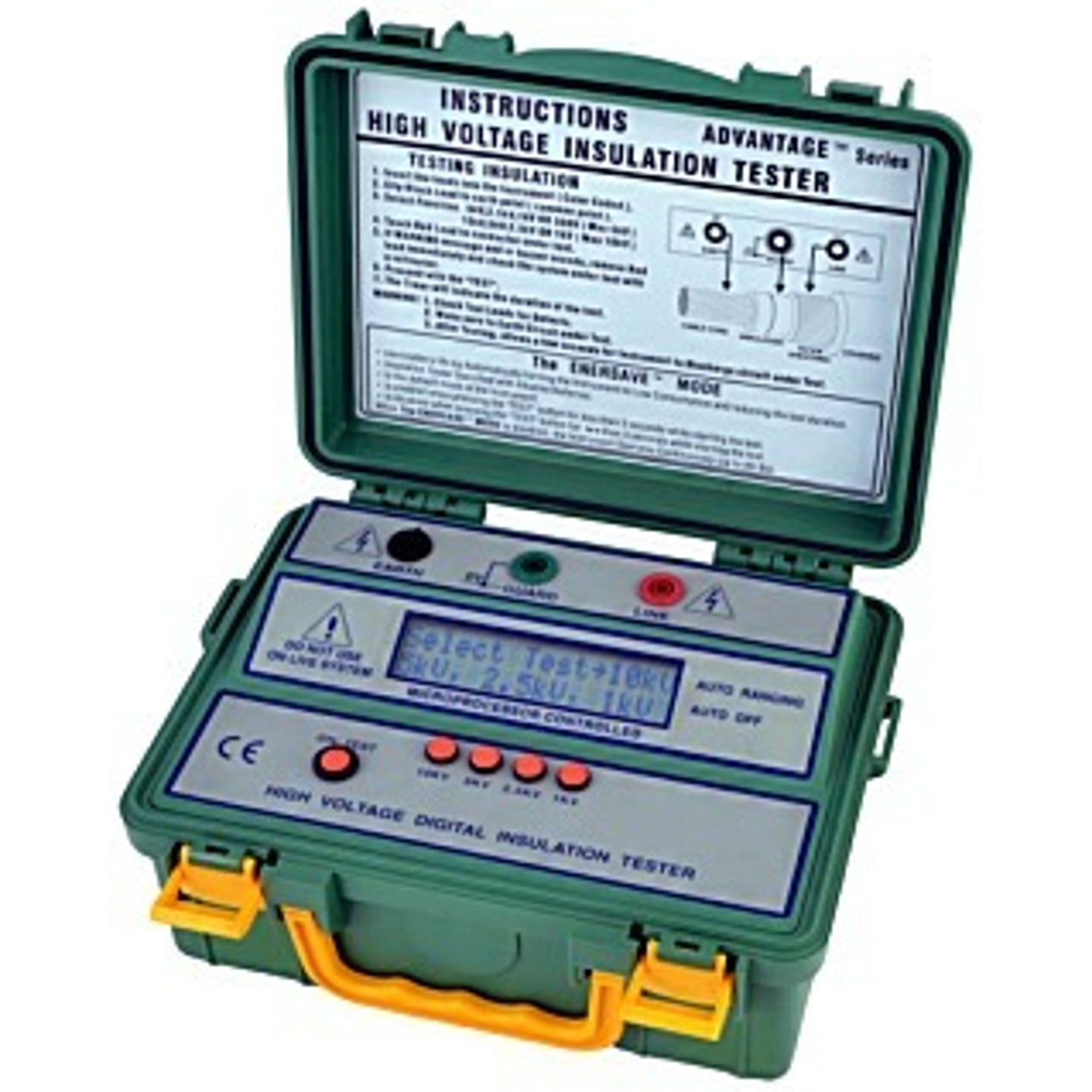

High Voltage Insulation Tester
Brand
TECPEL
|
Model
IN-4104
|
🇹🇼 Taiwan
This tester is microprocessor-controlled and provides four insulation test voltages (1kV, 2.5kV, 5kV, 10kV) with auto-ranging capability. The LCD display clearly shows test results, and it features low power consumption with a battery-saving mechanism.
Out of Stock
Views: 0
Description
IN-4104 is an advanced high voltage insulation tester that supports multiple test voltages, offering rich features for electrical engineers to precisely test and evaluate insulation performance.
Specifications
- Test VoltageDC 1kV / 2.5kV / 5kV / 10kV
- Measuring Range0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
- Accuracy±5% reading
- Output Power1W
- Insulation Resistance2000MΩ / 2000V between circuit and housing
- Withstand Voltage7000 Vac for one minute
Features
- Microprocessor Controlledyes
- Safety Ratingbargraph display
- Visual and Audible Warningyes
- Energy Save FeatureEnerSave™
- Low Battery Indicatoryes
- Overload Protectionyes
- Auto Power Offyes
- EEPROM Calibrationyes
Attributes
- Operating Temperature-15°C to 55°C
- Operating Humidity80% Max. relative humidity
- Power Supply1.5V(AA) × 8 Alkaline batteries
- Safety RatingEN 61010-1, EN 61326-1
- Dimensions205 × 190 × 110 mm
- WeightApprox. 1900g
- AccessoryInstruction manual, Test leads
