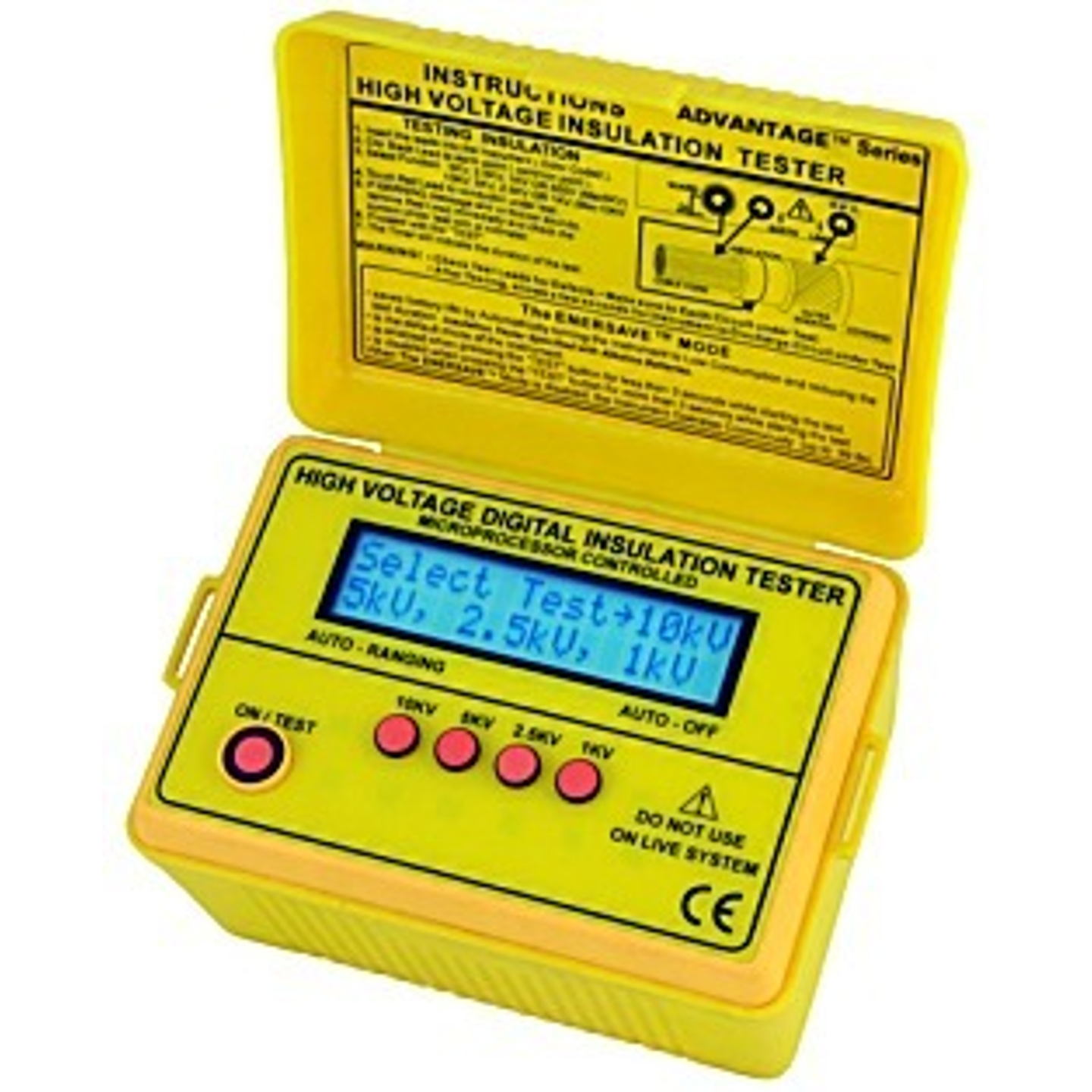

高壓絕緣阻抗計 High Voltage Insulation Tester (1kV, 2.5kV, 5kV, 10kV)

Model IN-2804
高壓絕緣阻抗計 High Voltage Insulation Tester (1kV, 2.5kV, 5kV, 10kV)
The IN-2804 High Voltage Insulation Tester has the following features: - Microprocessor control with four test voltages (1kV, 2.5kV, 5kV, 10kV) - Automatic range measurement to adapt to different testing needs - Large LCD display for easy data reading - Low battery indication and overload protection - Comes with a portable test lead kit for convenience
Out of Stock
Views: 49

Description

The IN-2804 High Voltage Insulation Tester is an efficient testing instrument designed for industrial electrical inspections. It features microprocessor control and offers four insulation test voltages: 1kV, 2.5kV, 5kV, and 10kV. With its automatic range measurement function, it quickly adapts to various testing needs and is equipped with a large LCD display for easy data reading. To ensure safety, the instrument also includes low battery indication, overload protection, and automatic shutdown features for stable and reliable testing.

Specifications

  • 測試電壓 (DC V)1kV / 2.5kV / 5kV / 10kV
  • Measuring Range0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
  • Accuracy0-50GΩ : ±3% rdg、50-500GΩ : ±5% rdg
  • Dimensions170(L) × 120(W) × 95(D)mm
  • Weight約 1030g
  • Power Supply1.5V(AA) × 8 鹼性電池
  • Safety RatingEN 61010-1、EN 61326-1

Features

  • Microprocessor Control是
  • Insulation Resistance是
  • Auto Measurement是
  • 電壓警示是
  • EnerSave™ 節電功能是
  • Display是
  • Low Battery Indicator是
  • Overload Protection是
  • 自動關閉是
  • 顯示測試時間 (最多 99.9 秒)是
  • EEPROM 校準是
  • 內建便攜盒和測試線包是

Attributes

  • Dimensions170(L) × 120(W) × 95(D)mm
  • WeightApprox. 1030g
  • Power Supply1.5V(AA) × 8 Alkaline batteries
  • Safety RatingEN 61010-1, EN 61326-1
