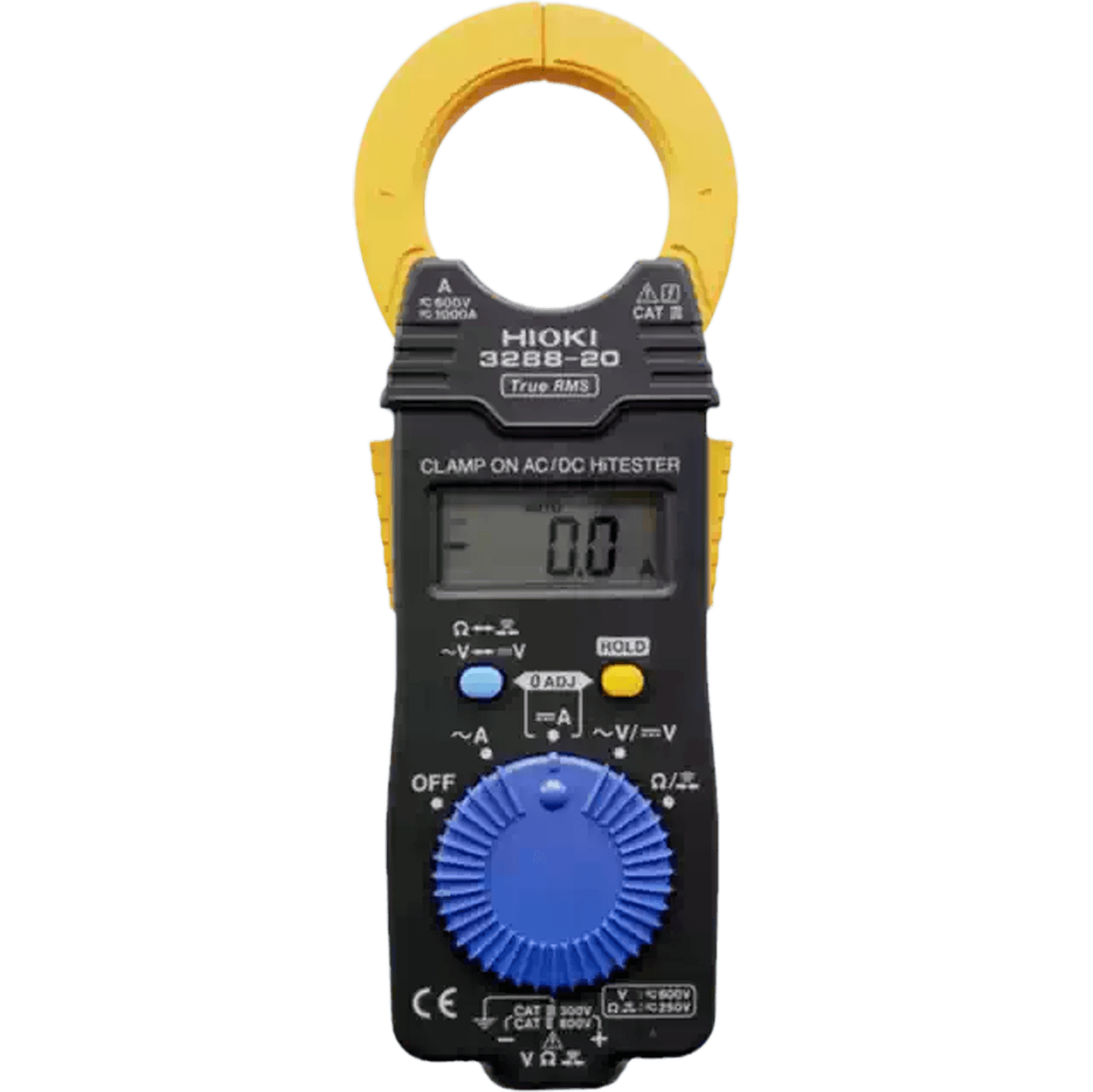

AC/DC Clamp Meter
Brand
HIOKI
|
Model
HIOKI 3288
|
🇯🇵 Japan
The HIOKI_3288 provides precise AC/DC current measurements with a wide measurement range and high accuracy, featuring convenient functions like auto power-saving and data hold.
Price
NT$ 82,100
Out of Stock
Views: 1
Description
HIOKI_3288 is a versatile clamp meter for measuring AC and DC currents with high accuracy and stability. Ideal for electrical equipment maintenance and installation, applicable in industrial sectors.
Simple, convenient, easy-to-operate AC/DC gradient table
HIOKI-3288-average effective value;
HIOKI -3288-20- TRUE-RMS.true
effective value Measurement of large currents such as UPS storage batteries or horse carriages available It's quiet,
it's a small surface, but it's equipped with electric power, electric blocking, and conductive power.
CAT III 600 V (current) CAT III 300 V (electric current) CAT II 600 V (electric current)
Specifications
- DC Current100.0/1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
- AC Current100.0/1000 A (10 Hz ~ 500 Hz), Basic accuracy: ±1.5 % rdg. ±5 dgt.
- True RMSOnly For HIOKI-3288-20
- Wave peak factor Only For 3288-203 or less (1000 A quantity time 2, electric time 1.5
- DC Voltage419.9 mV ~ 600 V, 5 range, Basic accuracy: ±1.3 % rdg. ±4 dgt.
- AC Voltage4.199 V ~ 600 V, 4 range, Basic accuracy: ±2.3 % rdg. ±8 dgt.
- Resistance419.9 Ω ~ 41.99 MΩ, 6 range, Basic accuracy: ±2 % rdg. ±4 dgt.
Features
- Continuity50 Ω ±40 Ω or below with buzzer
- Data Holdyes
- Auto Power Saveyes
- Auto Zero ADJ (DC A)yes
Attributes
- DisplayLCD, Max 4199 dgt., Display update rate: 2.5 times/sec
- Power SupplyButton-type lithium battery (CR2032) ×1, continuous use 60 hours ( HIOKI 3288-20 : Only 35 Hours)
- Jaw Openingφ 35 mm
- Dimensions57W × 180 H × 16D mm, 150 g
- AccessoryOperating manual ×1, Carrying case 9398 ×1, Test leads L9208 ×1
