GPT-12000 Electrical Safety Analyzer
Brand
GWINSTEK
|
Model
GPT-12000
|
🇹🇼 Taiwan
The GPT-12000 Series is GWINSTEK’s 200 VA flagship safety analyzer series, with ACW, DCW, IR, GB and GC configurations by model and IEC 61010-2-034 compliance.
Downloads
Out of Stock
Views: 4
Description

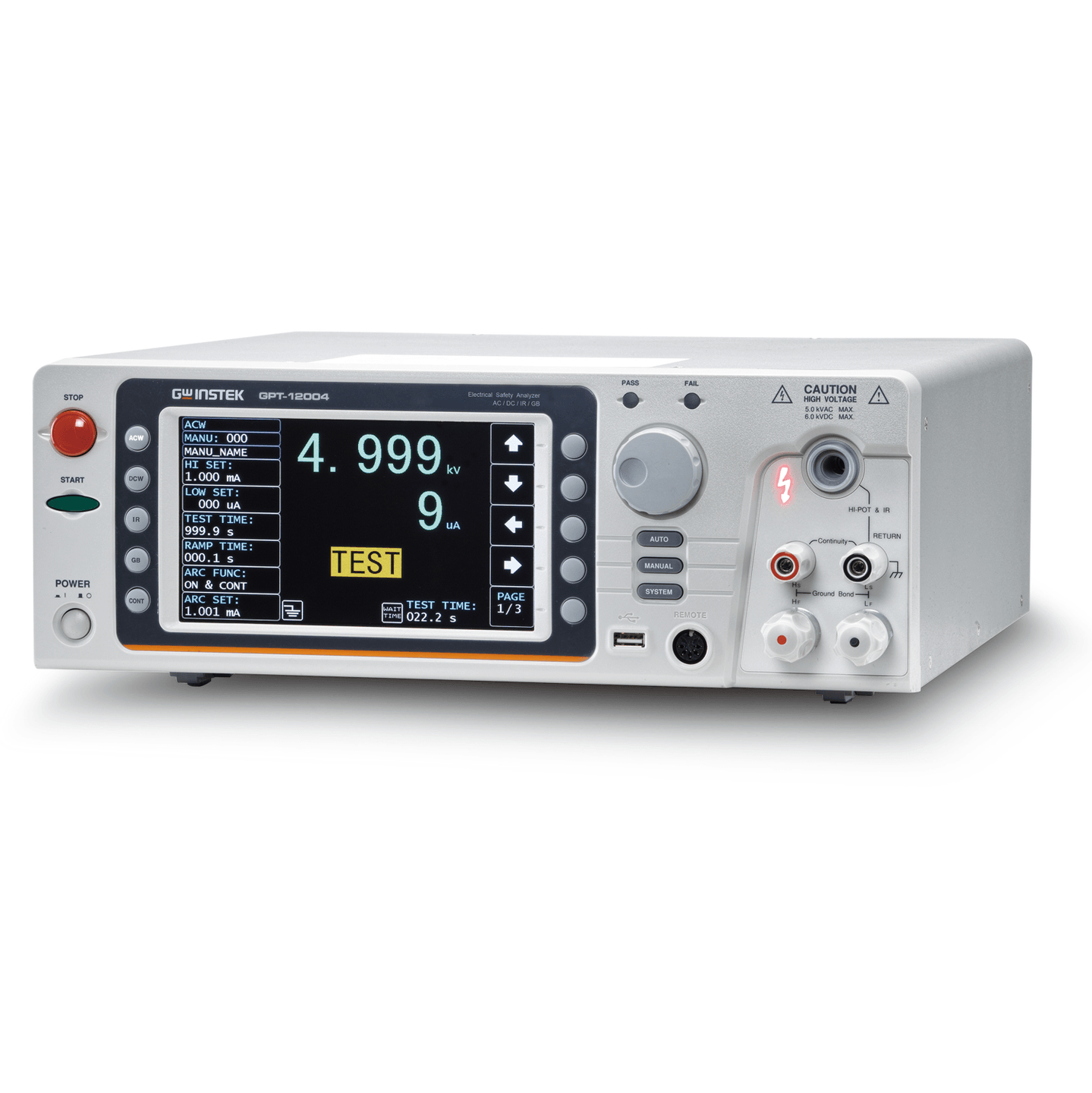

The GPT-12000 Series is GWINSTEK’s 200 VA flagship electrical safety analyzer platform for R&D, QA and production safety testing. Depending on the model, it supports AC withstanding, DC withstanding, insulation resistance, ground bond and ground continuity tests. The series complies with IEC 61010-2-034 and provides a 7-inch TFT LCD with V-I curve scan, RMS current measurement, zero-crossing turn-on, ramp-up/ramp-down control, USB storage and standard RS-232C, USB and Signal I/O interfaces.
Specifications
- Series ModelsGPT-12001 / GPT-12002 / GPT-12003 / GPT-12004
- Function ConfigurationGPT-12001: ACW/GC; GPT-12002: ACW/DCW/GC; GPT-12003: ACW/DCW/IR/GC; GPT-12004: ACW/DCW/IR/GB/GC
- ACW Output Voltage0.050~5.000 kV
- ACW Max. Rated Load200 VA (5 kV / 40 mA)
- ACW Max. Rated Current40 mA (>0.5 kV~5 kV); 10 mA (0.05 kV~0.5 kV)
- ACW Frequency50 Hz / 60 Hz selectable
- ACW Voltage Accuracy±(1% of setting + 5 V)
- ACW Current Measurement1 μA~40.00 mA ±(1.5% of reading + 30 μA)
- DCW Output Voltage0.050~6.000 kV
- DCW Max. Rated Load50 W (5 kV / 10 mA)
- DCW Max. Rated Current10 mA (>0.5 kV~6 kV); 2 mA (0.05 kV~0.5 kV)
- DCW Voltage Accuracy±(1% of setting + 5 V)
- DCW Current Measurement1 μA~10.00 mA ±(1.5% of reading + 3 μA / 30 μA)
- IR Output Voltage50~5000 Vdc
- IR Measurement Range0.001 MΩ~50.00 GΩ
- IR Short-Circuit Current10 mA max.
- GB Output Current3.00~32.00 A ac
- GB Resistance Range1 mΩ~650 mΩ ±(1% of reading + 2 mΩ)
- GC Output CurrentFixed 100 mA dc
- GC Resistance Range0.10~70.00 Ω ±(10% of reading + 2 Ω)
- MemoryMANU 100 blocks; AUTO 100 blocks, 10 steps per AUTO block
Features
- Safety RatingComplies with IEC 61010-2-034 for high-voltage output instruments
- Test Capacity200 VA AC withstanding test capacity
- Curve Scan7-inch TFT LCD V-I curve scan helps confirm insulation breakdown and reduce misjudgment
- Operation ModesManual mode and automatic mode
- Current MeasurementRMS current measurement
- Zero CrossingZero Crossing Turn-on Operation reduces output surge impact
- Ramp ControlControllable ramp-up and ramp-down time
- Capacitive DUTsTests capacitance up to 47 μF
- Data FunctionsStatistical analysis and USB storage
- Rear OutputRear-panel output function
- Standard InterfacesRS-232C, USB host/device and Signal I/O
- Optional InterfacesOptional GPIB or LAN (choose one)
Attributes
- Display7-inch color LCD
- Power SupplyAC 100~240 V ±10%, 50/60 Hz
- Power Consumption400 VA max.
- Dimensions380(W) x 148(H) x 436(D) mm; GPT-12004: 380(W) x 148(H) x 454(D) mm
- WeightApprox. 11 kg; GPT-12004 approx. 15 kg
- Standard AccessoriesQuick operation manual, user manual CD, power cord, Interlock key, GHT-119 program terminal cable; GHT-115 test lead for GPT-12003/12002/12001; GHT-115 and GTL-215 test leads for GPT-12004
- Optional InterfacesGPT-10KG1 GPIB card, GPT-10KL1 LAN card (choose one)
- AccessoriesGHT-113, GHT-117, GHT-118, GHT-205, GTL-232, GTL-246, GTL-248, GRA-440
- Ordering ModelsGPT-12004 AC/DC/IR/GB AC 200VA; GPT-12003 AC/DC/IR AC 200VA; GPT-12002 AC/DC AC 200VA; GPT-12001 AC AC 200VA
