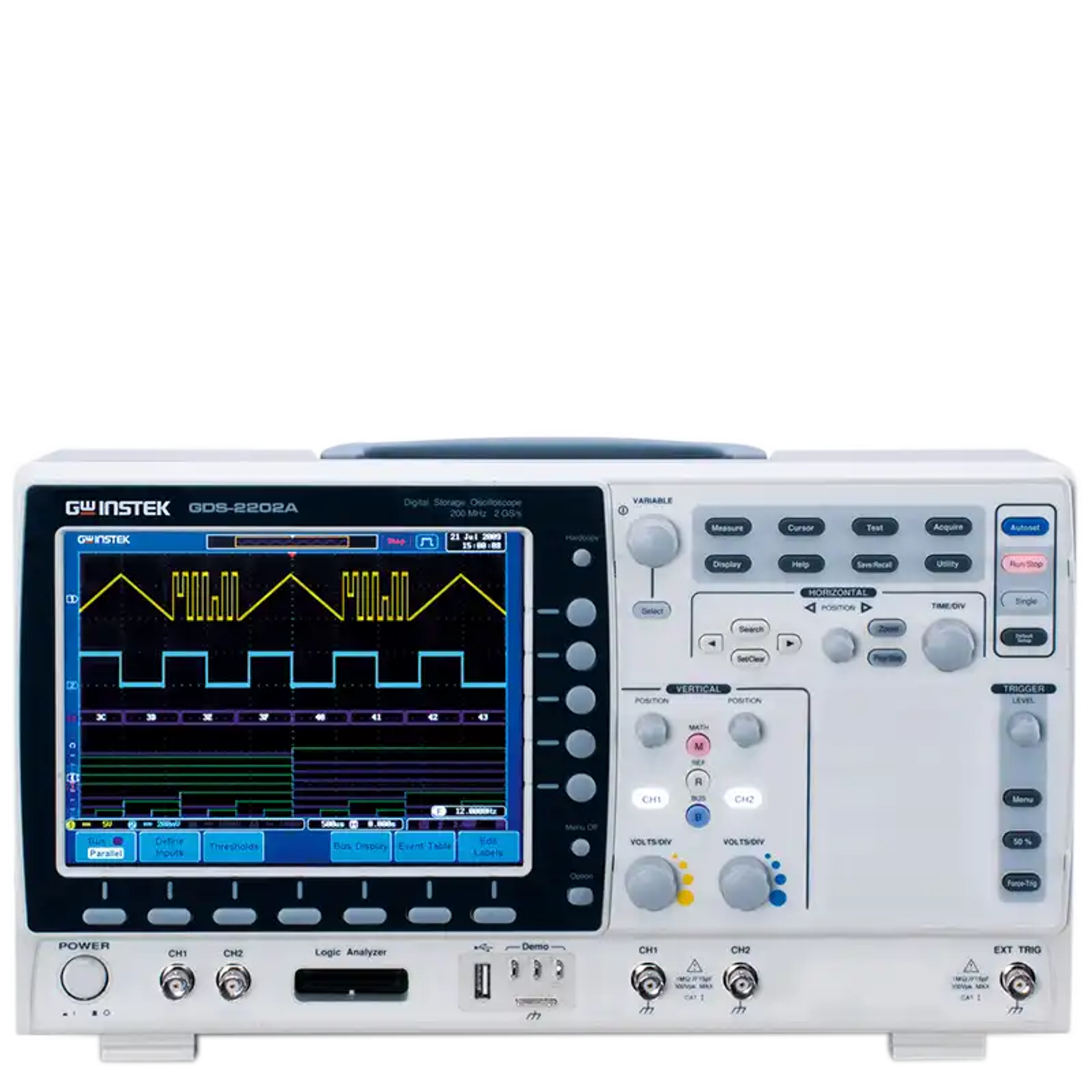

300MHz 2-channel Desktop Digital Oscilloscope
Brand
GWINSTEK
|
Model
GDS-2302A
|
🇹🇼 Taiwan
■ 300 MHz bandwidth, 2 channels
■ 2GSa/s real-time sampling rate and 100GSa/s equivalent sampling rate
■ 2M memory depth
■ Up to 80,000 waveforms per second update rate
■ Standard UART, I2C, and SPI triggering and decoding functions
■ Optional 8 or 16 digital channels to upgrade to mixed signal oscilloscope
■ Optional 5MHz and 25MHz signal generators
■ Flexible interface options (standard: USB; optional: LAN/GPIB)
Out of Stock
Views: 52
Description
The GDS-2302A 300MHz 2-channel desktop digital oscilloscope features a 2M long memory and a real-time sampling rate of up to 2GSa/s, enabling precise capture of complex and weak signal waveforms. With a vertical range of 1mV/div and a time range from 1ns/div to 100s/div, it is suitable for various applications. The built-in waveform search and segmented memory functions allow users to easily perform signal analysis while providing multiple triggering and decoding options to enhance testing efficiency.
Specifications
- Bandwidth300MHz
- Channels2
- Sampling Rate8 Bit
- Memory Depth80,000 波形/每秒
- Resolution小於 1.17ns
- Waveform Update Rate最大 10Mpts
- Rise Time300Vrms, CAT I
- Timebase Accuracy± 3% full scale
- Input Impedance約 1MΩ// 16pF.
- Overload Protection24 組
- Trigger Accuracy±3% full scale
- Vertical Sensitivity-
Features
- Wave TriggerTraditional Chinese / Simplified Chinese / English
- Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot
- Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
- Multi-language InterfaceCH1, CH2, CH3*, CH4*, Line, EXT
- Signal OutputRS232, USB 2.0, 網路(RJ-45), Go-NoGo BNC, Kensington Style Lock [選配 SVGA 影像埠]
Attributes
- Operating Temperature0~50°C / Below 80%RH @35°C, no condensation
- Storage Temperature-20~60°C / Below 70%RH @35°C, no condensation
- Altitude LimitLower than 1,000 meters
- DisplayApprox. 18W, 40VA maximum
- Power Supply1A slow, 250V
- Fuse7“ TFT WVGA color display
- Interface384 X 208 X127.3 mm
- DimensionsApprox.2800g
- WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
- Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
