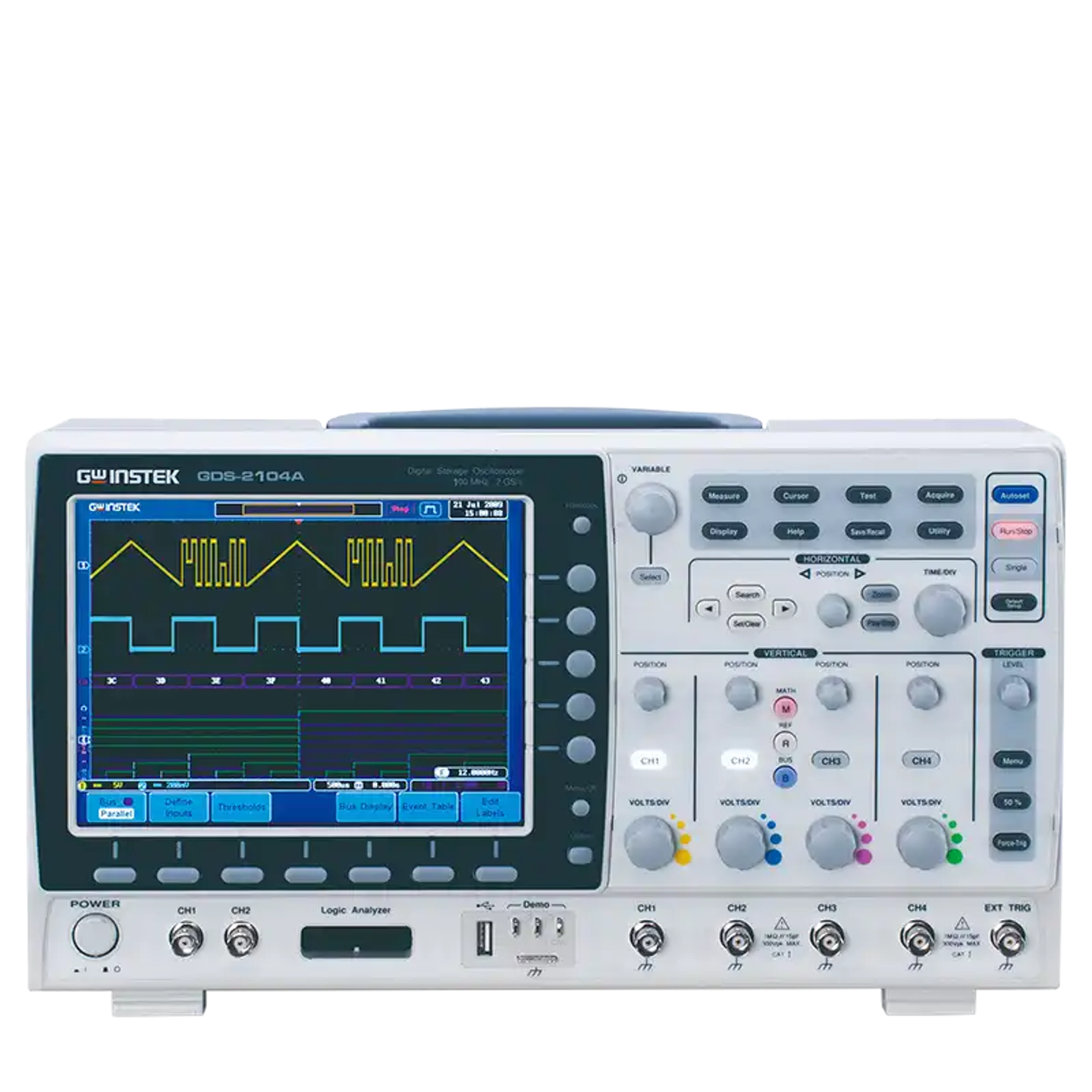

100MHz 4-channel Desktop Digital Oscilloscope

Brand GWINSTEK | Model GDS-2104A
100MHz 4-channel Desktop Digital Oscilloscope
■ 100 MHz bandwidth with 4-channel design ■ 2GSa/s real-time sampling rate and 100GSa/s equivalent sampling rate ■ 2M memory depth, supporting standard waveform search ■ Up to 80,000 waveforms per second update rate ■ Standard UART, I2C, and SPI triggering and decoding capabilities ■ Optional upgrade to mixed-signal oscilloscope with 8 or 16 digital channels ■ Flexible interface options (USB, LAN/GPIB) ■ Free upgrade available for various advanced features
Out of Stock
Views: 64

Description

The GDS-2104A Digital Oscilloscope is a powerful desktop device that offers 100MHz bandwidth and a 4-channel design, ideal for precise measurements of various complex signals. With a memory depth of 2M, it can store a significant amount of data and features standard waveform search and segmented memory functionality. The vertical sensitivity reaches 1mV/div, and the time range spans from 1ns/div to 100s/div, making it capable of capturing weak signals and rapidly changing waveforms to meet the needs of professional engineers.

Specifications

  • Bandwidth100MHz
  • Channels4
  • Sampling Rate8 Bit
  • Memory Depth80,000 波形/每秒
  • Resolution小於 3.5ns
  • Waveform Update Rate最大 10Mpts
  • Rise Time300Vrms, CAT I
  • Timebase Accuracy± 3% full scale
  • Input Impedance約 1MΩ// 16pF.
  • Overload Protection24 組
  • Trigger Accuracy±3% full scale
  • Vertical Sensitivity-

Features

  • Wave TriggerTraditional Chinese / Simplified Chinese / English
  • Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot
  • Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
  • Multi-language InterfaceCH1, CH2, CH3*, CH4*, Line, EXT
  • Signal OutputRS232, USB 2.0 , 網路(RJ-45), Go-NoGo BNC, Kensington Style Lock [選配 SVGA 影像埠]

Attributes

  • Operating Temperature0~50°C / Below 80%RH @35°C, no condensationnt
  • Storage Temperature-20~60°C / Below 70%RH @35°C, no condensation
  • Altitude LimitLower than 1,000 meters
  • DisplayApprox. 18W, 40VA maximum
  • Power Supply1A slow, 250V
  • Fuse7“ TFT WVGA color display
  • Interface384 X 208 X127.3 mm
  • DimensionsApprox. 2800g
  • WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
  • Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
