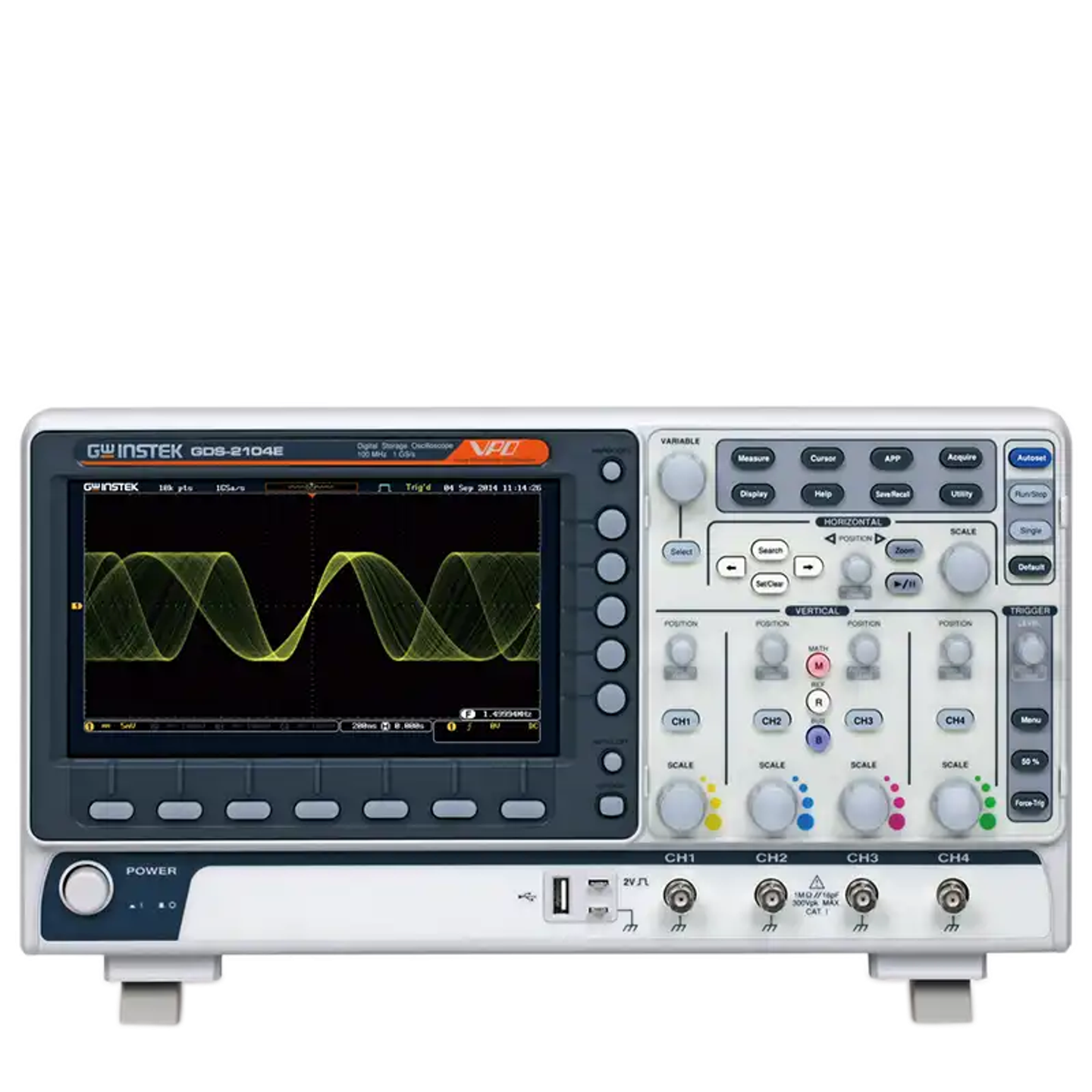

70MHz 4-channel Desktop Digital Oscilloscope
Brand
GWINSTEK
|
Model
GDS-2074E
|
🇹🇼 Taiwan
70MHz bandwidth, 4 channels
1GSa/s real-time sampling rate per channel
Standard 10M maximum memory depth and VPO waveform display technology
Waveform update rate up to 120,000 times/second
8” WVGA TFT LCD display
FFT up to 1M points for higher frequency domain resolution
High-pass and low-pass digital filter functions
29,000 segment memory and waveform search capabilities
I2C/SPI/UART/CAN/LIN serial bus triggering and decoding functions
Data logging capability for tracking signal changes for up to 100 hours
Out of Stock
Views: 64
Description
The GDS-2074E 70MHz 4-channel desktop digital oscilloscope features a real-time sampling rate of 1GSa/s per channel and an 8-inch 800*480 TFT LCD screen that provides clear waveform displays. Whether capturing complex weak signals or rapidly changing waveforms, the GDS-2074E excels in precision. With a waveform update rate of up to 120,000 times per second and a maximum memory depth of 10M, it is the ideal choice for electronics engineers and researchers.
Specifications
- Bandwidth70MHz
- Channels4
- Sampling Rate8 Bit
- Memory Depth120,000 波形/每秒
- Resolution小於 5ns
- Waveform Update Rate最大 10Mpts
- Rise Time300Vrms, CAT I
- Timebase Accuracy± 3% full scale
- Input Impedance約 1MΩ// 16pF
- Overload Protection24 組
- Trigger Accuracy±3% full scale
- Vertical Sensitivity-
Features
- Wave Trigger正體中文／簡體中文／英文等
- Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot
- Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
- Multi-language InterfaceCH1, CH2, CH3*, CH4*, Line, EXT
- Search and Navigation6位數解析度，誤差±2％
- Signal OutputUSB 2.0, Ethernet(RJ-45), Go-NoGo BNC, Kensington Style Lock
Attributes
- Operating Temperature0~50°C / Below 80%RH @35°C, no condensation
- Storage Temperature-20~60°C / Below 70%RH @35°C, no condensation
- Altitude LimitLower than 1,000 meters
- DisplayApprox. 18W, 40VA maximum
- Power Supply1A slow, 250V
- Fuse7“ TFT WVGA color display
- Interface384 X 208 X127.3 mm
- DimensionsApprox. 2800g
- WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
- Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
