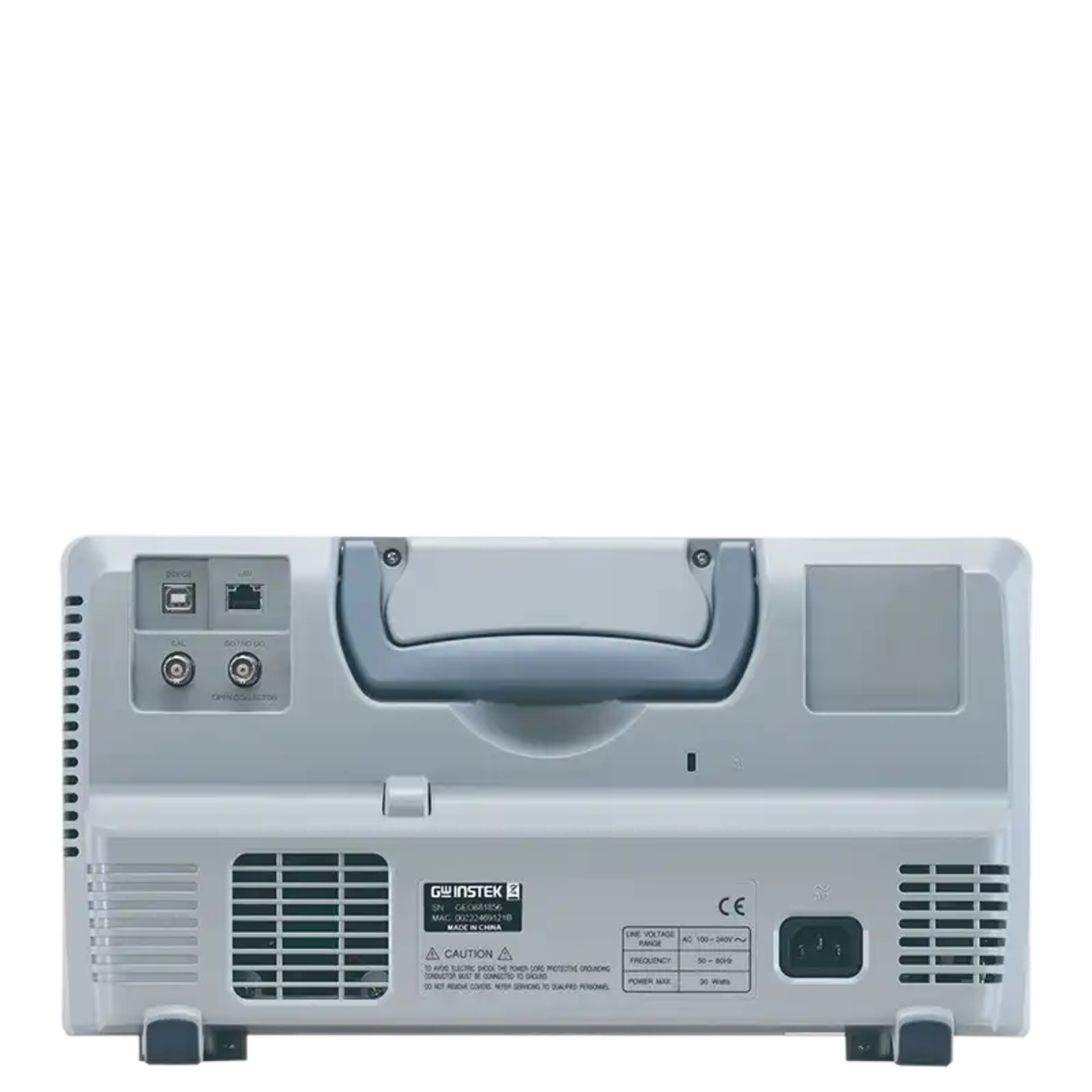

70MHz 2-channel Desktop Digital Oscilloscope
Brand
GWINSTEK
|
Model
GDS-1072B
|
🇹🇼 Taiwan
■ 1GSa/s Sampling Rate
■ Up to 10M Memory Depth per Channel
■ 7-inch 800 x 480 WVGA LCD Screen
■ 256-level Color Display Feature
■ 1Mpts FFT Frequency Domain Signal Display
■ One-button Reset Setting
■ Stylish Design, Lightweight
Out of Stock
Views: 49
Description
The GDS-1072B 70MHz 2-channel Desktop Digital Oscilloscope is designed for electronic engineers, offering a sampling rate of up to 1GSa/s and a memory depth of 10M to accurately capture and analyze waveform details. Its 7-inch 800 x 480 WVGA LCD screen provides clear waveform display and supports 256 levels of color display to enhance visualization. This oscilloscope features a one-button reset setting for easy operation, making it suitable for various testing needs, excelling in both laboratory and industrial applications.
Specifications
- Bandwidth70MHz
- Channels2
- Sampling Rate8 Bit
- Memory Depth50,000 波形/每秒
- Resolution小於 5ns
- Waveform Update Rate最大 10Mpts
- Rise Time300V (DC+AC peak), CAT II
- Timebase Accuracy± 3% full scale
- Input Impedance1MΩ ±2%, ~15pF
- Overload Protection24 組
- Trigger Accuracy±3% full scale
- Vertical Sensitivity-
Features
- Wave Trigger正體中文／簡體中文／英文等
- Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/Overshoot, Fall Preshoot/Overshoot
- Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
- Multi-language InterfaceCH1, CH2, CH3*, CH4*, Line, EXT
- Search and Navigation6位數解析度，誤差±2％
- Signal OutputUSB 2.0 High-speed host, USB High-speed 2.0, RJ-45, Go-NoGo BNC
Attributes
- Operating Temperature0~50°C / Below 80%RH @35°C, no condensation
- Storage Temperature-20~60°C / Below 70%RH @35°C, no condensation
- Altitude LimitLower than 1,000 meters
- DisplayApprox. 18W, 40VA maximum
- Power Supply1A slow, 250V
- Fuse7“ TFT WVGA color display
- Interface380 X 208 X 127.3 mm
- DimensionsApprox. 2800g
- WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
- Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
