數位桌上型 6 1/2 位顯示儀

Brand GWINSTEK | Model GDM-9061 | 🇹🇼 Taiwan
數位桌上型 6 1/2 位顯示儀

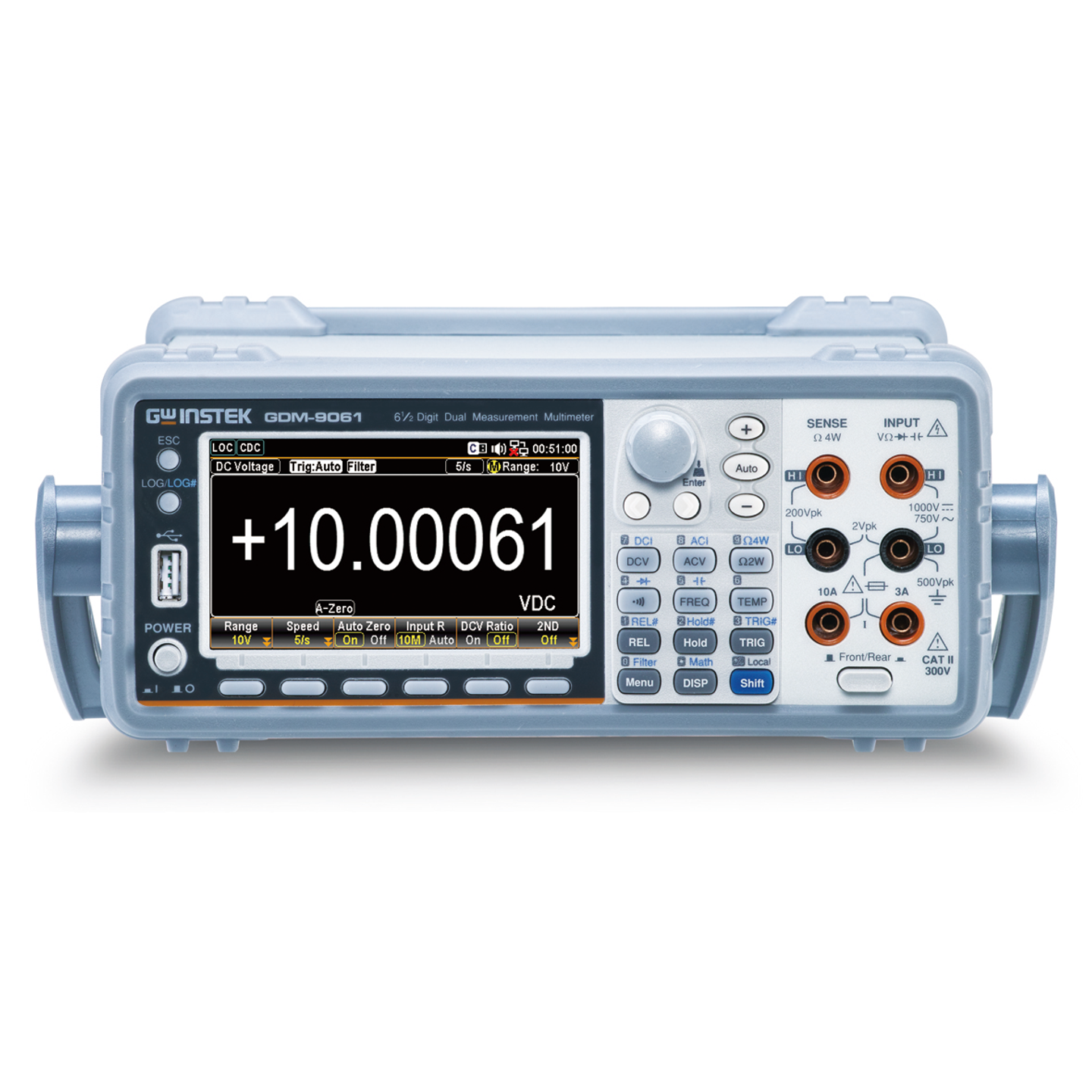

GDM-9061 - 1
GDM-9061 - 2
GDM-9061 - 3
• Offers up to 1,200,000 counts for accurate measurements • Supports 12 measurement functions including DCV, ACV, DCI, ACI, etc. • Sampling rate of up to 10k SPS for real-time data updates • Dual measurement feature displays two parameters simultaneously • Graphic functions include histograms, bar charts, and trend graphs • Temperature measurement supports RTD, thermistor, and thermocouple • Standard interfaces include USB, RS-232C, and LAN, with optional GPIB interface • Backlit display for use in various environments
Out of Stock
Views: 52

Description

The GWINSTEK GDM-9061 is a high-precision digital benchtop 6 1/2 digit display designed for industrial measurement applications with a resolution of 1,200,000 counts. This display can measure DC voltage, AC voltage, resistance, and current while supporting up to 12 measurement functions, making it suitable for professional engineers and technicians. Its 4.3-inch TFT LCD screen provides clear visibility, and the powerful data logging and analysis functions allow users to carry out detailed data analysis.

Specifications

  • Display Counts6 1/2 位數
  • DC Voltage範圍: 100mV - 1000V, 分辨率: 0.1μV - 1mV, 精度: ±(0.0020% + 0.0006% - 0.0050% + 0.0010%)
  • Resistance範圍: 100Ω - 100MΩ, 分辨率: 100μΩ - 100Ω, 精度: ±(0.002% + 0.0005% - 0.300% + 0.010%)
  • DC Current範圍: 100μA - 10A, 分辨率: 100pA - 10μA, 精度: ±(0.007% + 0.004% - 0.180% + 0.020%)
  • AC Voltage範圍: 100mV - 750V, 精度: ±(0.04% - 4.00% + 0.50%)
  • AC Current範圍: 100μA - 10A, 精度: ±(0.04% - 1.00% + 0.04%)
  • Frequency範圍: 3Hz - 1MHz, 精度: ±(0.006%)
  • Capacitance範圍: 1nF - 100μF, 精度: ±(2.00%)
  • Display4.3 吋 color TFT WQVGA (480x272) with LED backlight

Features

  • Data Loggingyes
  • Relative Modeyes
  • Data Transmissionyes
  • Auto Rangeyes
  • Transistor Testno
  • Backlightyes
  • Max/Minyes

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C, Humidity < 70%RH (non-condensing)
  • Storage TemperatureTemperature -20 ~ 60°C, Humidity < 80%RH (non-condensing)
  • Altitude LimitUp to 2,000 meters
  • Safety RatingRS-232C, USB host/device, LAN, Digital I/O; GPIB(optional)
  • Power SupplyAC 100 V / 120 V / 220 V / 240 V ±10%
  • Dimensions267(W) x 107(H) x 302(D) mm (from bumper)
  • WeightApprox. 3.53kg (without options)
