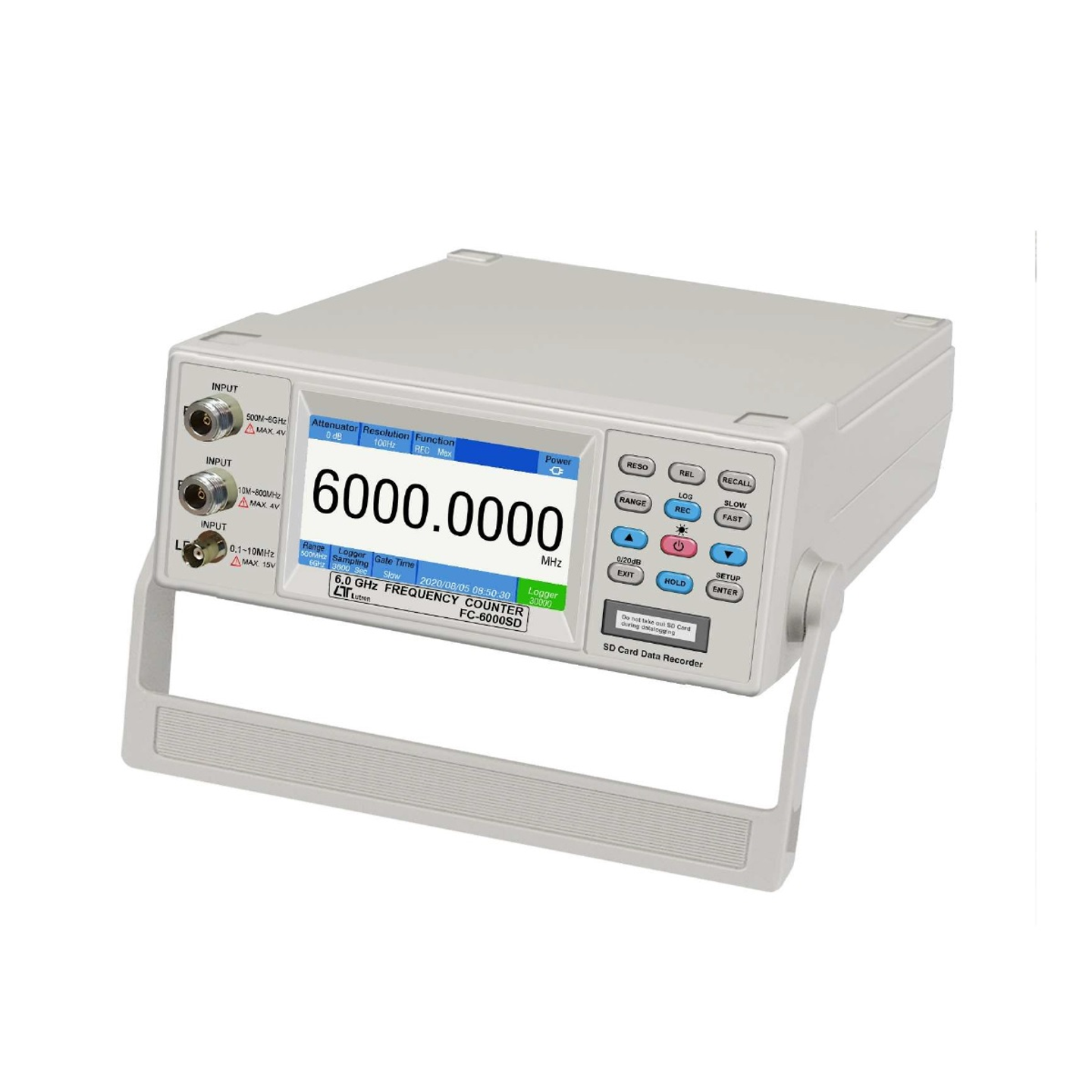

frequency meter 6.0 GHz, time base frequency TCXO, micro SD card number recorder, square type
Brand
LUTRON
|
Model
FC-6000SD
|
🇹🇼 Taiwan
Explore the advanced features and specifications of the FC-6000SD Frequency Counter. Offering high sensitivity up to 6.0 GHz, TCXO for stability, a TFT LCD display, and versatile power options, perfect for professionals in telecommunications and electronics.
Out of Stock
Views: 0
Description
TCXO (Temperature Compensated Crystal Oscillator): Provides high stability and accuracy with a time base data error typically less than 0.1% of total saved data.High Sensitivity: Useful for VHF and UHF frequency measurements, beneficial for CB amateur radio enthusiasts.Wide Measurement Range: Capable of measuring up to 6.0 GHz.Advanced Functionality: Includes frequency, period, multi-resolution, data hold, relative measurement, and records maximum, minimum, and average readings.Display: 4.3" TFT LCD, offering clear readouts even in bright ambient light conditions, with a low power consumption.Power Options: Operated via battery or an AC to DC 9V adapter.Interfaces: Includes RS 232 and USB PC interfaces for data output.
Specifications
- Display4.3 " TFT LCD 480 x 272 Dots.
- Measurement)Frequency, Data hold, Relative, Memory ( max., min., average ), Period.
- Measuring Range10 MHz & Period ： 10 Hz to 10 MHz(INPUT C) Clock width&Duty：10 Hz to 100 KHz(INPUT C)
- ResolutionRange Gate Time Select / Resolution 6000 MHz ( 6.0 GHz ) 0.5 SEC 1000 Hz 6.5 SEC 100 Hz 4 SEC 200 Hz 2 SEC 500 Hz 1000 MHz (1 GHz ) 1 SEC 100 Hz 8 SEC 10 Hz 4 SEC 20 Hz 2 SEC 50 Hz 10 MHz 0.5 SEC 10 Hz 1.5 SEC 1 Hz 6 SEC 0.2 Hz 11 SEC 0.1 Hz
- Sensitivity (0 dB Function)6 GHz：≧30 mVrms(500 MHz to 6 GHz). 1 GHz：≧30 mVrms(10 MHz to 1 GHz). 10 MHz & Period：≧15 mV rms.( 10 Hz to 10 MHz )
Features
- Overload ProtectionSensitivity set to -20 dB position) 6 GHz：≦300 mVrms(500 MHz to 1.5 GHz) ≦4 Vrms(1.6 GHz to 6 GHz) 1 GHz：≦4 V rms 10 MHz ,Period：≦15 Vrms Clock width & Duty(工作週期)：3Vpp ~ 5 Vpp
- Over-input ( Max. signal will not hurt the circuit6.0 GHz & 1 GHz range：Max. 4 V rms. 10 MHz & Period,Clock Width & Duty Range： Max. 15 V rms.
- 時基穩定度對應溫度1 PPM (- 20 to 70 ℃).
- Frequency± ( 2 PPM + 1 d ) at 23± 5 ℃
- Accuracy± ( 3 % reading + 20d ) at 23± 5 ℃
- Time Base circuit20 MHz, TCXO (temperature compensated crystal oscillator).
- Input Connector6 GHz range : N coaxial connector. 1 GHz range : N coaxial connector. 10 MHz & Period range : BNC connector.
- Data Logging自動：1秒至3600秒@採樣時間可以設定為1秒，但記憶體資料可能會遺失。
- Data error no.≦ 0.1 % no. Of total saved data typically.
- Memory CardSD memory card. 1 GB to 256 GB.
- Advanced settingSet clock time ( Year/Month/Date, Hour/Minute/ Second ) * Set sampling time * Auto power OFF management * Set beep Sound ON/OFF * Decimal point of SD card setting * SD memory card Format
- Data HoldFreeze the display reading.
- Memory RecallMaximum & Minimum value.
- Sampling Time of displayApprox. 1 second.
- Data Transmission* Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.
Attributes
- Operating Temperature0 to 50 ℃ ( 32 to 122 ℉ ).
- Operating HumidityLess than 80 % R.H.
- Power Supply(-20 dB position ) 6 GHz : Approx. DC 310 mA 1 GHz : Approx.DC 220 mA. 10 MHz & Period range : Approx. DC 150 mA.
- AC Adapter Power InputOptional, Linear AC to 9V DC , 800 mA rating, central positive for socket.
- Dimensions295 x 236 x 98 mm ( 11.6 x 9.3 x 3.9 inch ).
- Weight1465 g/3.23 LB (including battery)
- AccessoryPB-21 : Direct probe with BNC connector & alligator clip pairs, available for 10 MHz range BB-22 : Direct probe with double BNC connector, available for 100 MHz & 10 MHz range. NN-23 : Direct probe with double N coaxial connector, available for 1000, 6000 MHz range. NB-24 : N coaxial connector to BNC connector adapter. UPCB-2 : Isolated RS232 cable. AC-AA110V9 : Linear AC to 9V DC , 800 mA rating AC-AA220V9 : Linear AC to 9V DC , 800 mA rating
