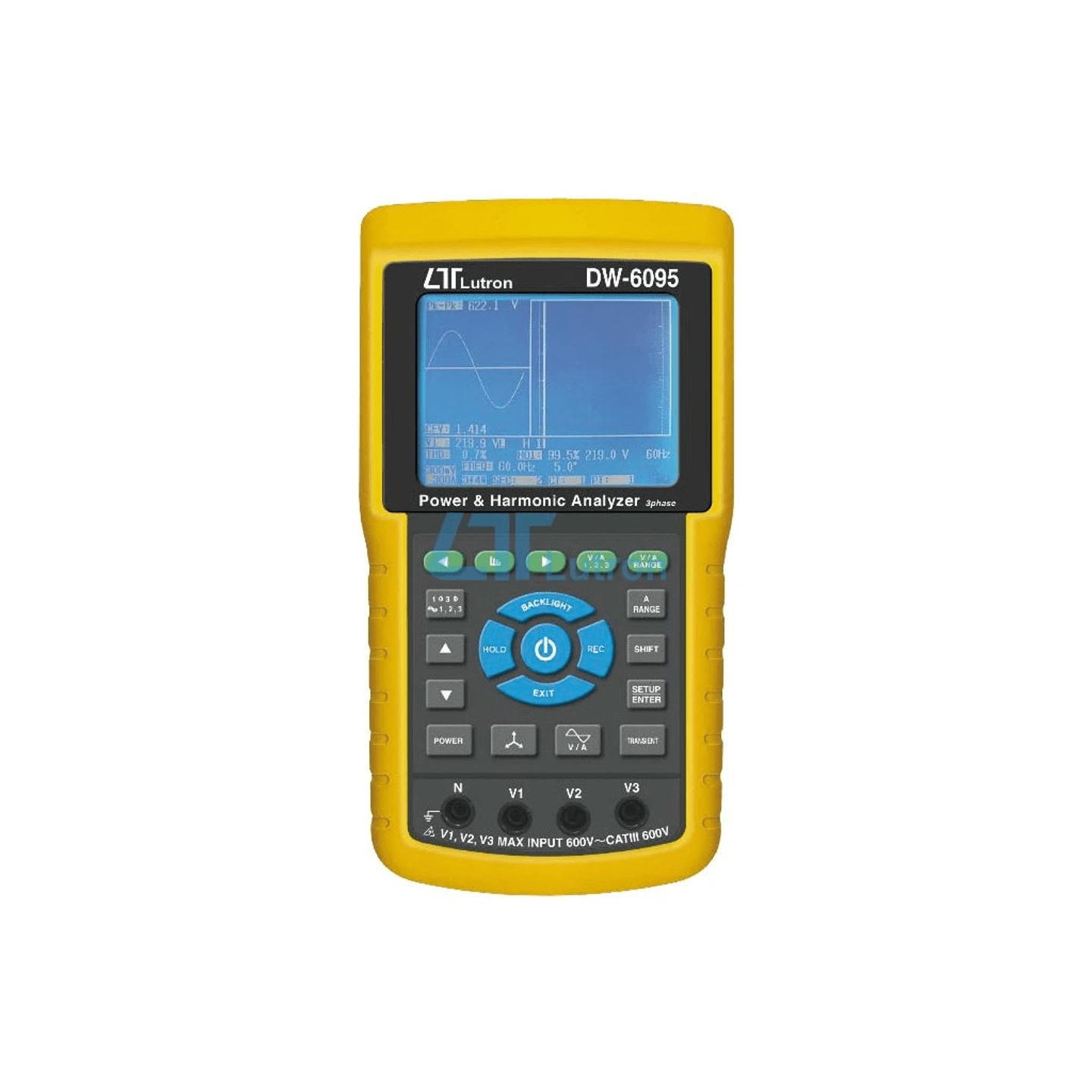

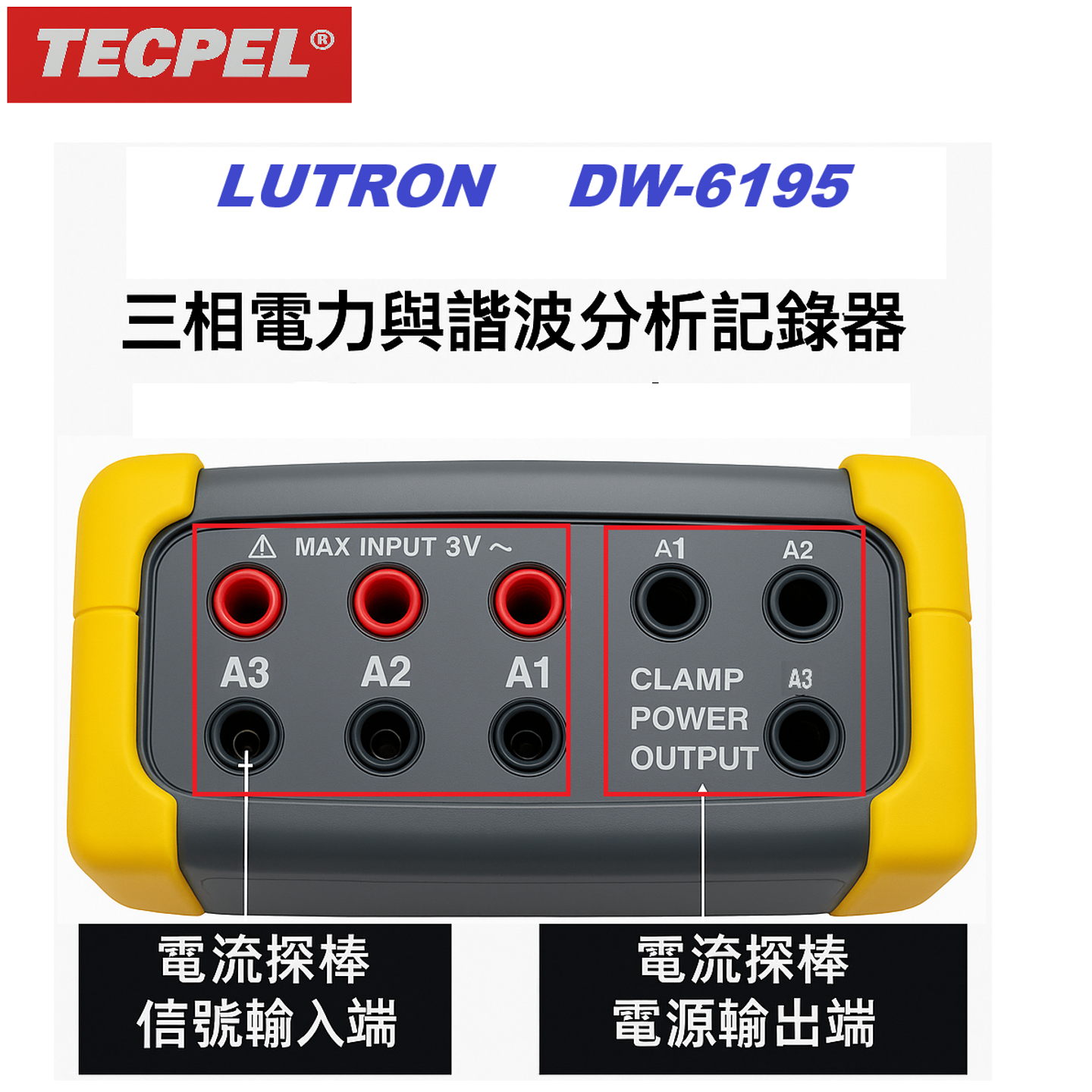

3 Phase Power and Harmonic Analyzer

This analyzer provides true RMS voltage and current measurements and offers detailed harmonic analysis up to the 50th order, ideal for power quality monitoring, industrial energy audits, and electrical system troubleshooting. Key Features Comprehensive Multi-System Compatibility Supports various power configurations (1P/2W, 1P/3W, 3P/3W, 3P/4W) with accurate real-time analysis. Harmonic and THD Analysis Displays waveform, harmonics (1–50th order), and Total Harmonic Distortion (THD) for both voltage and current. Real-Time Data Logging with SD Card Built-in SD memory card recorder (2–7200 seconds sampling interval) stores all measured data with time and date stamps. Easily download data to Excel—no special software required. Multiple Interface Options Equipped with RS232 and USB outputs for PC connectivity. Compatible with optional data acquisition software (SW-U811). High-Accuracy Measurement Voltage: 10V to 600V (±0.5% + 0.5V) Current: Up to 6000A with compatible clamp probes Power: KW, KVA, KVAR with ±1.2% system accuracy Power Factor: 0.00 to 1.00 (±0.04) Frequency: 45 to 65 Hz (±0.1 Hz) True RMS Measurement Reliable readings even with non-sinusoidal waveforms. Comprehensive Power Data Measure and record active, reactive, and apparent power (KW, KVAR, KVA), energy (KWH, KVARH, KVAH), and power factor (PF, PFH). Graphic Display Brilliant TFT LCD (320×240 pixels) with backlight for clear waveform and phase diagram visualization.
