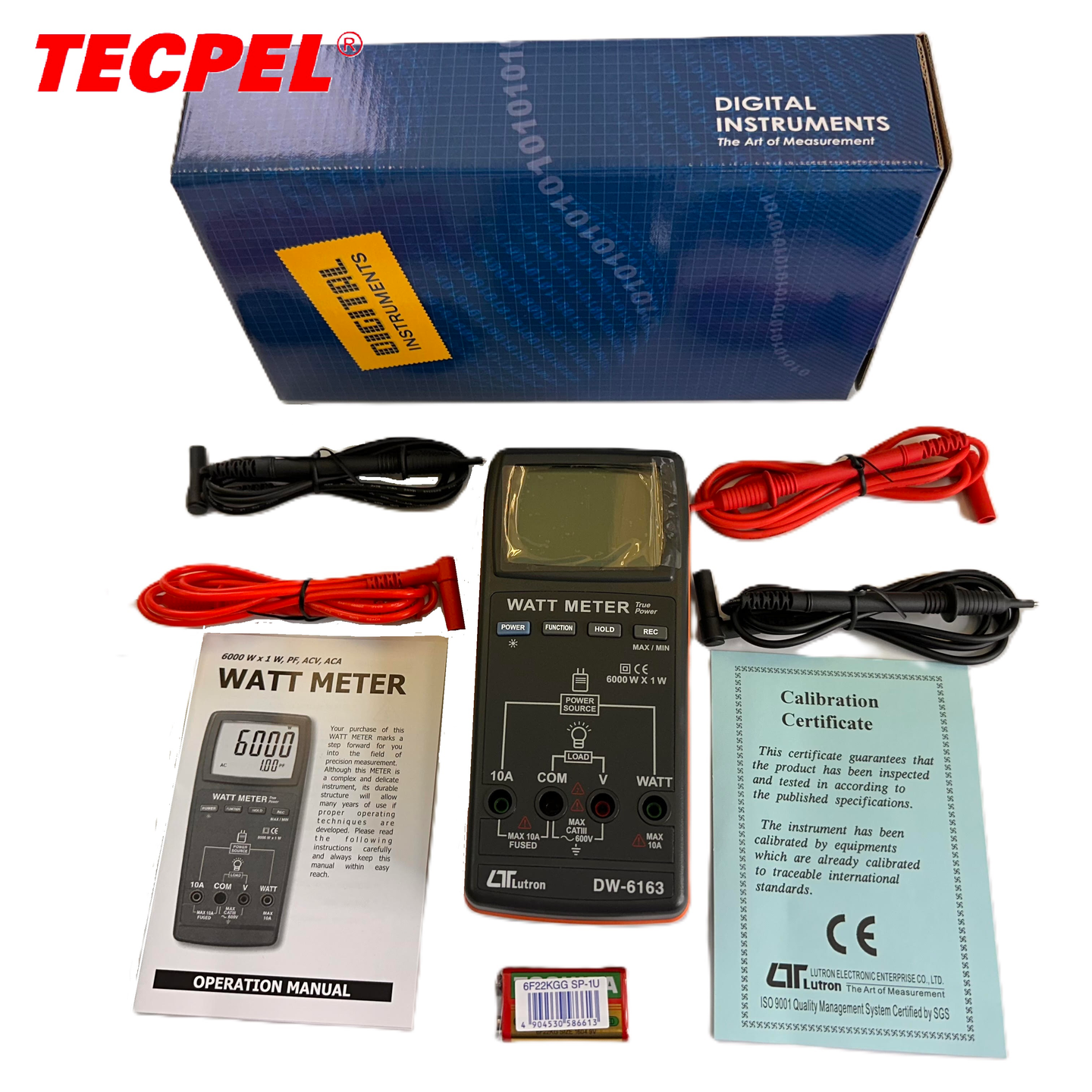

Watt Meter
Brand
LUTRON
|
Model
DW-6163
|
🇹🇼 Taiwan
The DW-6163 Watt Meter is a reliable partner in electrical testing, suitable for measuring real power, true RMS, and power factor. Its precise design and feature-rich interface support various operational needs.
Exceptional Features of the DW-6163:
1. True Power Measurement: Measures true power up to 6000 W with a resolution of 1 W.
2. True RMS Measurement: Provides true RMS readings for AC voltage (ACV) and AC current (ACA).
3. Power Factor Measurement: Measures power factor from 0.01 to 1.00 with a resolution of 0.01.
4. Data Hold and Record: Features data hold and maximum/minimum value recording for convenience.
5. RS232/USB Interface: Allows for data transfer to a PC using RS232 or USB interface.
Out of Stock
Views: 0
Description
The DW-6163 by Lutron is a watt meter designed for multi-functional power measurement needs, providing high precision and reliability. Its extensive measurement range and rich interfaces make it an ideal choice for electrical testing and industrial operations.
Product Overview
Achieve Precision with a Smart and Versatile Watt Meter
The DW-6163 Watt Meter offers accurate and reliable measurements with a professional and compact design, making it an essential tool for various applications in electrical testing, industrial environments, and maintenance.
Specifications
- Measuring RangeWatt (Real Power): 0 to 6000 W
- Resolution1 W
- Accuracy±(1% + 5 W)
- AC Voltage0 to 600 V ±0.3% + 0.3 V
- AC Current0 to 10.00 A ±0.3% + 0.03 A
- Power Factor (PF)0.01 to 1.00 ±1% + 2d
Features
- Real Power Measurementyes
- True RMSyes
- Data Holdyes
- Max/Minyes
- Interfaceyes
Attributes
- DisplayLarge LCD screen, dual-value display
- Dimensions190 x 88 x 40 mm
- Weight398 g
- Operating Temperature0 to 50°C
- Power SupplyDC 9V battery or AC to DC 9V adapter
