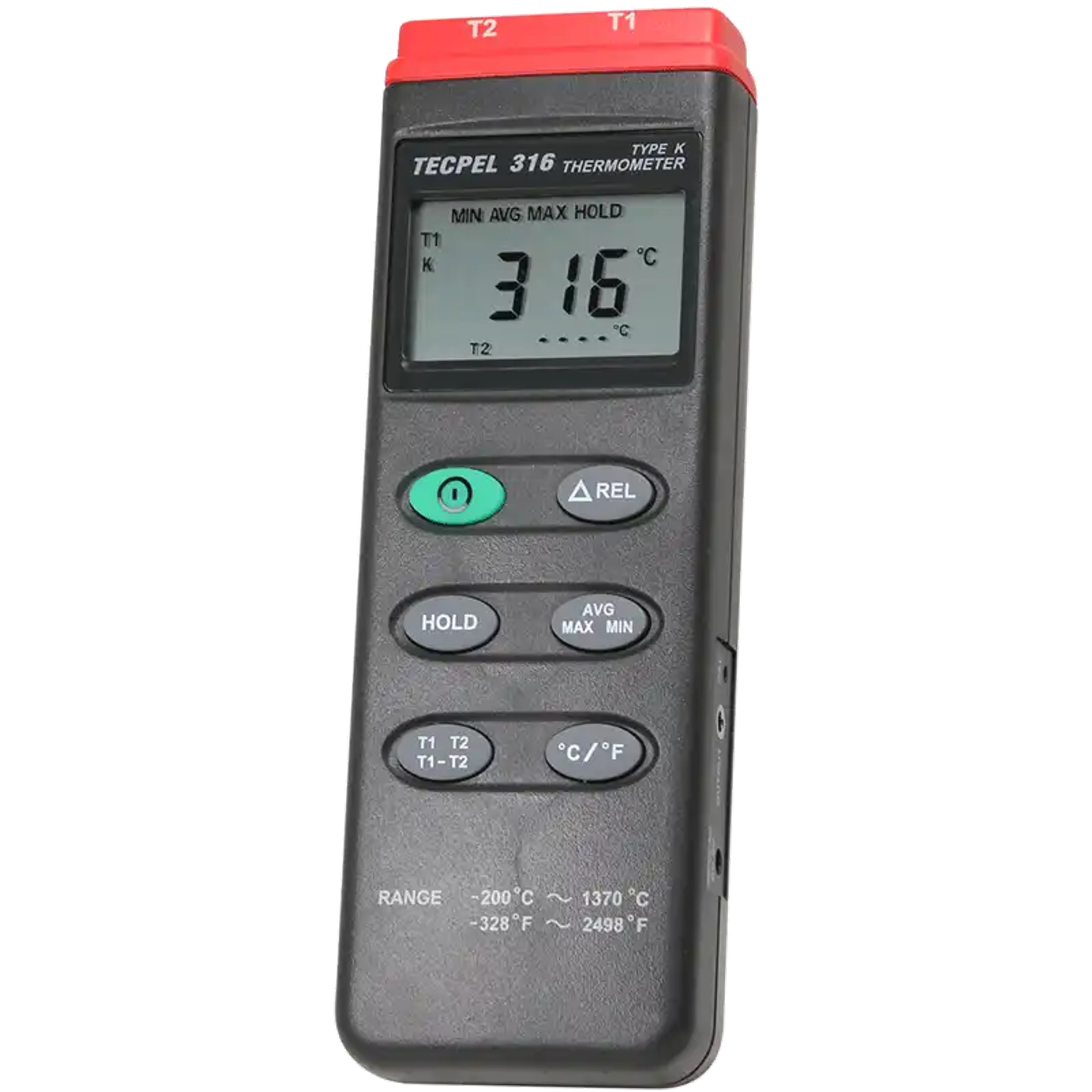

K-type Thermocouple Thermometer
Brand
TECPEL
|
Model
DTM-316
• Dual input design for measuring two temperature sources simultaneously
• Suitable for various thermocouple probes
• RS-232 data transmission function
• Measurement range: -200~1300°C (-328~2498°F)
• Accuracy: ±(0.5% + 1°C)
• Auto power off: 30 minutes
Price
NT$ 2,625
Out of Stock
Views: 1
Description
The DTM-316 K-type thermocouple thermometer is a high-performance device that allows simultaneous measurement of two different temperature sources for comparison. It is suitable for a wide range of applications, including oil, water, and ambient temperature measurement. The instrument supports various types of thermocouple probes and features RS-232 data transmission for easy data logging and analysis.
Specifications
- Temperature Range-200 ~ 1,300 °C (-328 ~ 2,498 °F)
- Accuracy±(0.5% + 1 °C)
- Resolution0.1 °C / 1 °C (above 200 °C)
- Sensor TypeK-Type thermocouple
- Sampling Rate400 ms
- Response TimeDepends on sensor
Features
- Temperature Unit Switching°C / °F
- Auto Power Off30 minutes
- Dual Channel Input✓
- RS-232 Data Transmission✓
Attributes
- Operating Temperature0 ~ 50 °C / <90 %RH non-condensing
- Storage Temperature-10 ~ 40 °C / <70 %RH non-condensing
- Altitude LimitationBelow 1,000 meters
- Power Supply9V battery (optional DC 9V adapter)
- Dimensions147 × 70 × 39 mm
- WeightApprox. 185g
