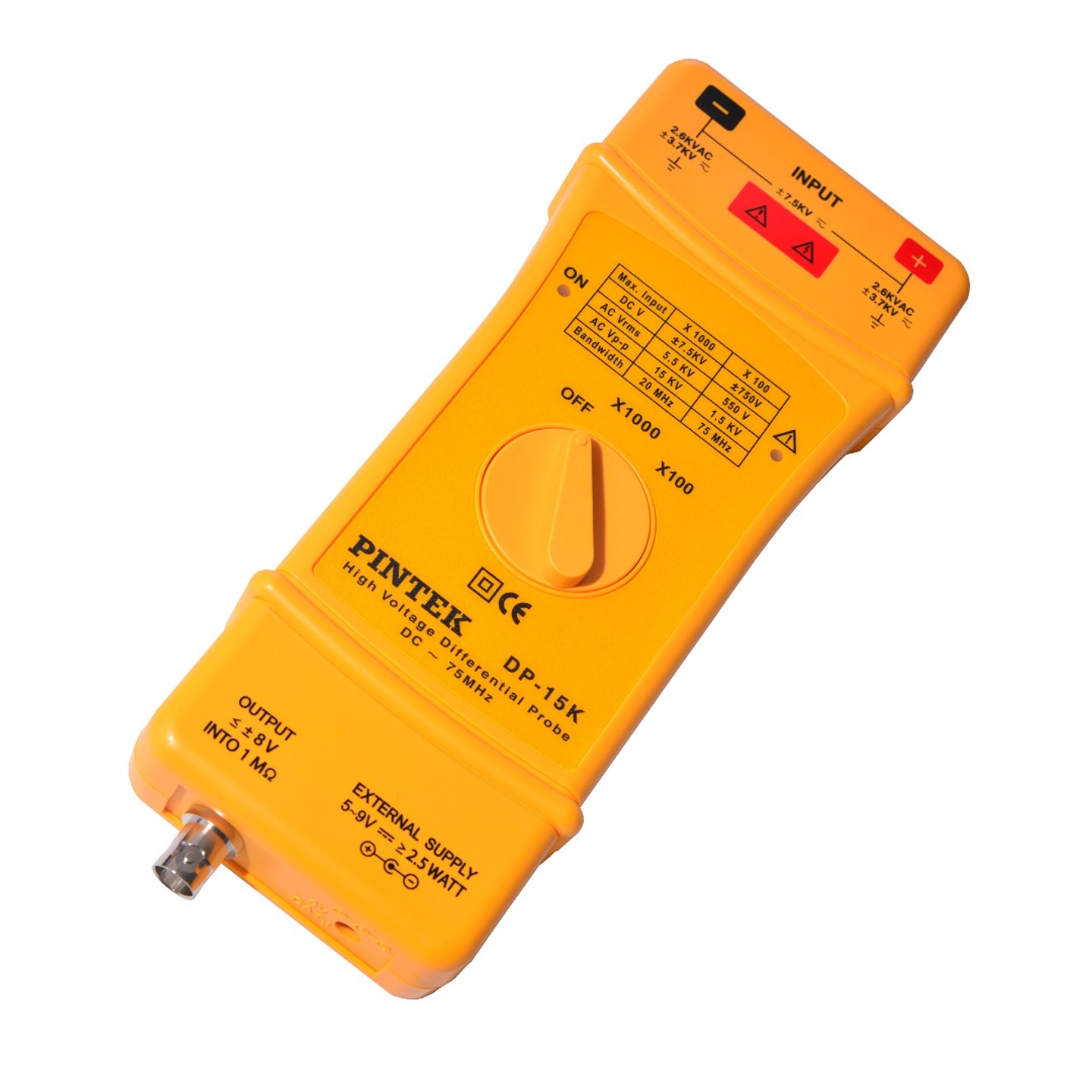

Differential Probe

Brand TECPEL | Model DP-15K | 🇹🇼 Taiwan
Differential Probe
The DP-15K is a high-precision differential voltage measurement probe with high common-mode rejection and low noise characteristics, suitable for testing needs in various complex electrical environments. - Attenuation Ratio: X100, X1000 - Output Voltage: ≦ ± 8 V - Volume: ≦ 1.0m Vrms - Power Supply: External DC 5 V / 2 A Adapter
Out of Stock
Views: 0

Description

The DP-15K differential probe is designed for high-precision voltage measurements, particularly suitable for industrial environments and professional testing applications. With its high common-mode rejection ratio and low noise characteristics, it operates reliably in various complex electrical environments, providing accurate and dependable measurement results. Whether for electronic design validation or troubleshooting, the DP-15K is an ideal choice for test engineers.

Specifications

  • 輸入R(每個輸入)27.2 MΩ ± 2%
  • 輸入C(每個輸入)3 PF ± 0.5%
  • 最大操作電壓7.5 KV DC 或 15 KVp-p
  • 頻寬75 MHz (X100) / 20 MHz (X1000)
  • 精確度≦ ± 2%
  • 共模抑制比 (CMRR)60 Hz: > 10000 : 1, 100 Hz: > 1000 : 1, 1 MHz: > 300 : 1

Features

  • 衰減比例X100, X1000
  • 輸出電壓≦ ± 8 V
  • 音量≦ 1.0m Vrms
  • 電源外部 DC 5 V / 2 A 適配器

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C, Humidity below 70%RH
  • Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH
  • AccessoryManual, Power Adapter
