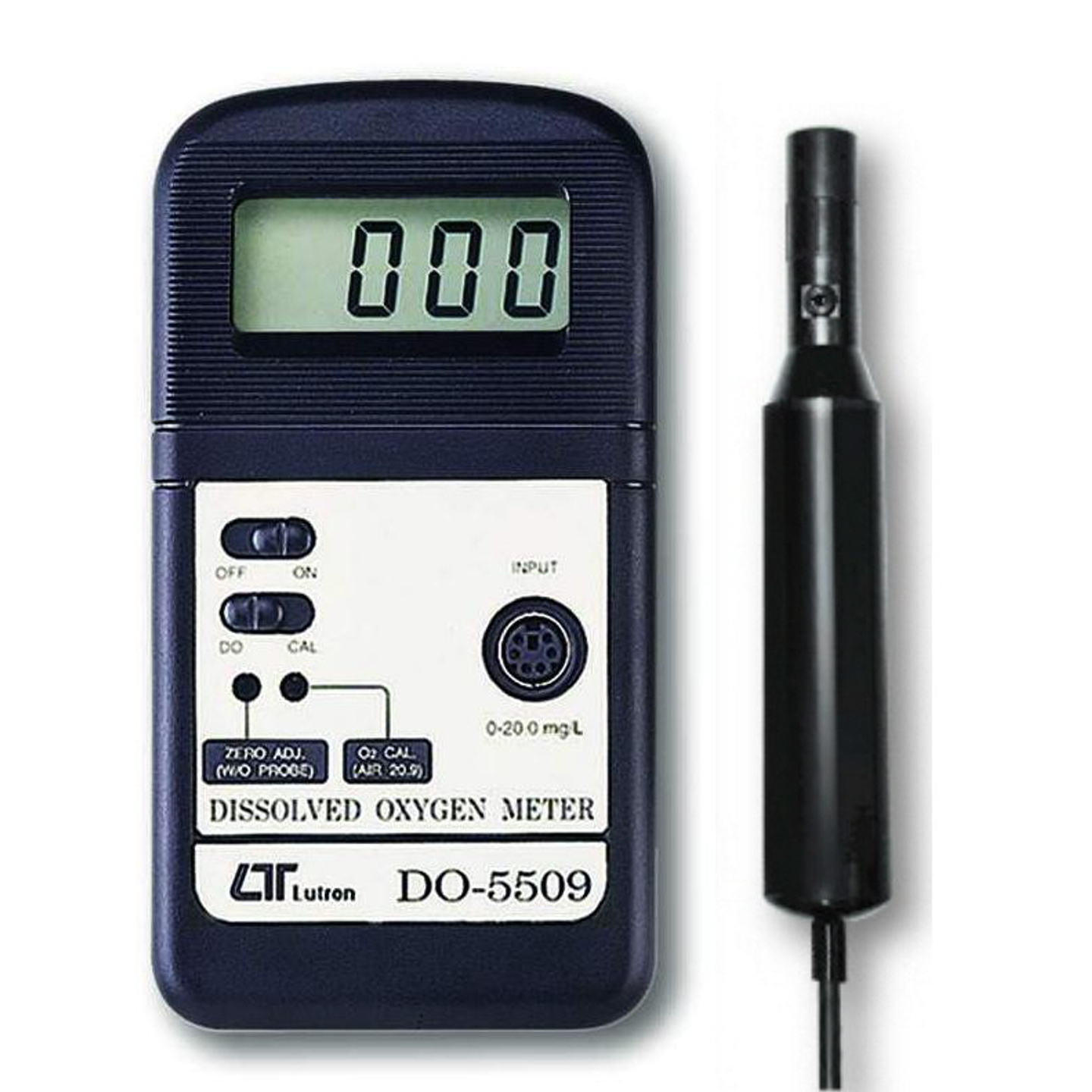

Hand-Held Disolved Oxygen Meter
Brand
LUTRON
|
Model
DO-5509
|
🇹🇼 Taiwan
This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. the sensor which serves for precise Dissolved Oxygen(DO), Oxygen in air(O2), Temp. measurement. Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratories, Water conditioning, the Mining industry, Schools and colleges, and Quality control.
Price
NT$ 6,580
Out of Stock
Views: 0
Description
DO-5509 dissolved oxygen meter is used to measure the oxygen concentration in water. Dissolved Oxygen (DO) DO-5509 dissolved oxygen meter uses an electrode probe with temperature compensation as a sensor. The oxygen meter can self-calibrate according to the oxygen concentration value of normal atmospheric air. The sensor head of the dissolved oxygen meter will attenuate after being used for a while. If the oxygen concentration value of the standard atmosphere cannot be corrected, you can add electrolyte and replace the sensor head to repair DO -5509 Dissolved Oxygen Meter has a zero reset function, the user can adjust it to zero after using it for a period of time, and after zeroing, an atmospheric calibration must be done by the above method
DO-5509 dissolved oxygen meter: suitable for measuring oxygen concentration on general flat ground, fresh water, and air.
Specifications
- DisplayDisplay 3.5-digit liquid crystal display, character height 13mm (0.5")
- Measuring RangeDissolved oxygen 0~20.0Mg/L
- Resolution0.1 mg/L
- Accuracy±0.4 mg/L
- Temperature compensationAutomatic temperature compensation 0~40℃
- Panel adjustment knobZero adjustment and correction adjustment
- Operating TemperatureHumidity must be lower than 80﹪R.H. (relative humidity).
Features
- TEMPERATURE COMPENSATION (ATC)Automatic temperature compensation 0~40℃
- Temperature Unit Selectable°C / °F
Attributes
- Operating Temperature0~50°C / lower than 80%RH (Without dew)
- Storage Temperature-10~50°C / lower than 80%RH (Without dew)
- Elevation LimitationLower than 1,000 meters
- Power SupplyWorking power supply: DC 9 volt battery, 006P Current consumption: approximately DC 3.5mA
- DimensionsHost 180*72*32mm , Measuring stick 190mm*28mm
- WeightApprox. 350(g) Without Battery
- AccessoryDissolved oxygen measuring stick (OXPB-09N) 1, 1 operating manual Dissolved oxygen probe film cup spare parts (OXHD-04) 2 pieces One bottle of measuring rod replenishing electrolyte (OXEL-03)
